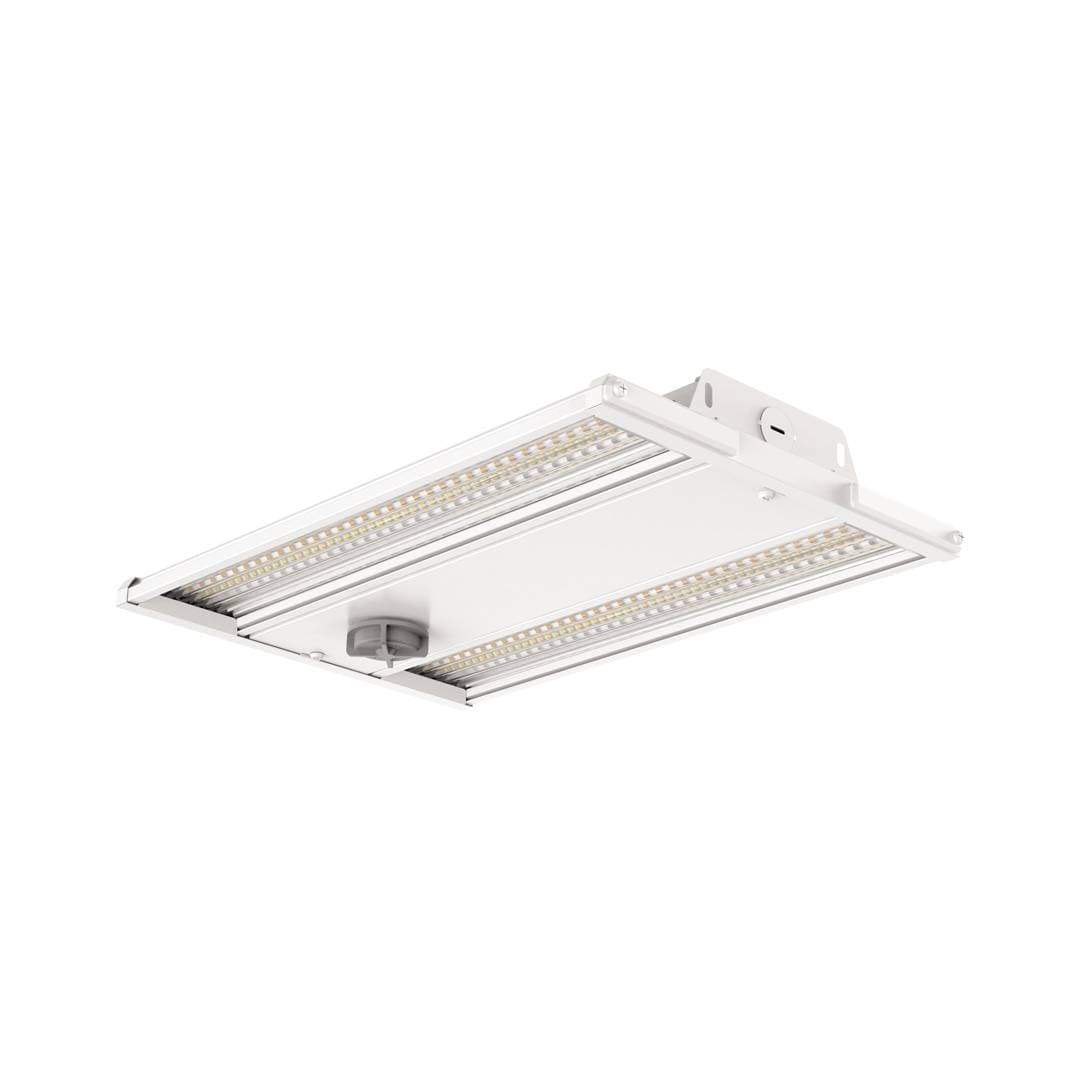

RackBay CSP

Colour Switchable between 3000K and 4000K
Wattage Switchable from 60W to 240W
High efficacy of 150lm/W
110x55° beam angle optimised to light racking aisles
IK07 for high protection against impact
Choice of PIR, microwave and daylight control options saves energy and takes just seconds to fit
Mounting options for jack chain suspension, M10 or M20 fixing to busbar and surface mount
Compact and lightweight, our product can be held in one hand and installed by a single person
Quick access to LiFePO4 battery compartment for simple replacement
Removeable driver for easy maintenance
For emergency version use Bolt-on converter's

Dimmable Option

Wattage / Lumens

Code	CRI	IP Rating	Beam Angle	Wattage Range	CCT Range	Lumens Range	Width	Length	Colour / Finish	Sensor Option	Dimmable Option	Emergency Option	Mounting Type	Body Material
LBR1D	CRI>80	IP20	110x55°	100W	3000K / 4000K	8700-15000	65	366	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR2D	CRI>80	IP20	110x55°	200W	3000K / 4000K	22400-30000	65	584	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR3D	CRI>80	IP20	110x55°	240W	3000K / 4000K	28000-36000	65	902	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR1V	CRI>80	IP20	110x55°	60-80-100W	3000K / 4000K	8700-15000	65	366	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR2V	CRI>80	IP20	110x55°	160-180-200W	3000K / 4000K	22400-30000	65	584	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR3V	CRI>80	IP20	110x55°	200-220-240W	3000K / 4000K	28000-36000	65	902	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC

Accessories

Find the perfect product you are looking for.

Motion sensor with daylight threshold switch

Daylight harvesting sensor with photocell

Passive infra-red motion sensor with daylight harvesting photocell

Reduces mounting height by 1.5 metres

Emergency conversion pack for Springbok Lite and Area Bay

Universal Remote control for Microwave sensor

Dimmable Option

Wattage / Lumens

Code	CRI	IP Rating	Beam Angle	Wattage Range	CCT Range	Lumens Range	Width	Length	Colour / Finish	Sensor Option	Dimmable Option	Emergency Option	Mounting Type	Body Material
LBR1D	CRI>80	IP20	110x55°	100W	3000K / 4000K	8700-15000	65	366	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR2D	CRI>80	IP20	110x55°	200W	3000K / 4000K	22400-30000	65	584	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR3D	CRI>80	IP20	110x55°	240W	3000K / 4000K	28000-36000	65	902	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	DALI-2	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR1V	CRI>80	IP20	110x55°	60-80-100W	3000K / 4000K	8700-15000	65	366	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR2V	CRI>80	IP20	110x55°	160-180-200W	3000K / 4000K	22400-30000	65	584	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
LBR3V	CRI>80	IP20	110x55°	200-220-240W	3000K / 4000K	28000-36000	65	902	White	Daylight\|On-Off\|Photocell\|PIR\|Step-Dim	0-10V	Manual-Test\|Self-Test	Ceiling\|Suspended	Aluminium\|PC
