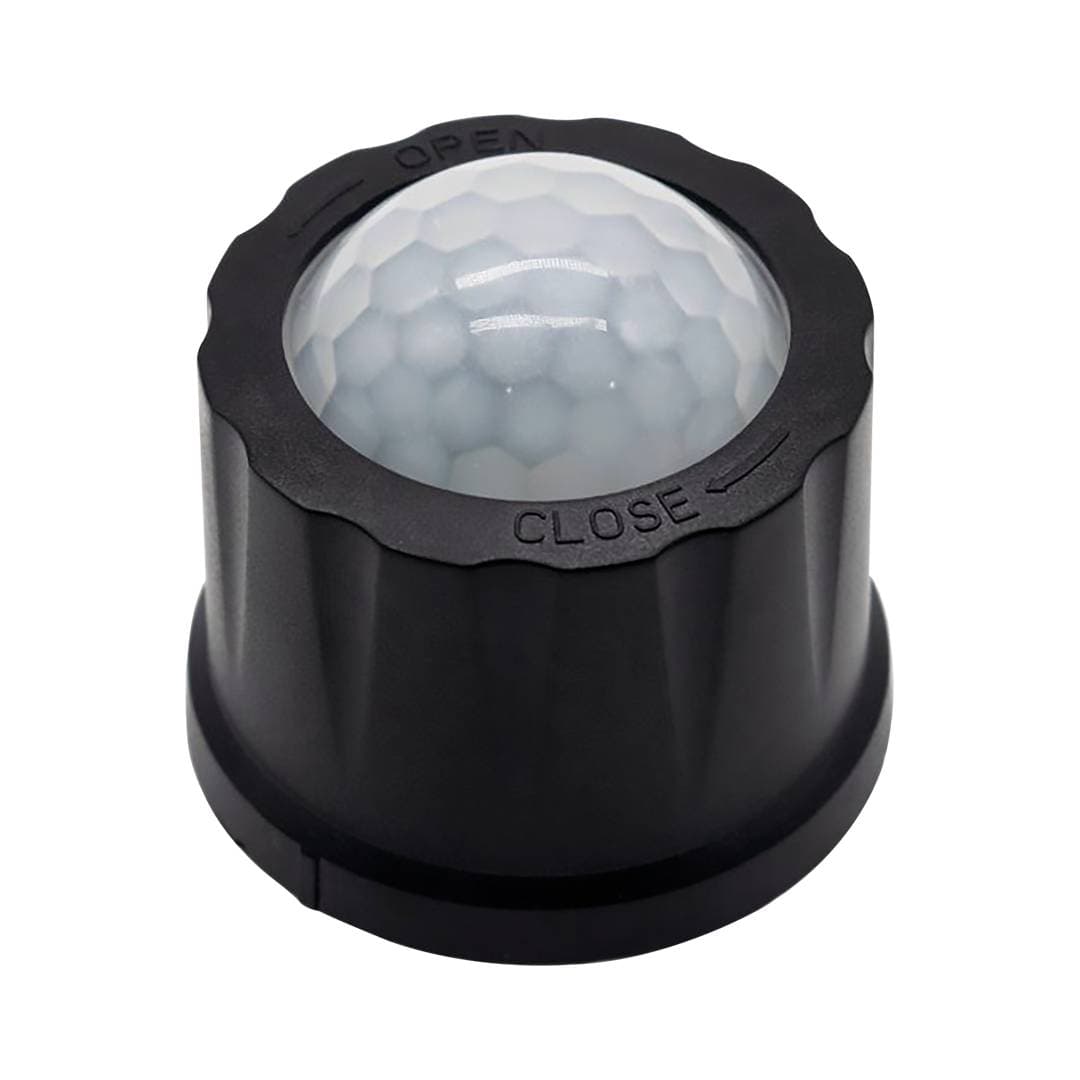

PIR & Daylight Sensor

Passive infra-red (PIR) motion sensor with daylight threshold switch and daylight harvesting to dim the luminaire in response to changes in natural daylight levels. For use with the Area Bay, Flex bay, Tri Bay and Rack Bay. IP65 Rated. Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga Book 18 socket for a typical installation height 8-12m.

Typical installation height 8-12m
Use remote controller UNREMOTEMWS to commission
Plugs into the centre of the Area Bay luminaire using the Zhaga socket
Only have the light turn on when a specific lux level is reached.
Light dims to a low level when there is inactivity

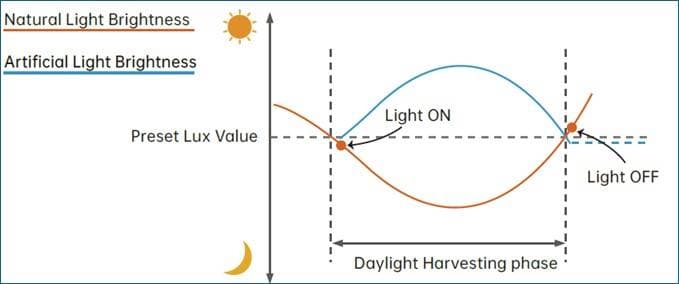

The light can adjust its brightness in response to changing natural daylight. Increased natural daylight = reduce light brightness and vice versa
Hold time Default is 5 seconds - Options 30s/1min/3min/5min/10min/20min/30min
Stand-by dimming level: Default is 10% Options - 20%/30%/50% Stand-by period: Default is 0 seconds - Options - 10s/30s/1min/5min/10min/30min/60min/∞
