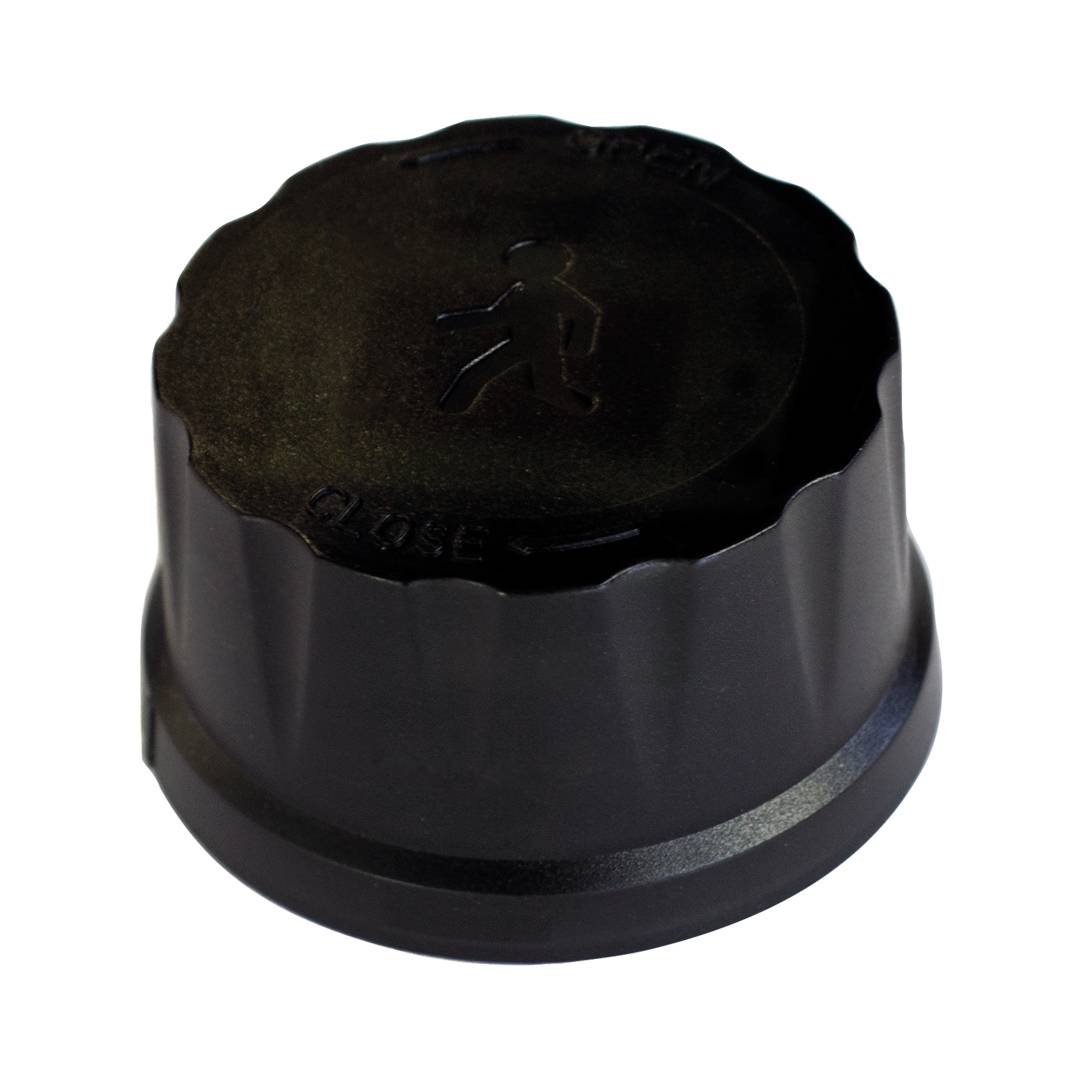

Microwave Sensor

Microwave motion sensor with daylight threshold switch for use with the Area Bay. IP65 Rated. Quick and easy to install, the sensor plugs into the centre of the luminaire using the Zhaga socket for a typical installation height 8-15m.

Plugs into the centre of the Area Bay luminaire using the Zhaga socket
Typical installation height 8-15m
Hold time Default is 5 seconds Options - 30s/1min/3min/5min/10min/20min/30min
Stand-by dimming level Default is 10% Options - 20%/30%/50%
Stand-by period Default is 0 seconds Options - 10s/30s/1min/5min/10min/30min
Daylight threshold Default is 'disable' Options - 2Lux/10Lux/30Lux/50lux 120Lux/200Lux/250Lux 300Lux/350Lux/400Lux
