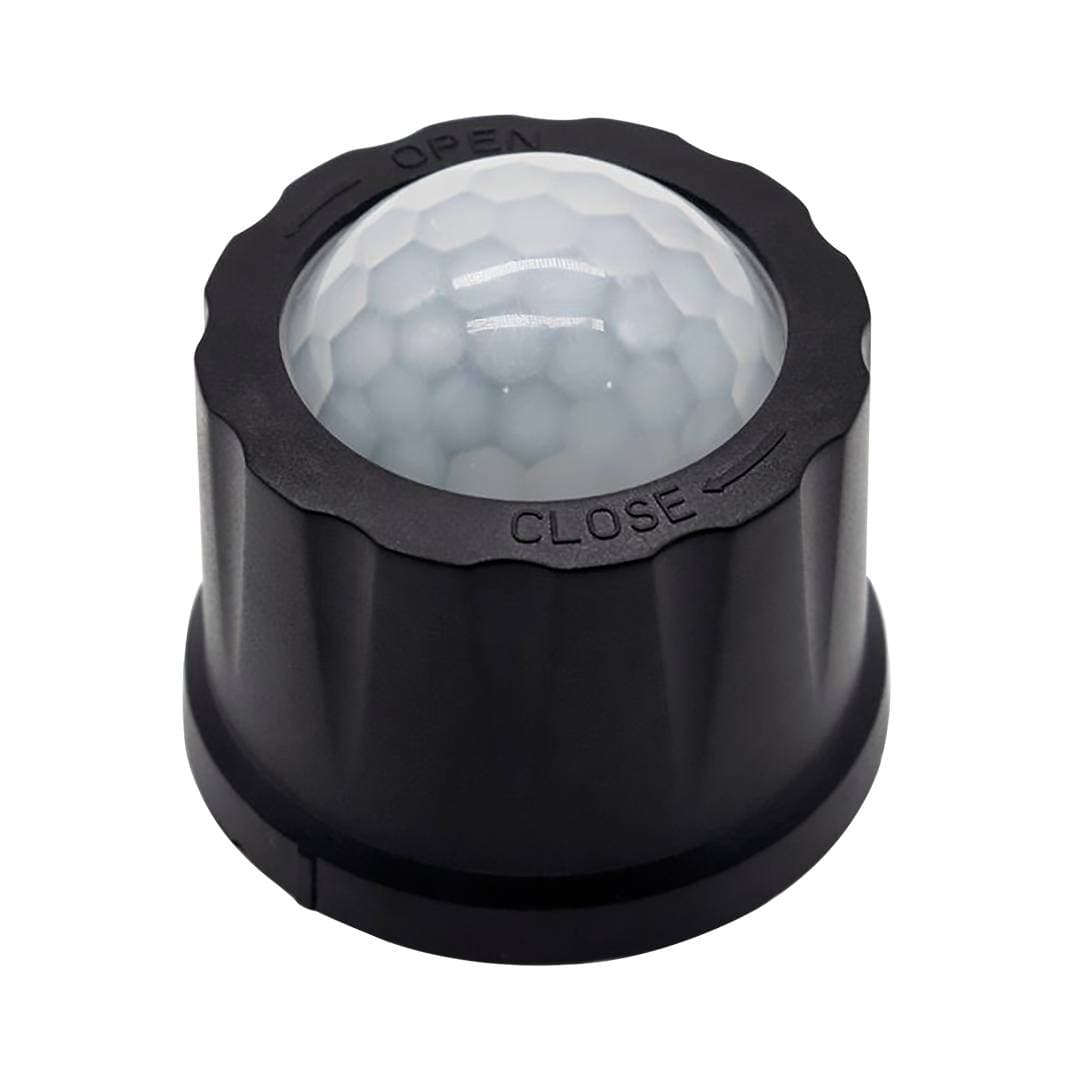

PIR Sensor

Typical installation height 8-12m
Use remote controller UNREMOTEMWS to commission
Plugs into the centre of the Area Bay luminaire using the Zhaga socket
Only have the light turn on when a specific lux level is reached.
Light dims to a low level when there is inactivity
Hold time Default is 5 seconds - Options 30s/1min/3min/5min/10min/20min/30min
Stand-by dimming level: Default is 10% Options - 20%/30%/50%
Stand-by period: Default is 0 seconds - Options - 10s/30s/1min/5min/10min/30min/60min/∞
Daylight threshold: Default is 'disable' - Options -2Lux/10Lux/30Lux/50lux120Lux/200Lux/250Lux300Lux/350Lux/400Lux
