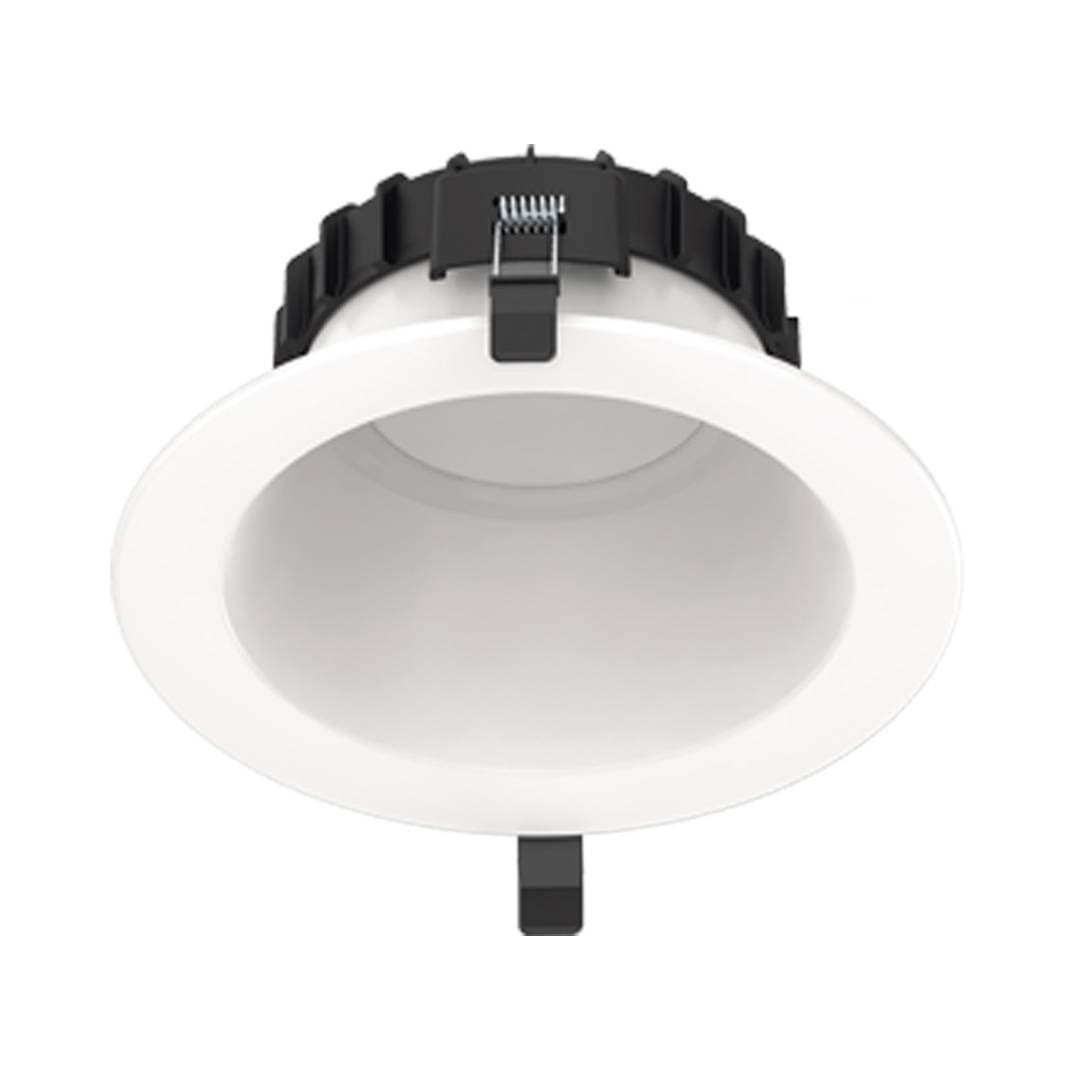

Thea Pro 165-200mm

Highly efficient 142 Llm/W ensures low running costs
IP65 protected as standard, suitable for bathroom zone 1
UGR19 compliant low glare lighting when insert is used
Circular economy design by Collingwood, enables the product to be dissembled quickly for easy upgrade of the LEDs and driver or recycling at end of life
TP(a) Thermoplastic
850° Glow Wire Test
2-part first/second fix connector available on request for easy maintenance
Thea Pro Suspension kit (THPSUSKITB or THPSUSKITW) is only suitable when used in conjunction with Thea Pro Surface kit (THP12SURKITW, THP34SURKITW, THP12SURKITB, THP34SURKITB)

Driver Included

Wattage / Lumens

Code	CRI	UGR	IP Rating	Dimmable Option	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Sensor Option	Emergency Option	Adjustability	Base Shape	Mounting Type
THP3N	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14W	4000K	2000	220	220	None	None	Not adjustable	Round	Frame Recessed
THP4N	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14-25W	4000K	2000 - 3500	220	220	None	None	Not adjustable	Round	Frame Recessed
THP3X	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14W	4000K	2000	220	220	None	None	Not adjustable	Round	Frame Recessed
THP4X	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14-25W	4000K	2000 - 3500	220	220	None	None	Not adjustable	Round	Frame Recessed

Accessories

Find the perfect product you are looking for.

Compatible with THP3 + THP4

42W CC Driver, IP20, 300-1050mA, Class II SELV Forward voltage range from 9 to 52Vdc

Emergency converter, Self-test & Manual-test switchable, maintained

Check out these projects that made the most of the Thea Pro 165-200mm.

Driver Included

Wattage / Lumens

Code	CRI	UGR	IP Rating	Dimmable Option	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Sensor Option	Emergency Option	Adjustability	Base Shape	Mounting Type
THP3N	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14W	4000K	2000	220	220	None	None	Not adjustable	Round	Frame Recessed
THP4N	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14-25W	4000K	2000 - 3500	220	220	None	None	Not adjustable	Round	Frame Recessed
THP3X	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14W	4000K	2000	220	220	None	None	Not adjustable	Round	Frame Recessed
THP4X	CRI>80	22	IP65 (from below) IP20 (from above)	None	165-200	ADC12 Aluminium Alloy\|PC\|PET	80°	White	14-25W	4000K	2000 - 3500	220	220	None	None	Not adjustable	Round	Frame Recessed
