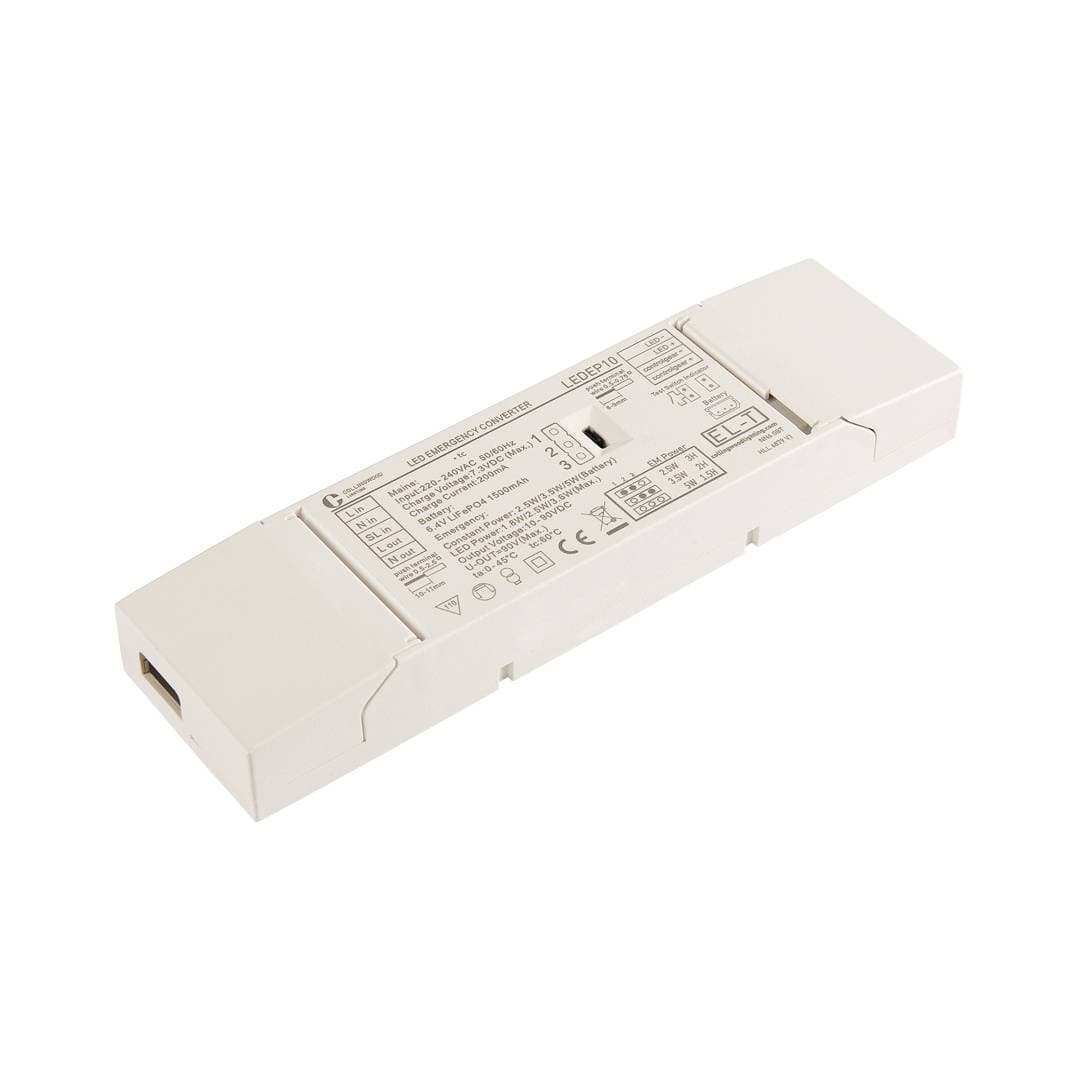

LEDEP10

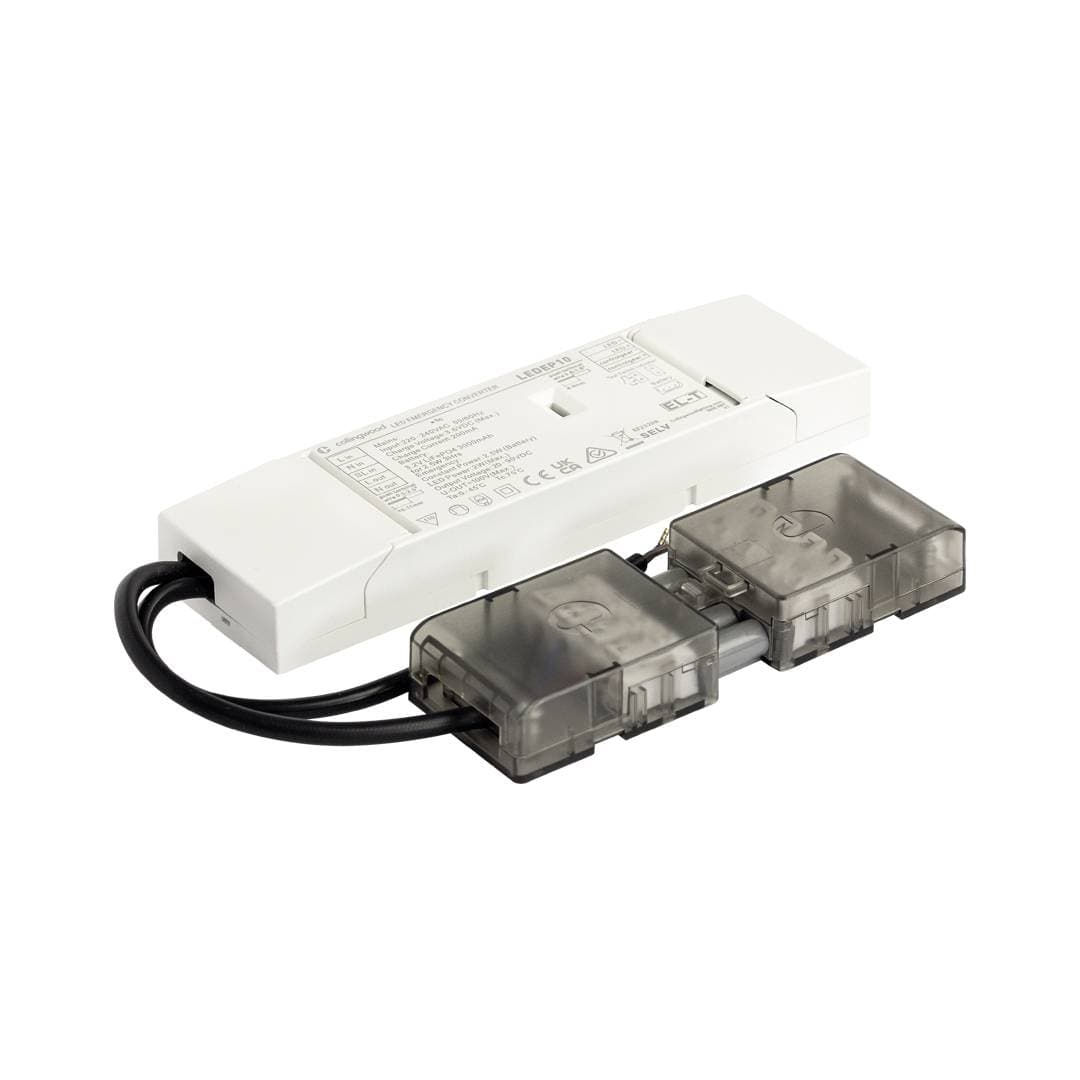

The LEDEP10 emergency pack enables the conversion of Collingwood LED panels, commercial and residential downlights for emergency operation. When connected, the LED indicates the emergency unit status by turning it green or red. In the event of a power failure, the luminaire light output will be dimmed down. for a minimum of three hours.For reduced time on site, the cables are connected by push-fit terminals and DC plug & play connectors.The LEDEP10 is compatible with the Solis panels, Thea commercial downlight, H2 Pro, H4 Pro and H5 downlights.

Self-test and Manual-test switchable
LiFePO4, provides long operational life
A minimum of 3 hours of emergency lighting
Built-in protection: - open circuit - over charging - over discharging - over temperature
Dual colour Green / Red LED status indicator
Supplied with a test button, whereby a battery duration test can be carried out at anytime
Synchronizes an automatic battery duration test every 6 months
Compatible with our Solis panels, Thea commercial downlights, H2 Pro, 1901 and H5 downlights, however this does not apply to trimless

Product Data

Code	Input	Insulation Coverable	Cut Out	Colour / Finish	Dimmable Option	Warranty	IP Rating	Downloads
LEDEP10	220-240V AC	No	18 (status LED) 7 (test button)	Matt White	None	5 years (extended)	IP20
