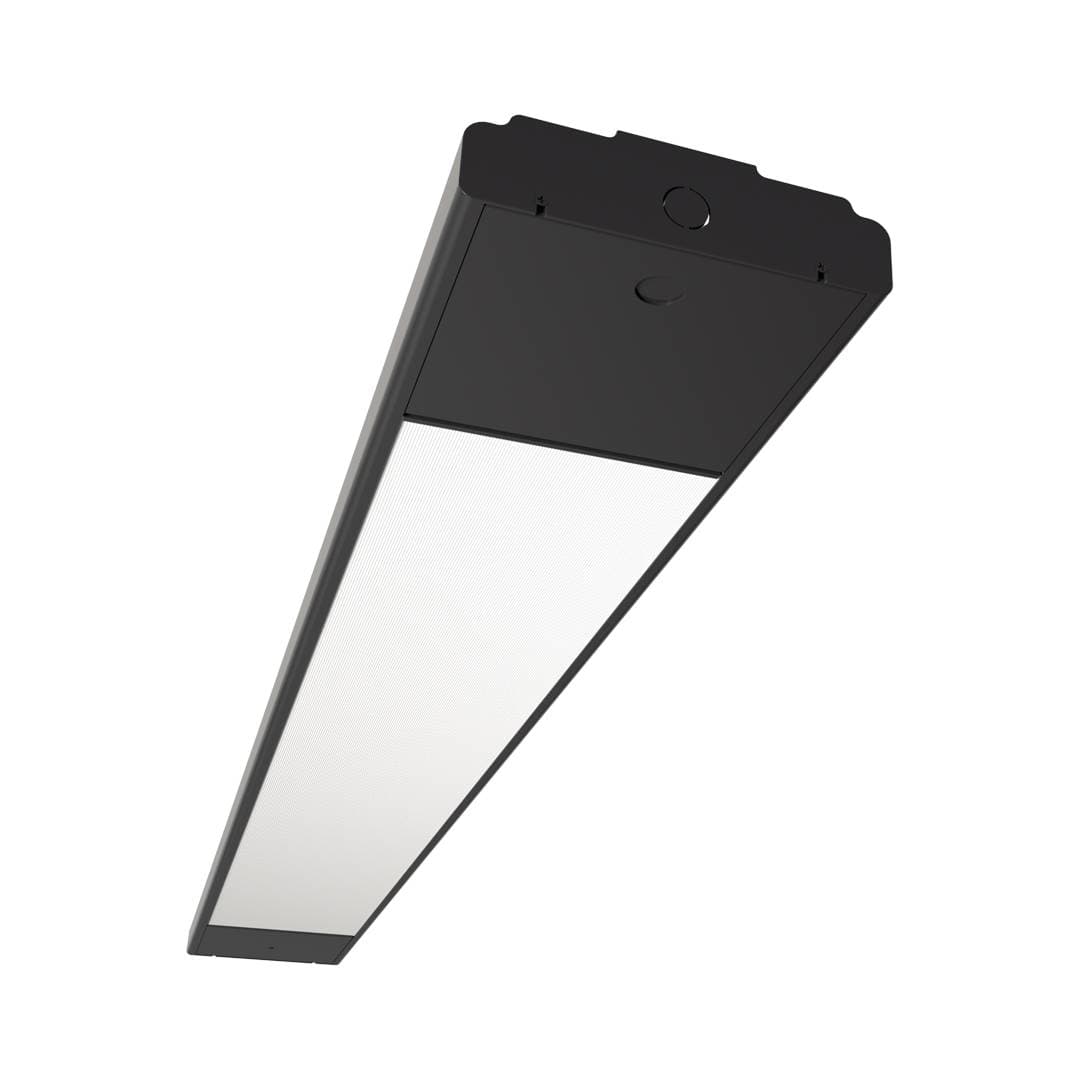

Versa Tile Black 1500mm

Slim depth of just 38mm
UGR19 for low glare
75% down / 25% up ratio uses light efficiently
Energy efficiant up to 100lm/W
Choice of White (RAL9003), Black (RAL9005) or Silver (RAL9006)
Suspend as an individual luminaire or (by custom request) connect together to make a continuous run
>10% uplight when surface mounted
Configurable using our unique VERSABox design to realise a range of lumen output, driver and sensor options
DALI-2 driver is switchable to enable lower lumen outputs
Supplied with suspension kit
DALI Dimmable Fitting with on-off PIR Sense

Emergency Option

Sensor Option

Dimmable Option

Code	CRI	UGR	IP Rating	Emergency Option	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length
VTB1N	CRI>80	19	IP20	None	None	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NEM	CRI>80	19	IP20	Self-Test	None	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NP	CRI>80	19	IP20	None	PIR	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1D	CRI>80	19	IP20	None	None	DALI-2\|PUSH-DIM	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DP	CRI>80	19	IP20	None	PIR	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DEM	CRI>80	19	IP20	Self-Test	None	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DPEM	CRI>80	19	IP20	Self-Test	PIR	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NPEM	CRI>80	19	IP20	Self-Test	PIR	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560

Accessories

Find the perfect product you are looking for.

Connect Joint Kit

Emergency Option

Sensor Option

Dimmable Option

Code	CRI	UGR	IP Rating	Emergency Option	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length
VTB1N	CRI>80	19	IP20	None	None	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NEM	CRI>80	19	IP20	Self-Test	None	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NP	CRI>80	19	IP20	None	PIR	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1D	CRI>80	19	IP20	None	None	DALI-2\|PUSH-DIM	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DP	CRI>80	19	IP20	None	PIR	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DEM	CRI>80	19	IP20	Self-Test	None	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1DPEM	CRI>80	19	IP20	Self-Test	PIR	DALI-2	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
VTB1NPEM	CRI>80	19	IP20	Self-Test	PIR	None	Aluminium\|PS	Ceiling\|Wall\|Suspended	80	Black	45W	4000K	4500	186	1,560
