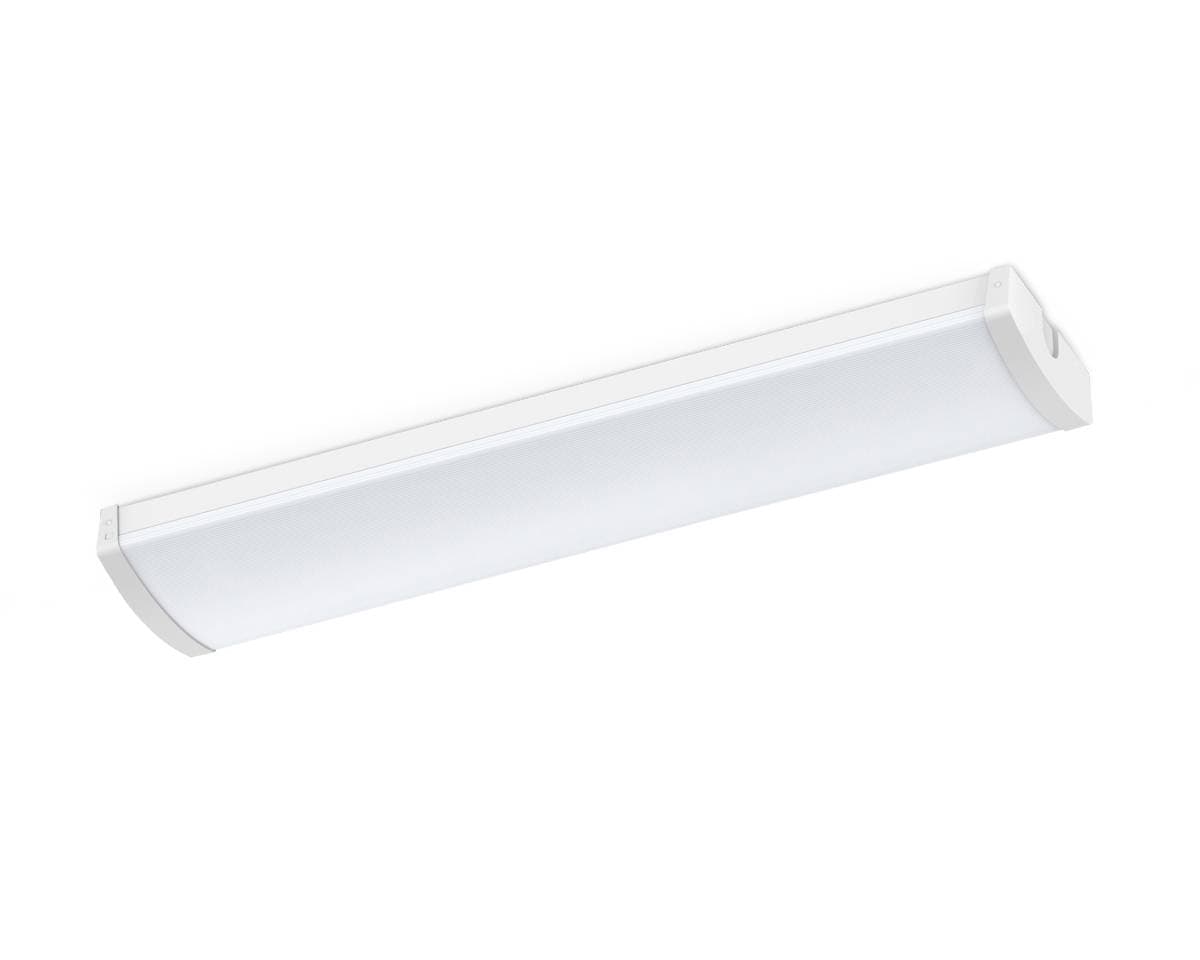

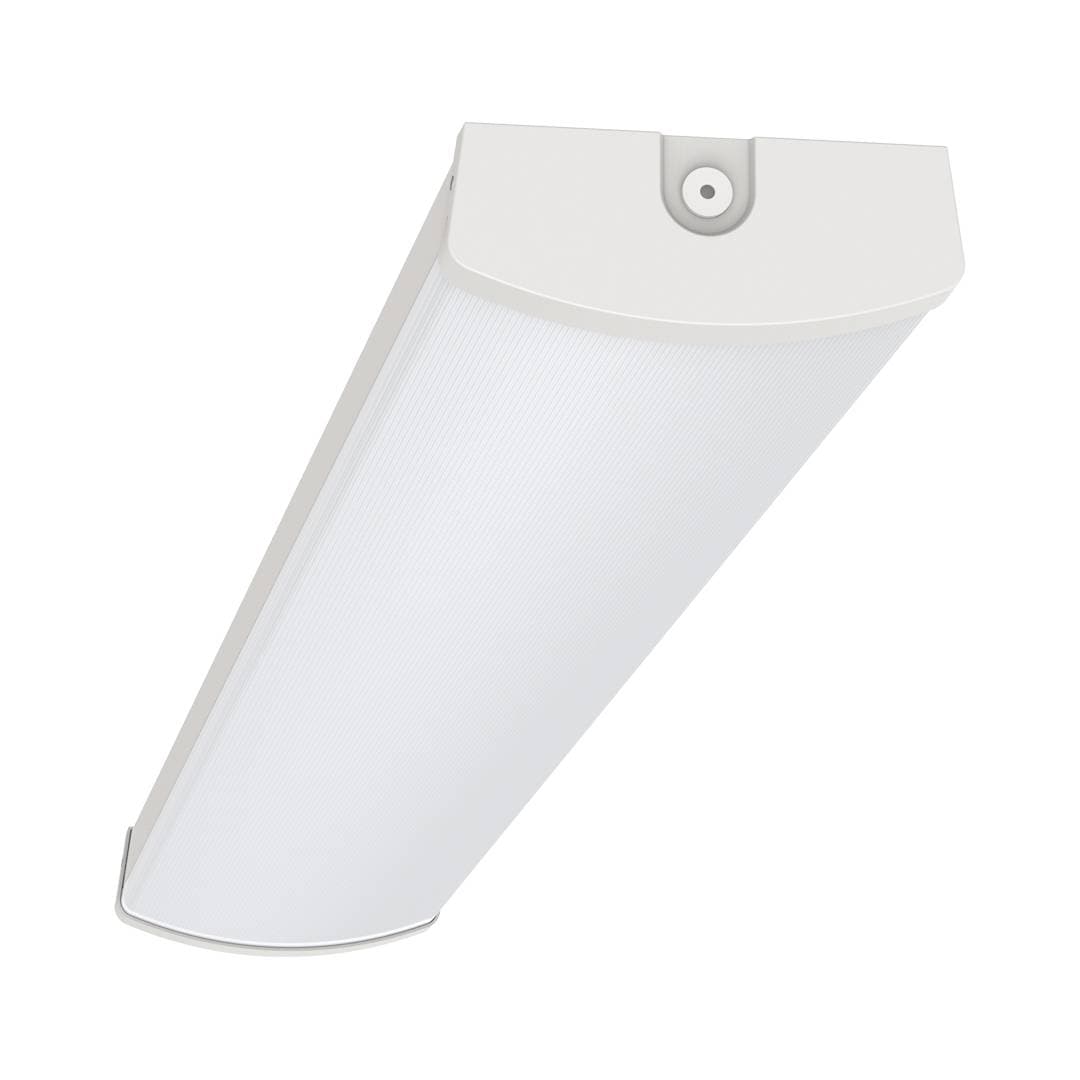

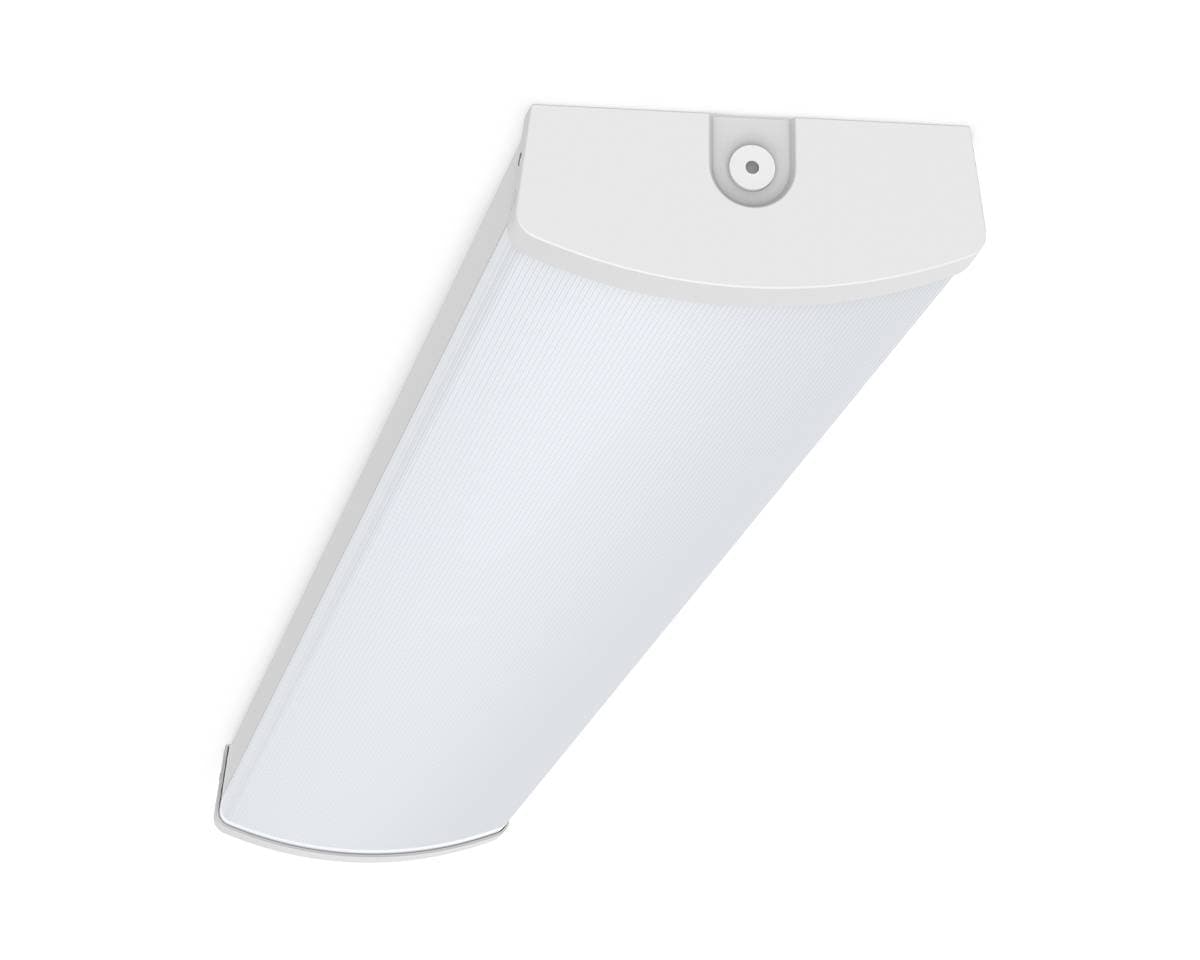

Uniform 4ft

Wattage switchable between 20W, 23W, 26W & 30W
Ultra-efficient up to 150 Llm/W
Quick and easy installation with Push-fit terminal
Outstanding uniform lit effect
70,000 hours L80 lifetime
IP44 rated allows the product to be used in a wide range of applications
Bolt-on range of lighting controls and emergency conversion packs to aid fast availability
RG0 (Risk Exempt) Photo-biological Risk
Suspension kit available (UNLSUS2M)

Emergency Option

Dimmable Option

Wattage / Lumens

Code	CRI	UGR	IP Rating	Emergency Option	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Base Shape
UNL4SN	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	None	None	None	Carbon Sheet Steel\|PC	Ceiling	120°	White	20-23-26-30W	4000K	2822-3383-3984-4500	207	1,200	Linear
UNL4SNE	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	Self-Test	None	None	Carbon Sheet Steel\|PC	Ceiling	120°	White	20-23-26-30W	4000K	2822-3383-3984-4500	207	1,200	Linear
UNL4SD	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	None	None	DALI-2\|PUSH-DIM	Carbon Sheet Steel\|PC	Ceiling	120°	White	30W	4000K	4500	207	1,200	Linear
UNL4SDE	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	Self-Test	None	DALI-2\|PUSH-DIM	Carbon Sheet Steel\|PC	Ceiling	120°	White	30W	4000K	4500	207	1,200	Linear

Emergency Option

Dimmable Option

Wattage / Lumens

Code	CRI	UGR	IP Rating	Emergency Option	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Base Shape
UNL4SN	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	None	None	None	Carbon Sheet Steel\|PC	Ceiling	120°	White	20-23-26-30W	4000K	2822-3383-3984-4500	207	1,200	Linear
UNL4SNE	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	Self-Test	None	None	Carbon Sheet Steel\|PC	Ceiling	120°	White	20-23-26-30W	4000K	2822-3383-3984-4500	207	1,200	Linear
UNL4SD	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	None	None	DALI-2\|PUSH-DIM	Carbon Sheet Steel\|PC	Ceiling	120°	White	30W	4000K	4500	207	1,200	Linear
UNL4SDE	CRI>80	22	IP44 (ceiling surface mount) IP40 (suspended or wall mounted)	Self-Test	None	DALI-2\|PUSH-DIM	Carbon Sheet Steel\|PC	Ceiling	120°	White	30W	4000K	4500	207	1,200	Linear
