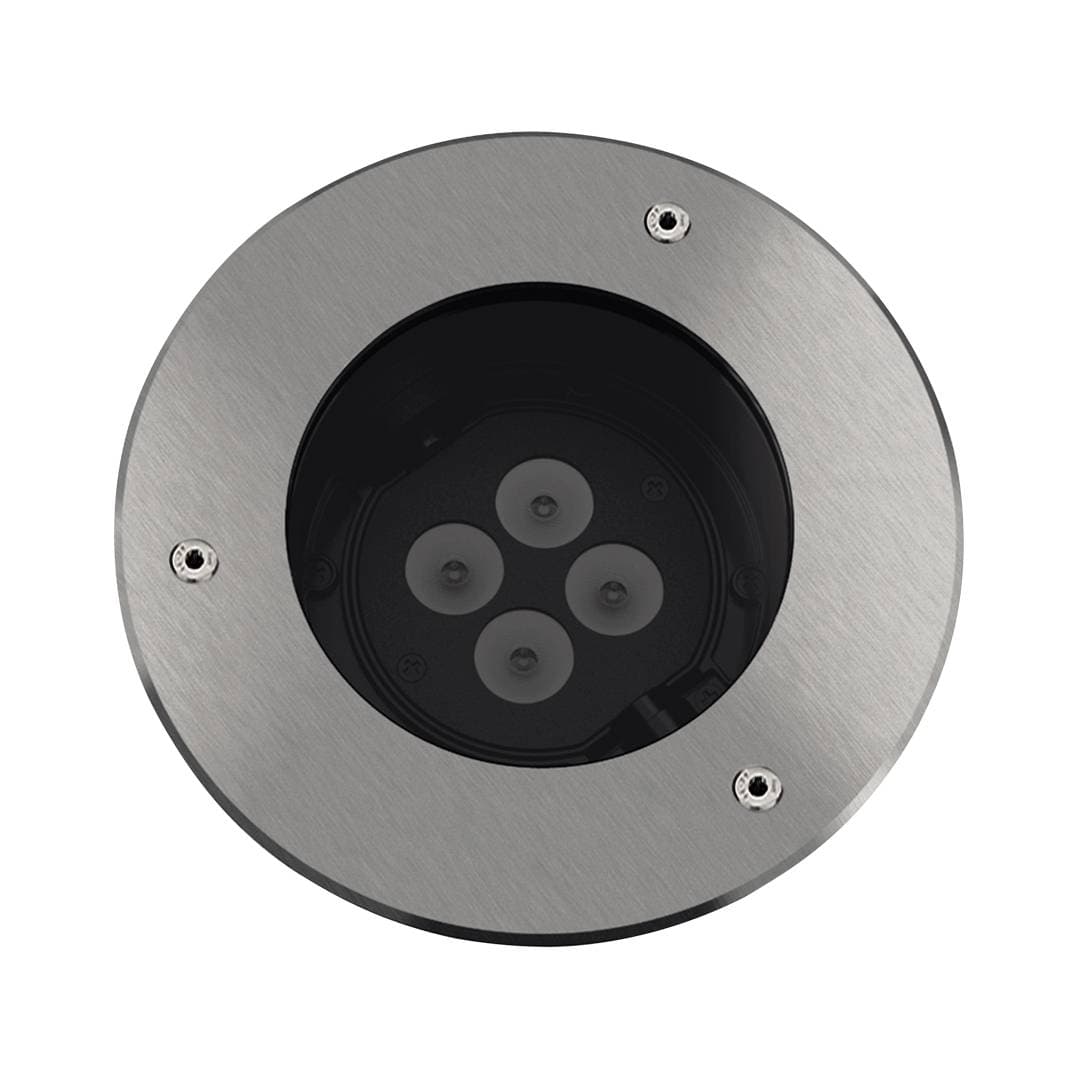

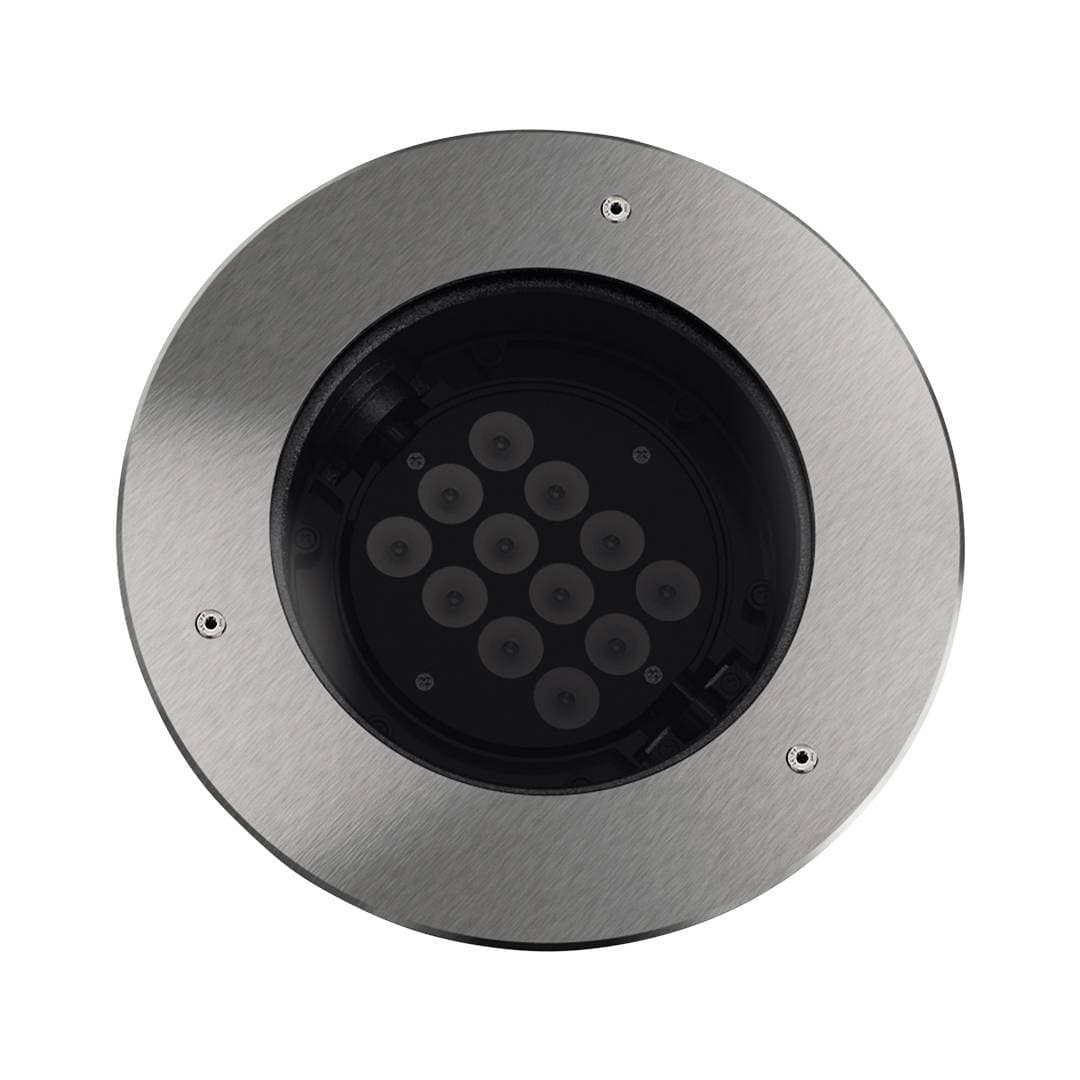

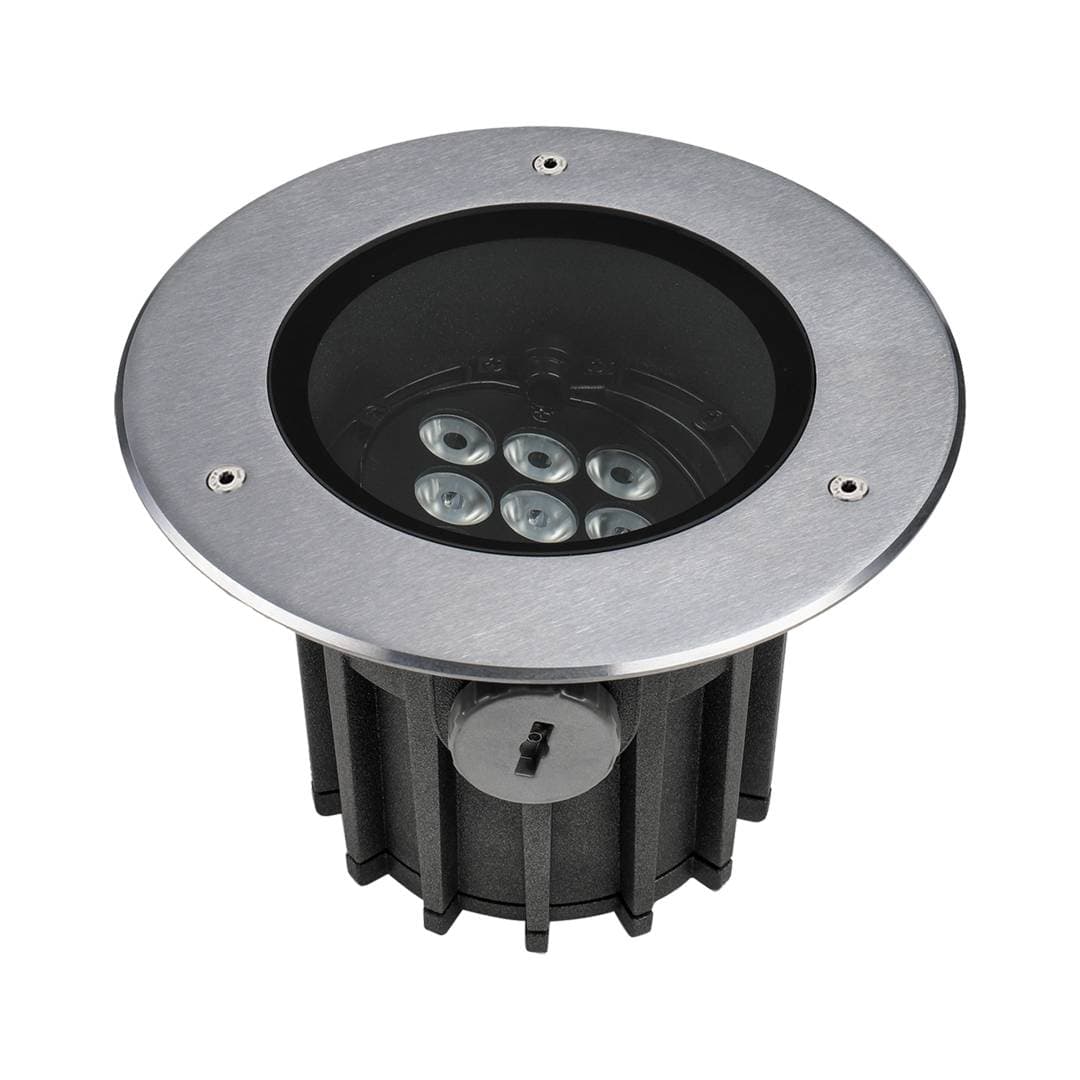

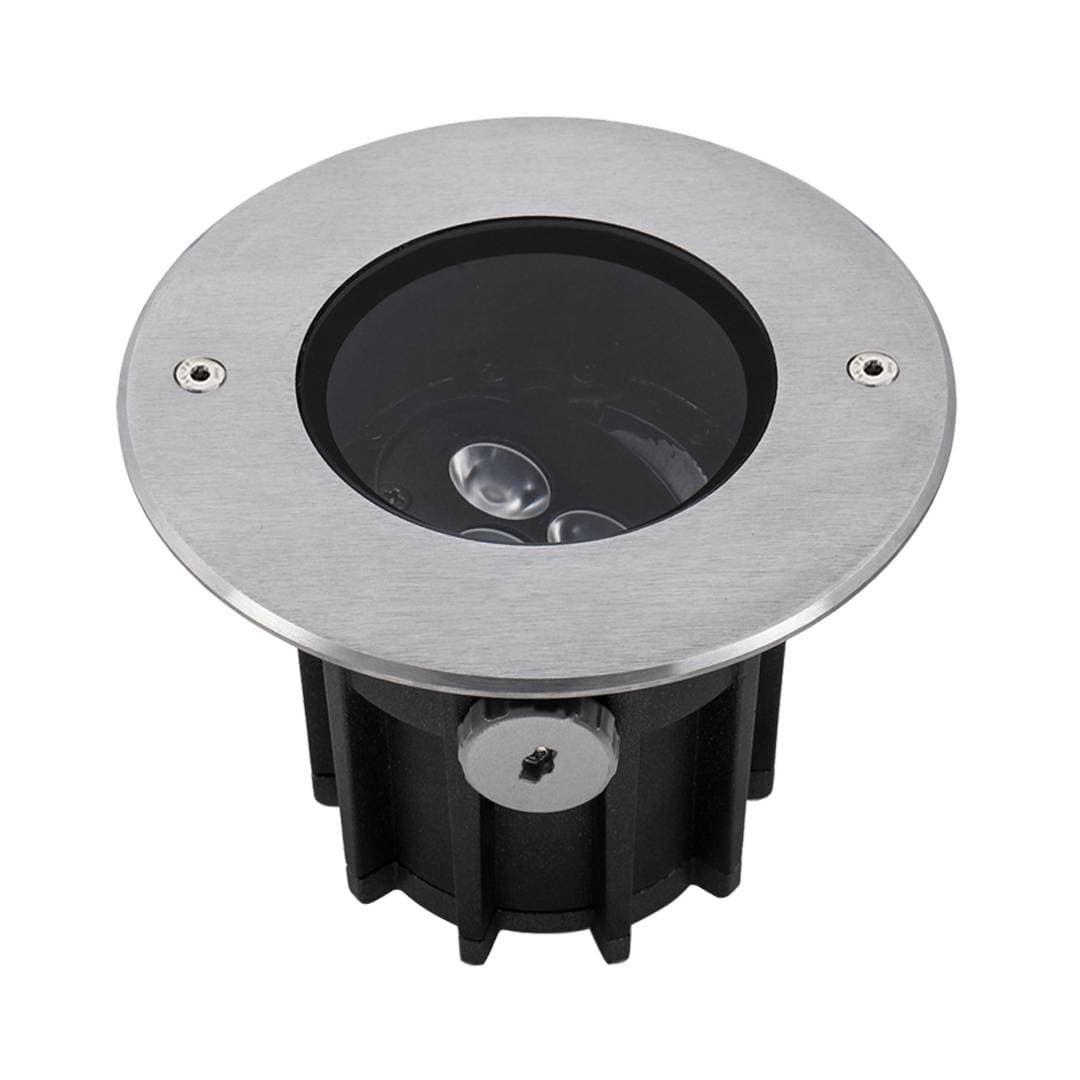

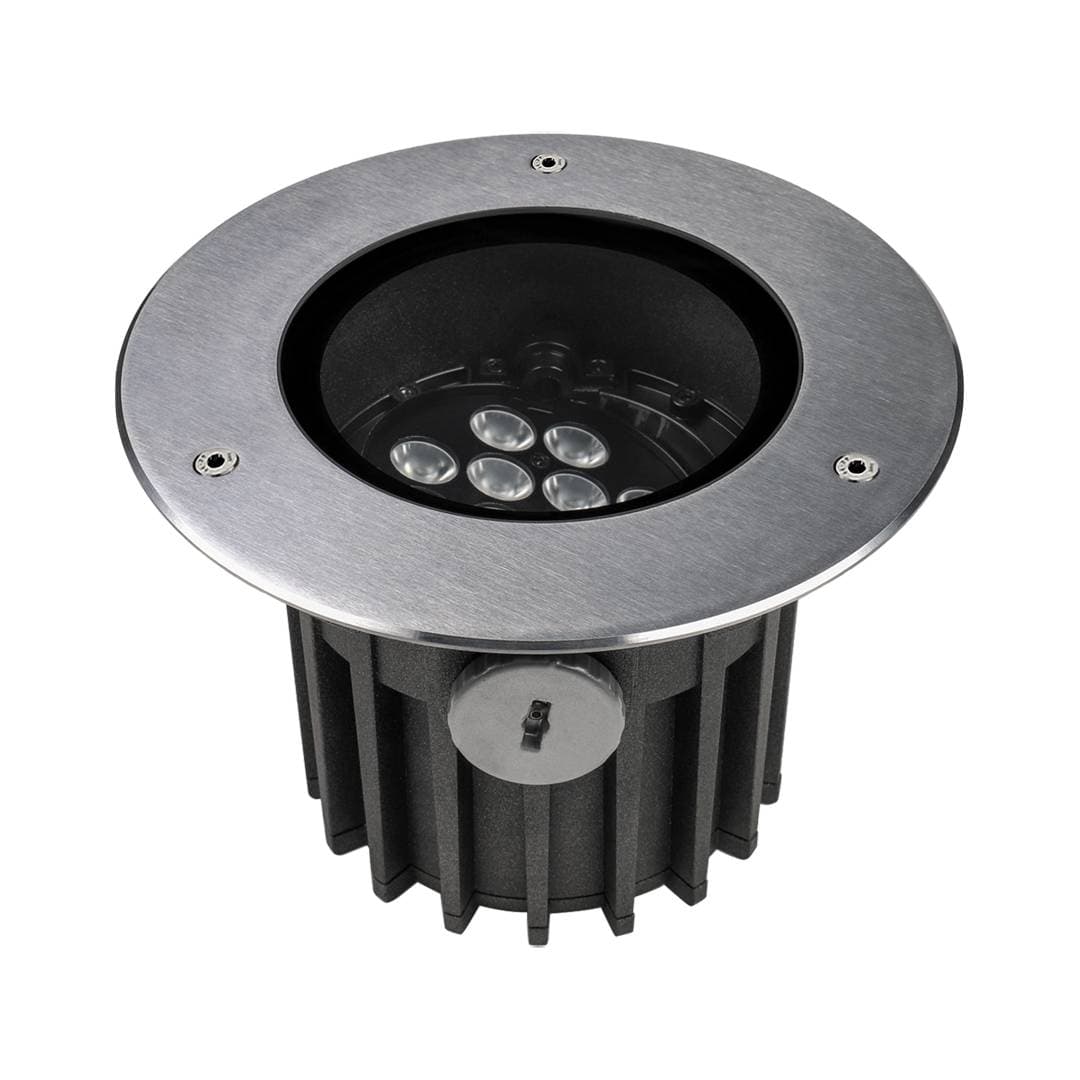

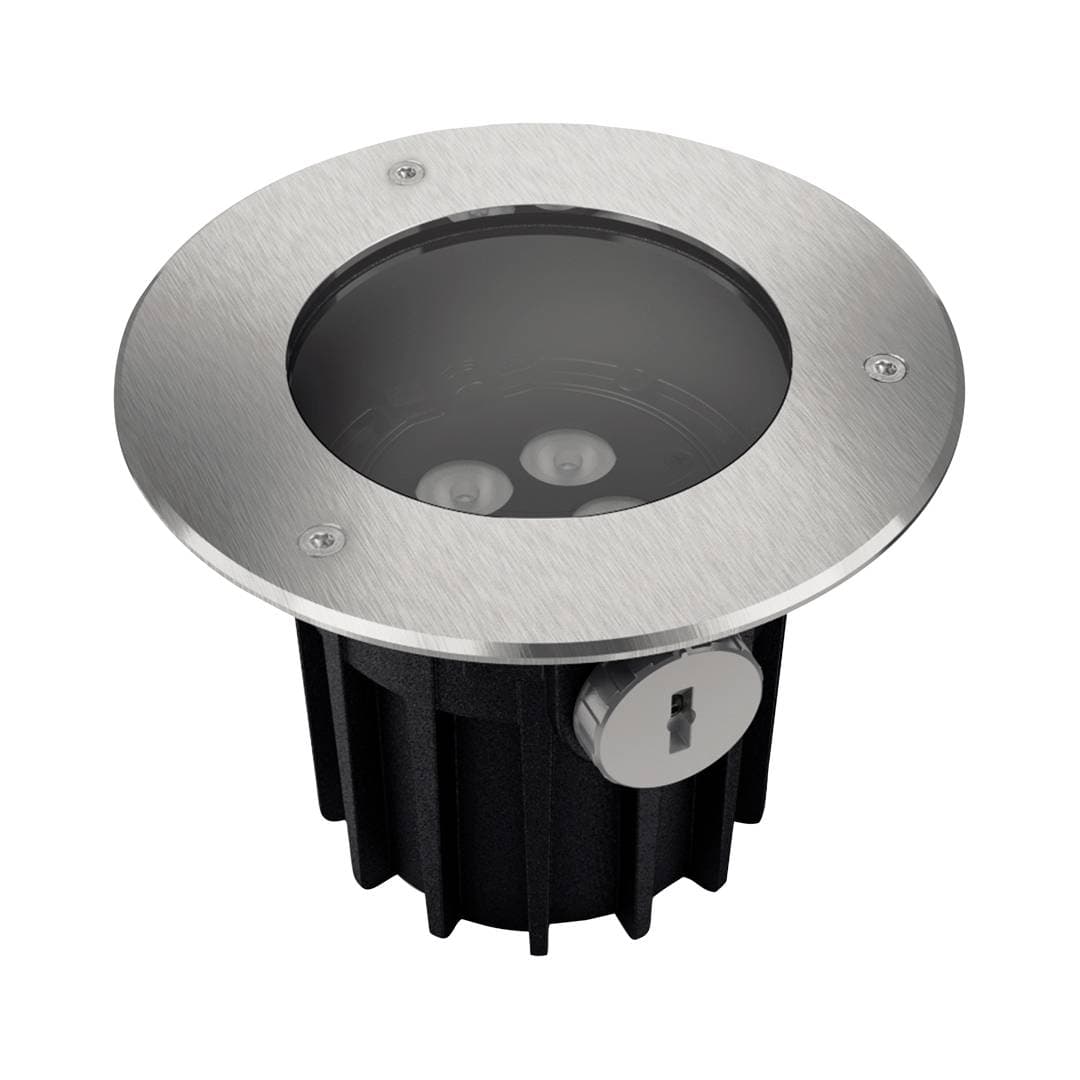

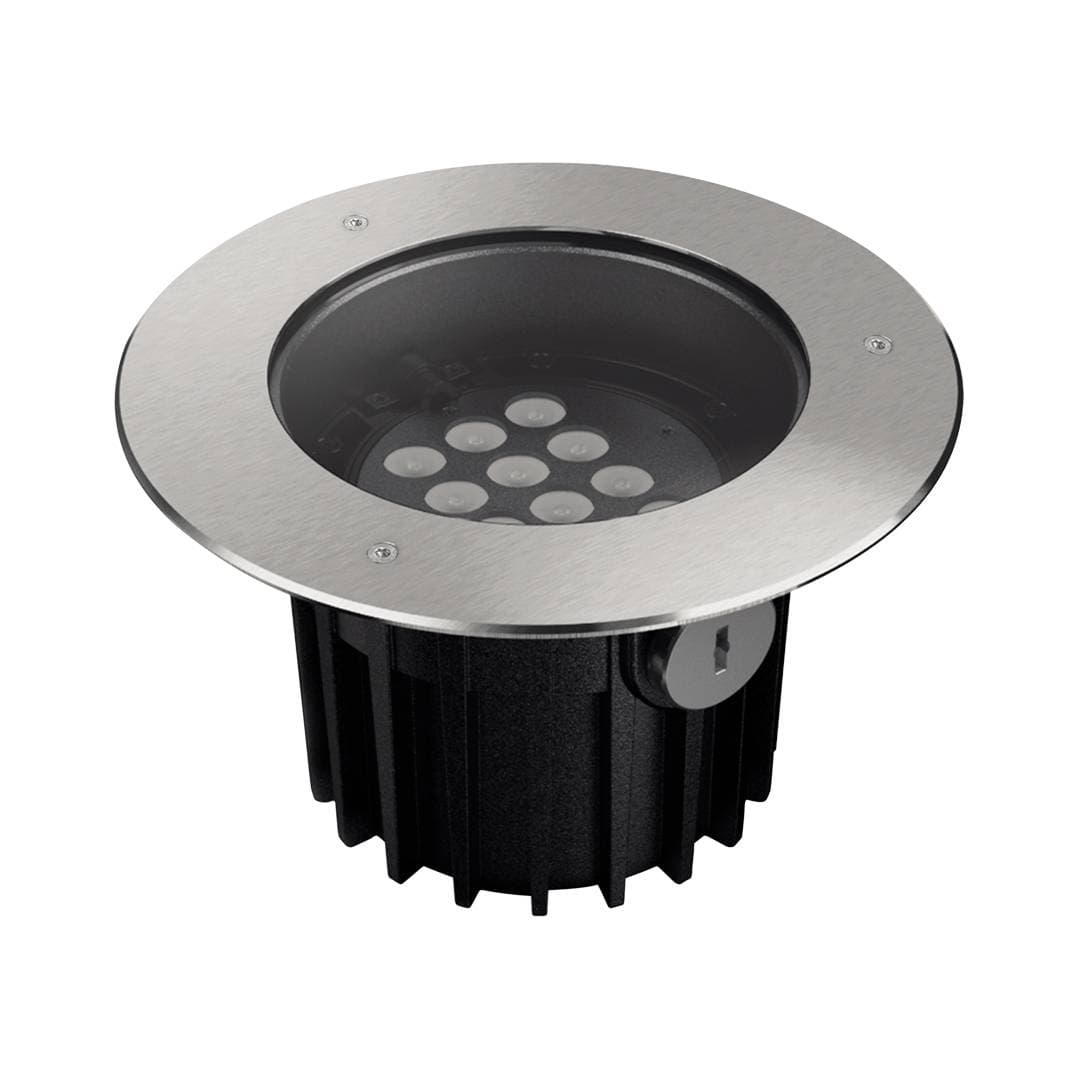

Tilt RGBW ground light

RGBW
IP67 for complete protection against ingress of dust & water
IK10 for protection against high impact
Suitable for coastal applications

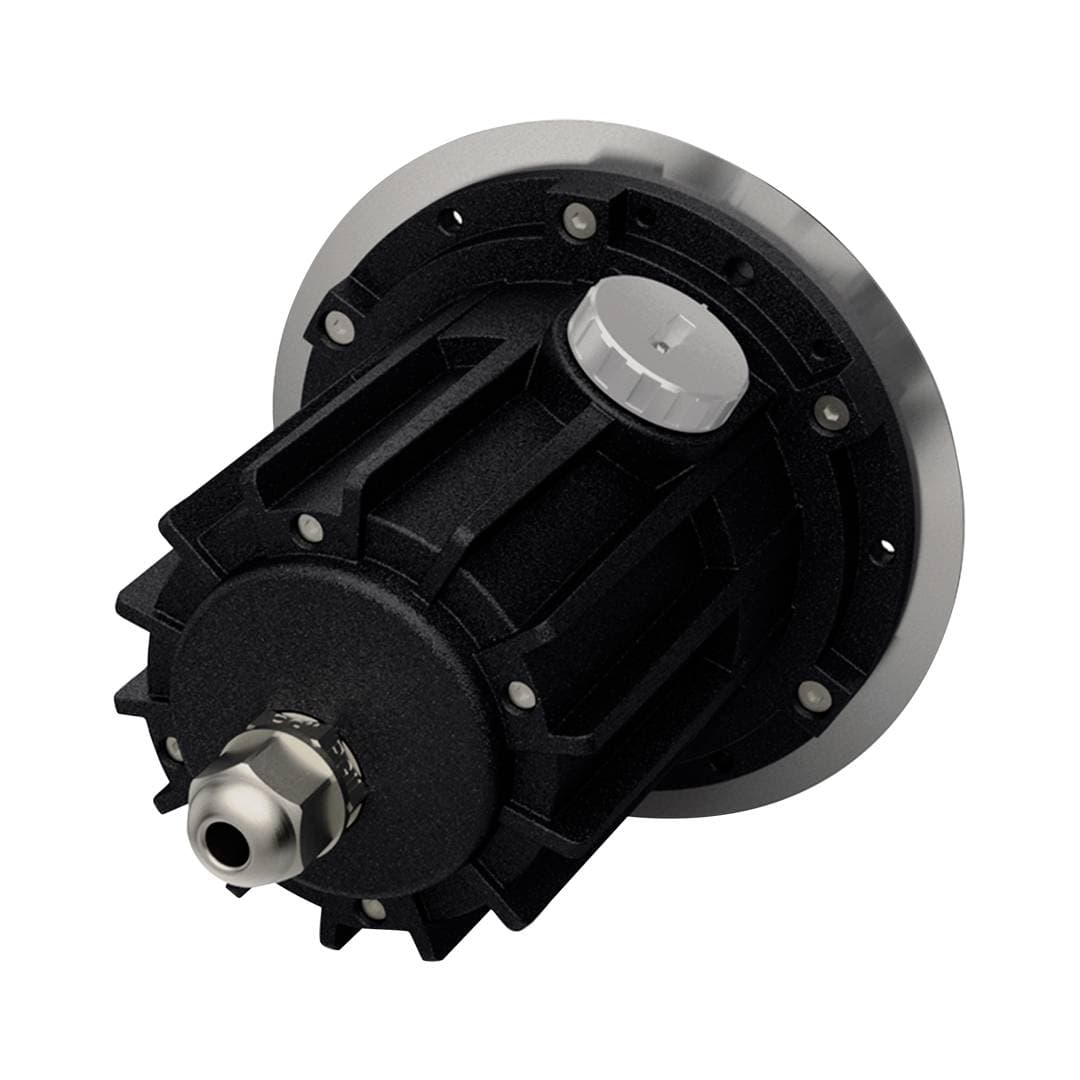

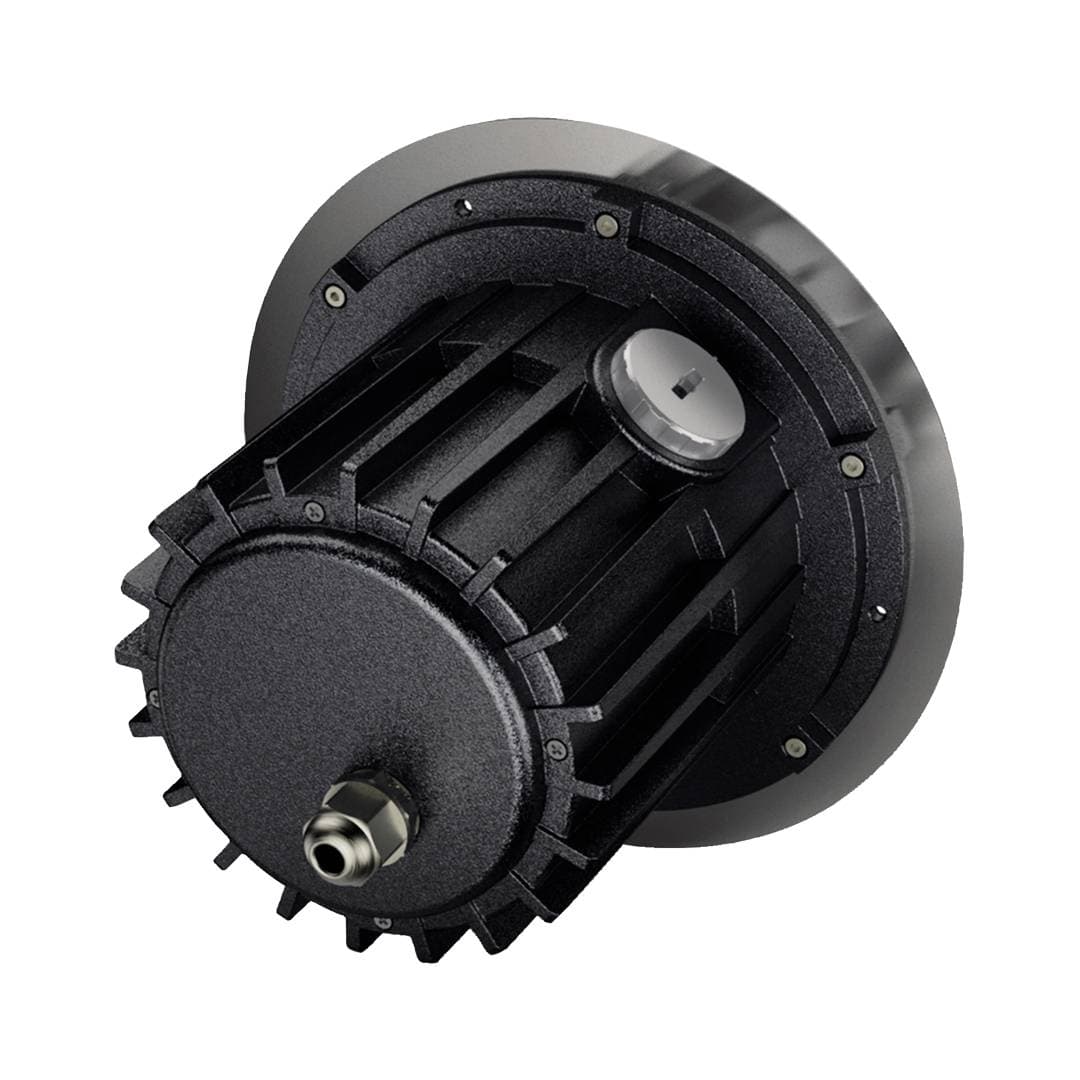

Tilt angle of luminaire is adjustable, just turn knob to tilt the light distribution up to 25 degrees
Static loading capacity is 2000kg
Pre-wired with 1 meter of cable to aid the installer
TRIAC mains dimmable and DALI-2 dimmable options also available
Supplied with installation tube

Cut Out

Wattage / Lumens

Code	CRI	IP Rating	Adjustability	Cut Out	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Sensor Option	Dimmable Option	Length
GLTXS119RGBW	CRI>80	IP67	Swivelling	119	Anodised Aluminium\|Stainless Steel 316	40°	Stainless Steel 316	2W	RGBW (3000K)	30-90	None	None	136
GLTXS147RGBW	CRI>80	IP67	Swivelling	147	Anodised Aluminium\|Stainless Steel 316	40°	Stainless Steel 316	3-4W	RGBW (3000K)	60-190	None	None	156
GLTXS165RGBW	CRI>80	IP67	Swivelling	165	Anodised Aluminium\|Stainless Steel 316	40°	Stainless Steel 316	4.5-5.5W	RGBW (3000K)	100-300	None	None	168
GLTXS193RGBW	CRI>80	IP67	Swivelling	193	Anodised Aluminium\|Stainless Steel 316	40°	Stainless Steel 316	7-9W	RGBW (3000K)	150-400	None	None	195
GLTXS223RGBW	CRI>80	IP67	Swivelling	223	Anodised Aluminium\|Stainless Steel 316	40°	Stainless Steel 316	9-12W	RGBW (3000K)	1001-3001	None	None	212
