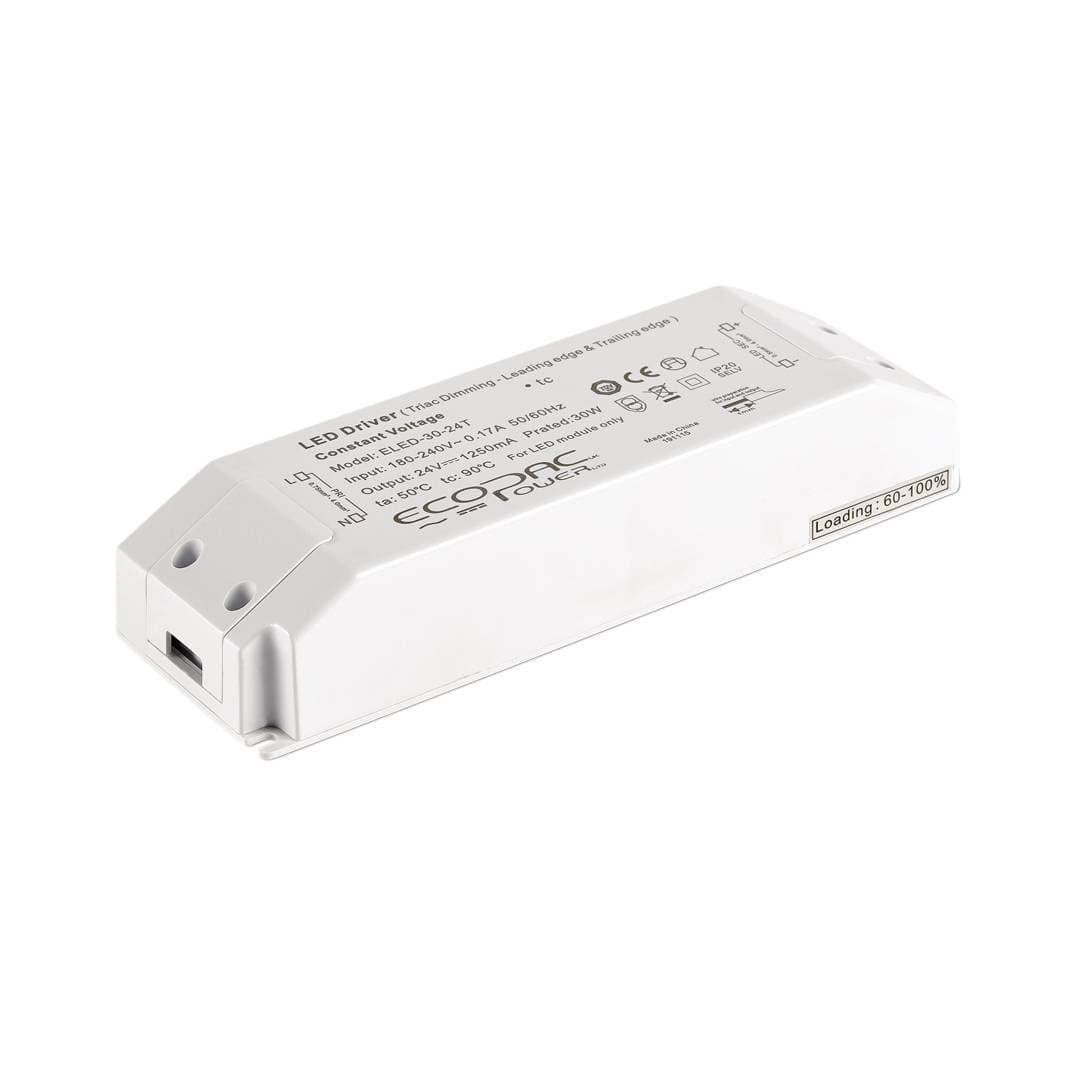

This is an IP20 mains dimmable 24V driver, suitable for use with LED strip and the SL250 path light. The flicker free, slimline design ensures the product suitability for residential applications.
| Code | Warranty | Input | Ambient Temperature | Efficiency | Connection Input | Connection Output | Driver Output Voltage | Driver Output Current | Protection | Power Factor | Product Input Current | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSMD3024 | 3 Years | 180-240V AC | 50°C | 83 | 0.75-4.0mm² max. | 0.5-4.0mm² max. | 24 | 1.25A | Short circuit, overload & overheating | 0.95 | 0.18 |
