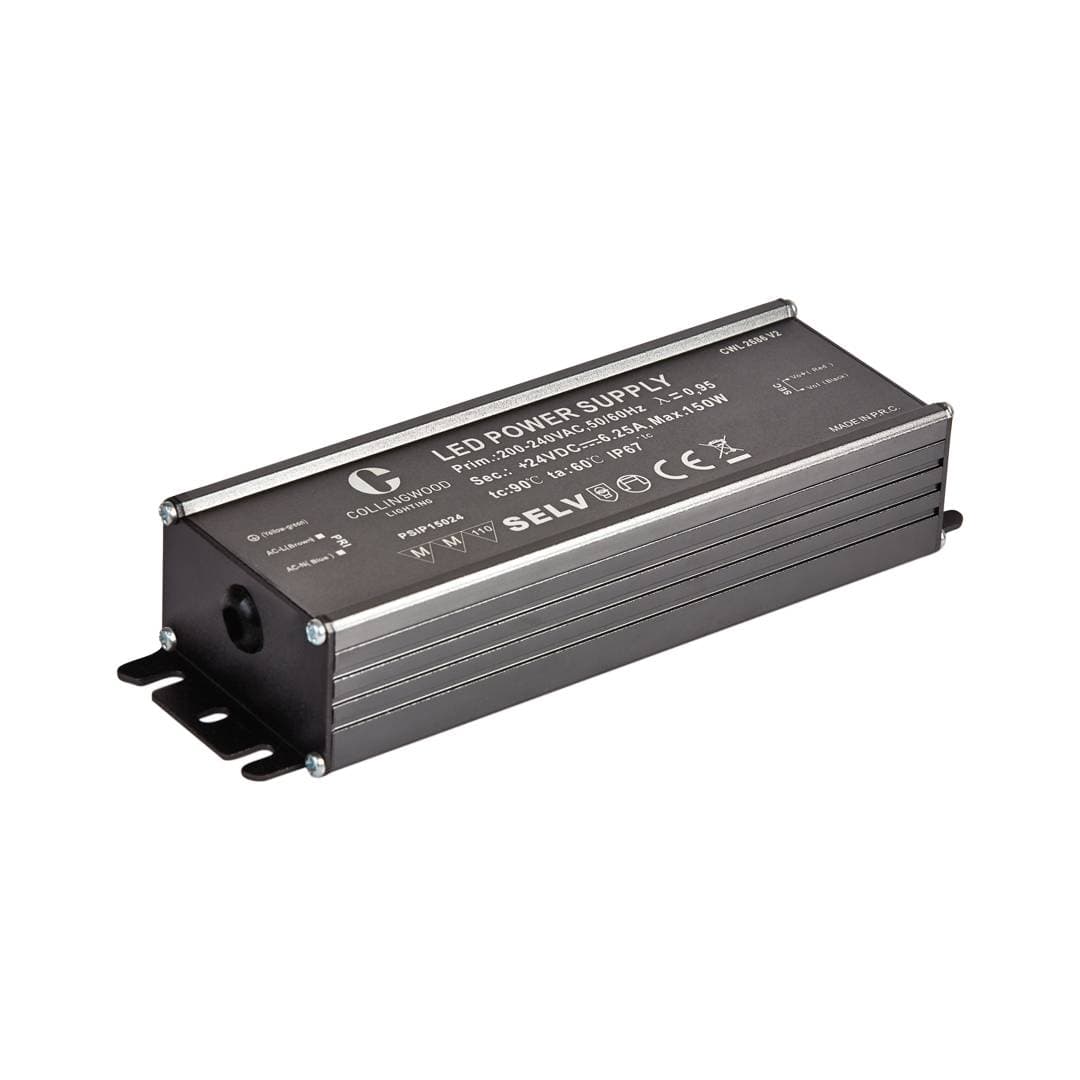

A 150W, 24V waterproof LED power supply for Collingwood Lighting's range of LED products. Wired in parallel, it is possible to install up to 300 GL018 ground lights or 10m of LSC45 LED strip.By installing the PDCINT1-10v interface it is possible to make the PS10024 a 1-10v dimmable power supply.
| Code | Warranty | Ambient Temperature | Efficiency | Connection Input | Connection Output | Driver Output Voltage | Driver Output Current | Protection | Power Factor | Product Input Current | Input | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSIP15024 | 3 Years | 50°C | 85 | 0.25m, 1mm² 3-core cable Ø: 7.5mm | 0.25m, 1mm² 2-core cable Ø 8mm | 24 | 6.3A max. | Short circuit, overload & overheating | 0.95 | 0.8 | 220-240V AC |
