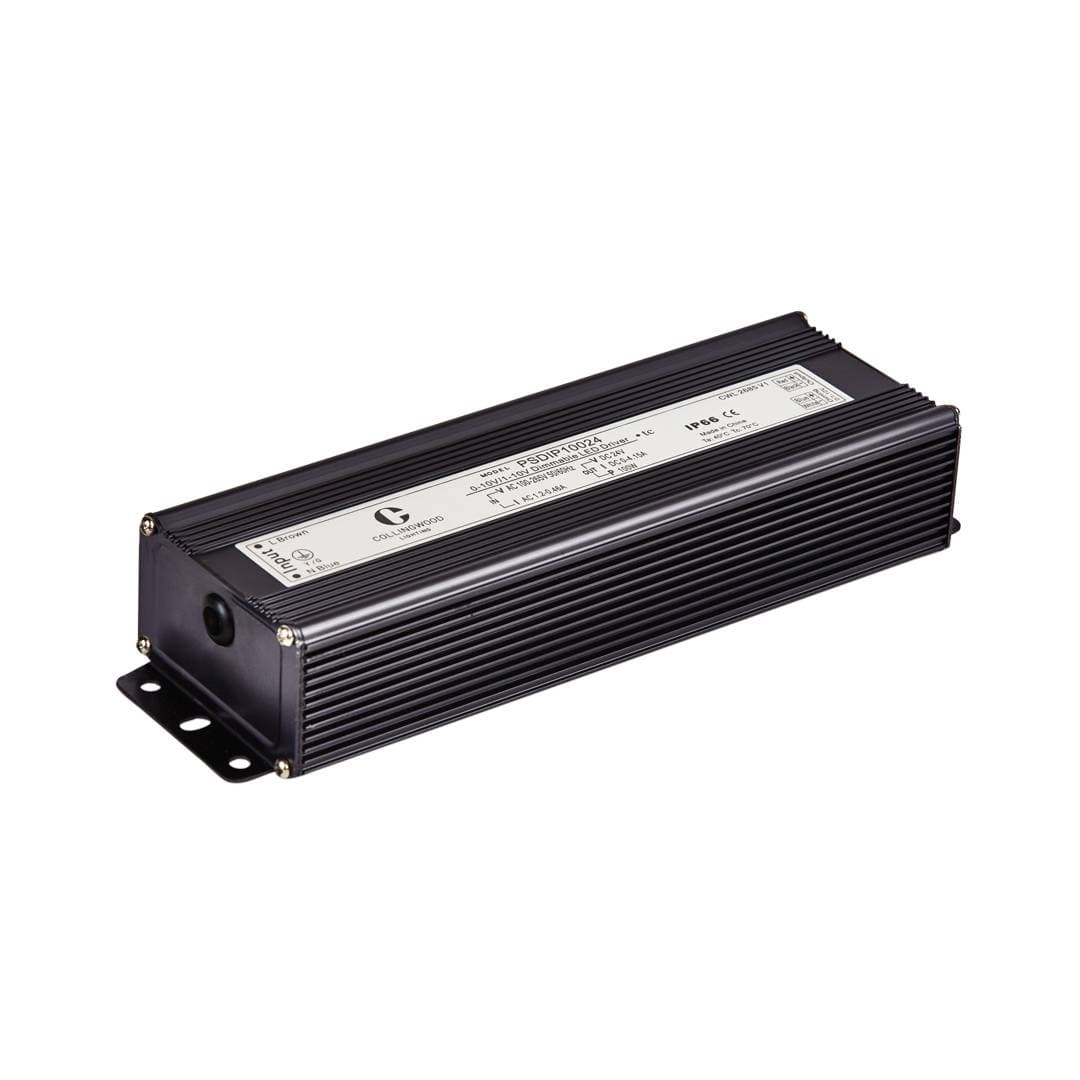

Constant voltage LED driver with metal case for superior heat dissipation. IP66 rated for indoor and outdoor use with built in PFC, 0.98 power factor. Power: 100W MAX
| Code | Warranty | Ambient Temperature | Efficiency | Connection Input | Connection Output | Driver Output Voltage | Driver Output Current | Protection | Power Factor | Product Input Current | Input | Downloads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSDIP10024 | 3 Years | 40°C | 80 | Mains: 0.25m, 1mm² 3-core cable Ø: 7.5mm 1-10V: 0.25m, 0.75mm² 2-core cable Ø: 6.5mm | 0.25m, 1.5mm² 2-core cable Ø: 7mm | 24 | 4.15A max. | Short circuit, overload & overheating | 0.98 | 0.546 | 220-240V AC |
