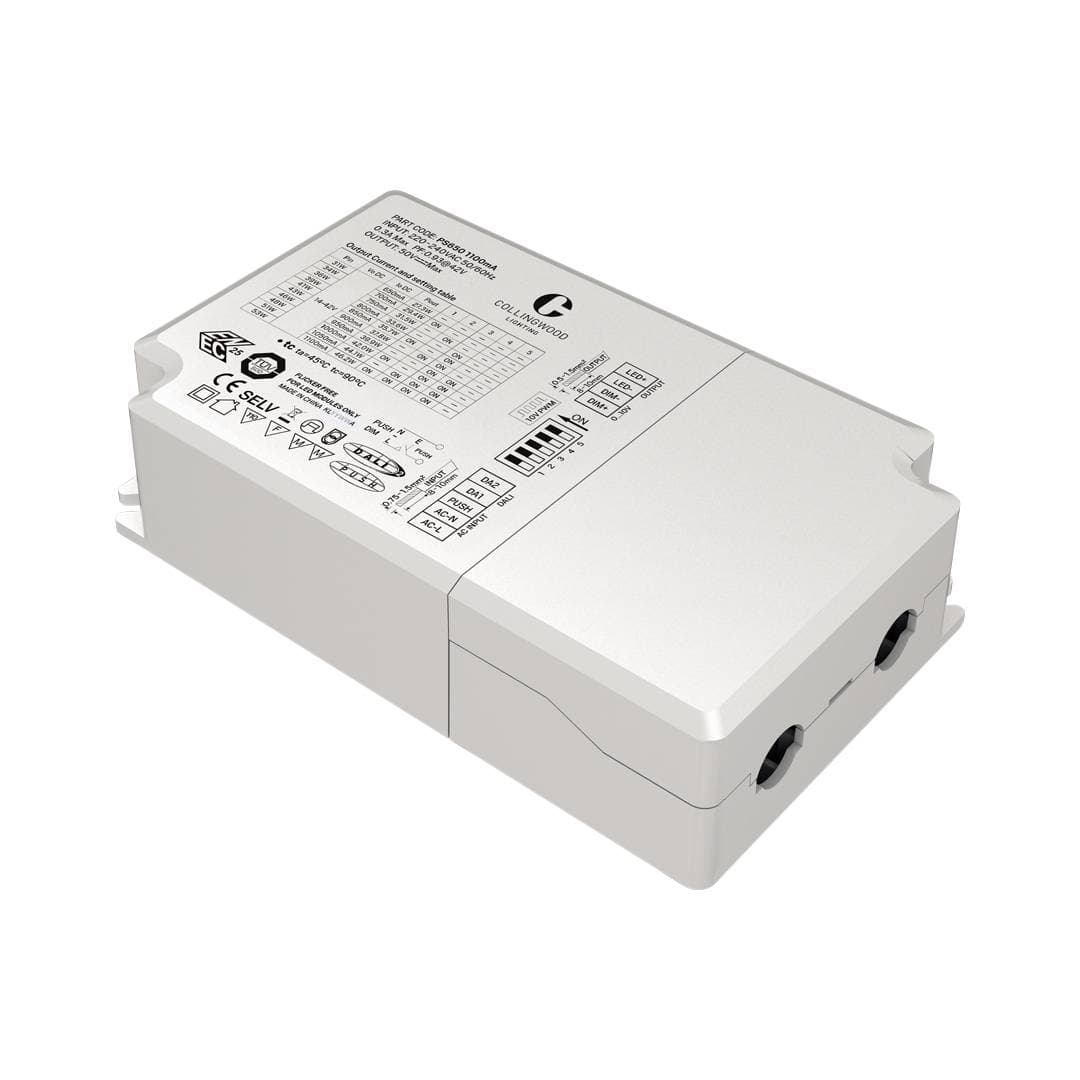

PS6501100MA

DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014, IEC 62386-207: 2009, DALI-2
ENEC, CE, CB approved by TUV SUD, SAA, Ctick qualified
Adjustable constant current outputs range from 250-1100mA(selectable every 50mA)
Independent ECG and with strain-relief
Built-in with permanent memory for DALI and Push-DIM, 100,000 times memory
Grow wire tested 650° for 30S and 850° for 5S
DALI 1%-100%, Push-DIM, from 100% to 1.5% dimming range

Product Data

Warranty	Input	Ambient Temperature	Efficiency	Connection Input	Connection Output	Driver Output Voltage	Driver Output Current	Protection	Power Factor	Product Input Current	Downloads
5 years	220-240V AC	-20°C - 45°C	87	0.75 - 1.5mm2	0.5 - 1.5mm2	14-42	650mA - 1100mA	Over Voltage, Short Circuit, Thermal	0.95	0.3
