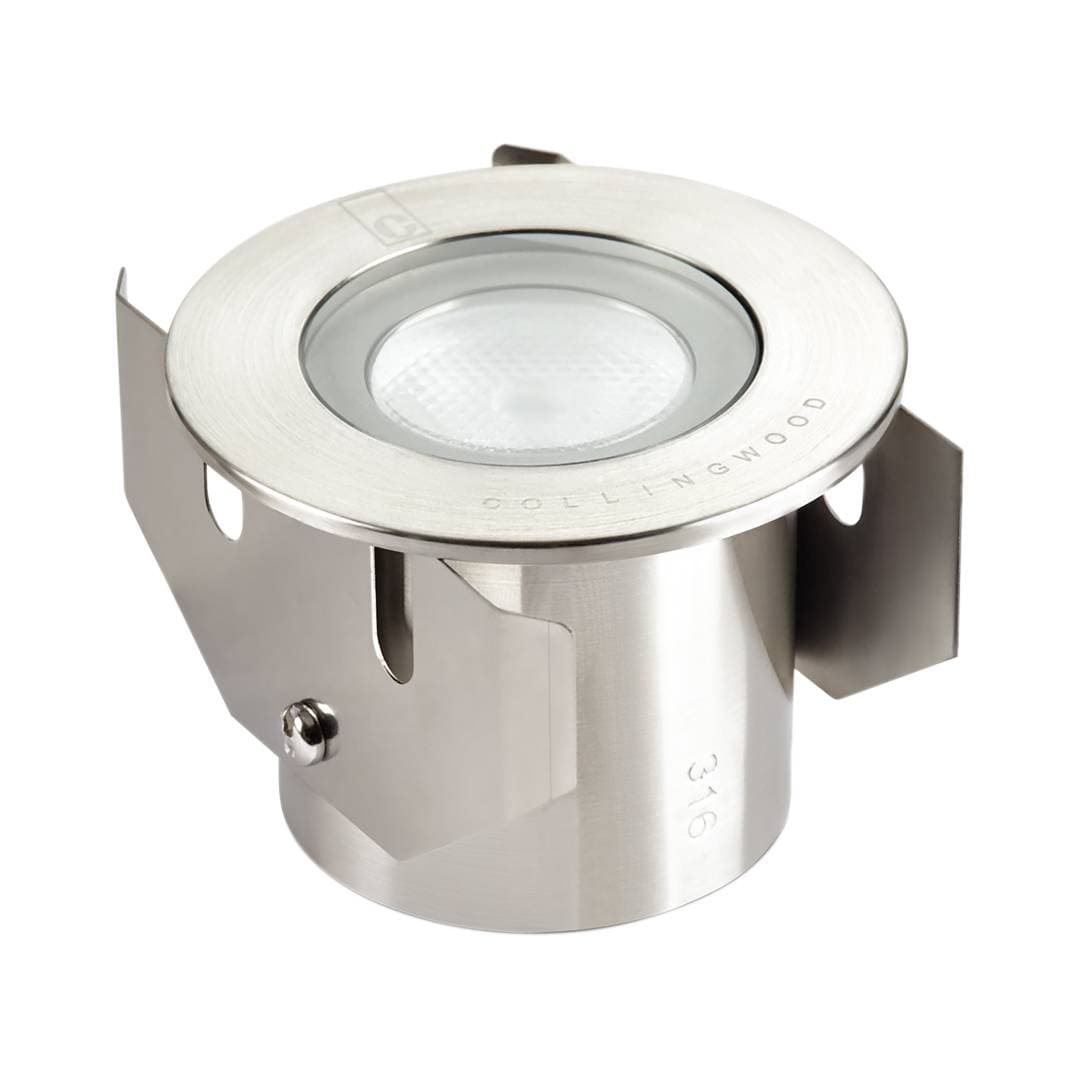

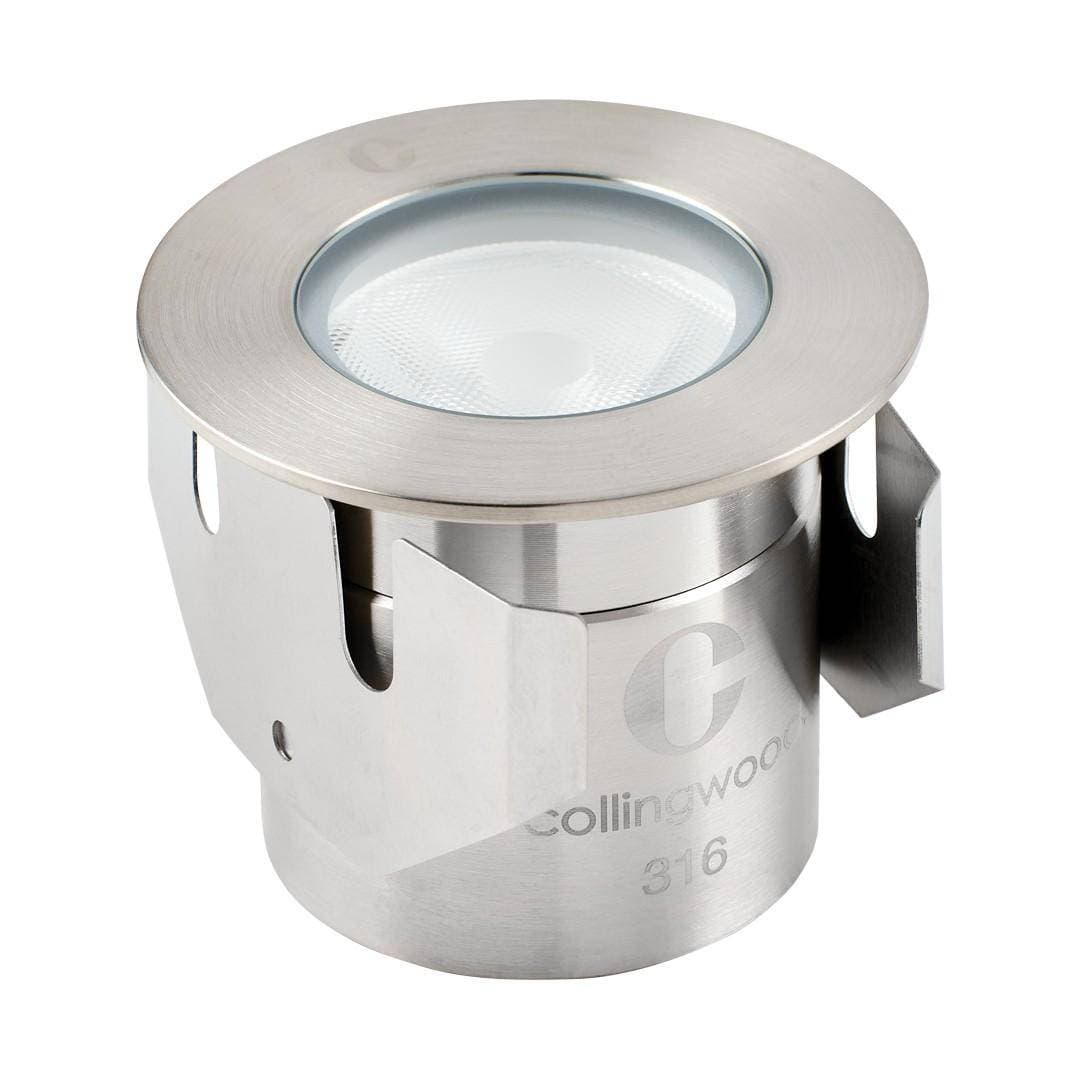

GL016 Round

The newly upgraded GL016 modular offers a variety of options, including square, low glare, circle, ultra low glare, and frosted, making it ideal for any installation. This mid-sized grould light is ideal for marking pathways, lobbies, and circulation areas in both interior and exterior environments, for both domestic and public applications. In addition, it includes IK09 impact and coastal protection.

IP68 perfect for internal or external applications
Coastal protected
IK07 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
SDCM3 ensuring uniform light appearance and consistency
CRI 80 providing true colour appearance
Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
Robust cable for outdoor use
Shallow depth for easy installation
Available in an array of colours

Accessories

Find the perfect product you are looking for.

WCR 275 BLACK

2-core rubber cable

JB6

Inline IP68 gel filled cable connector

JB4

Gel filled waterproof junction box

JB2

Waterproof junction box

Walk Over / Drive Over

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability	Dimmable Option

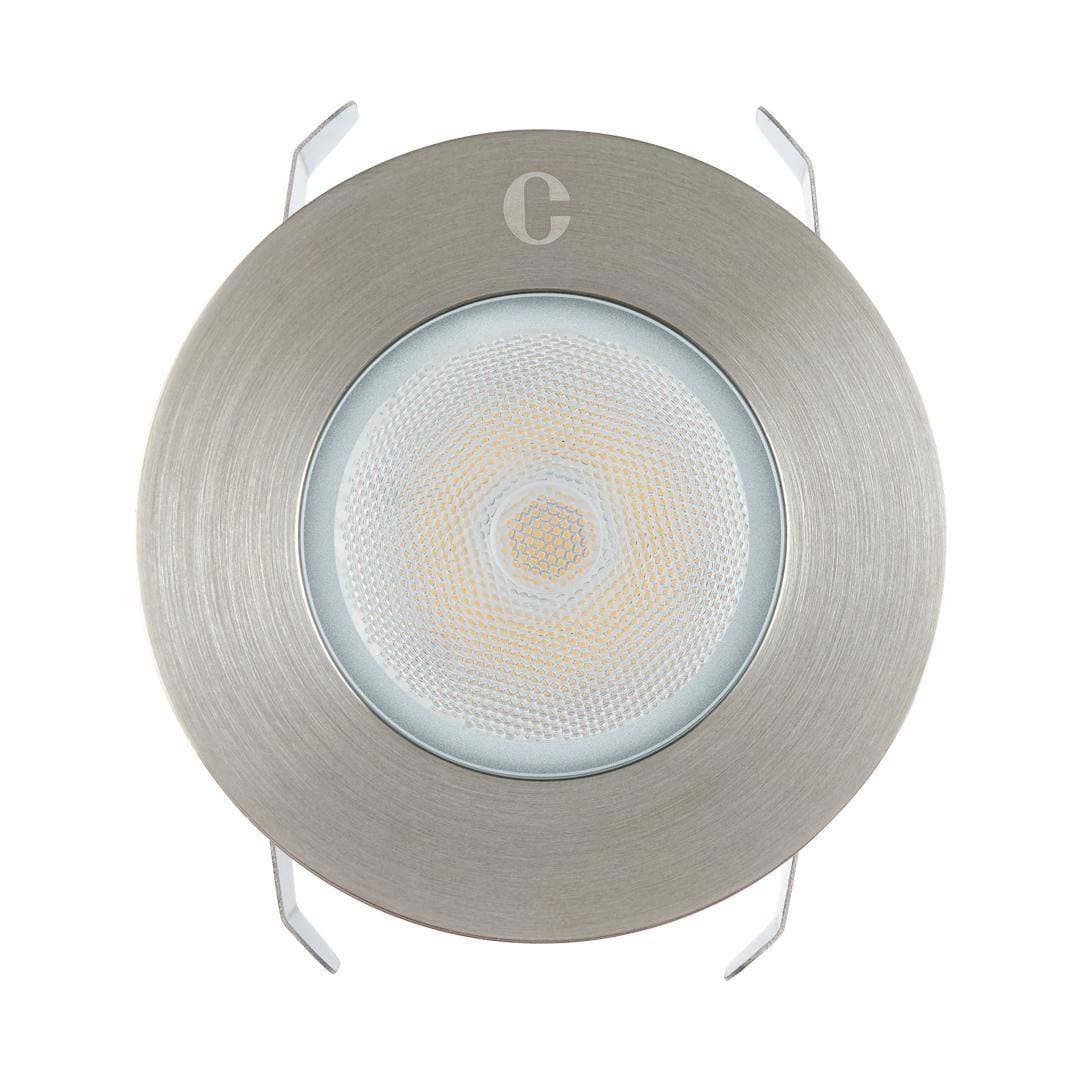

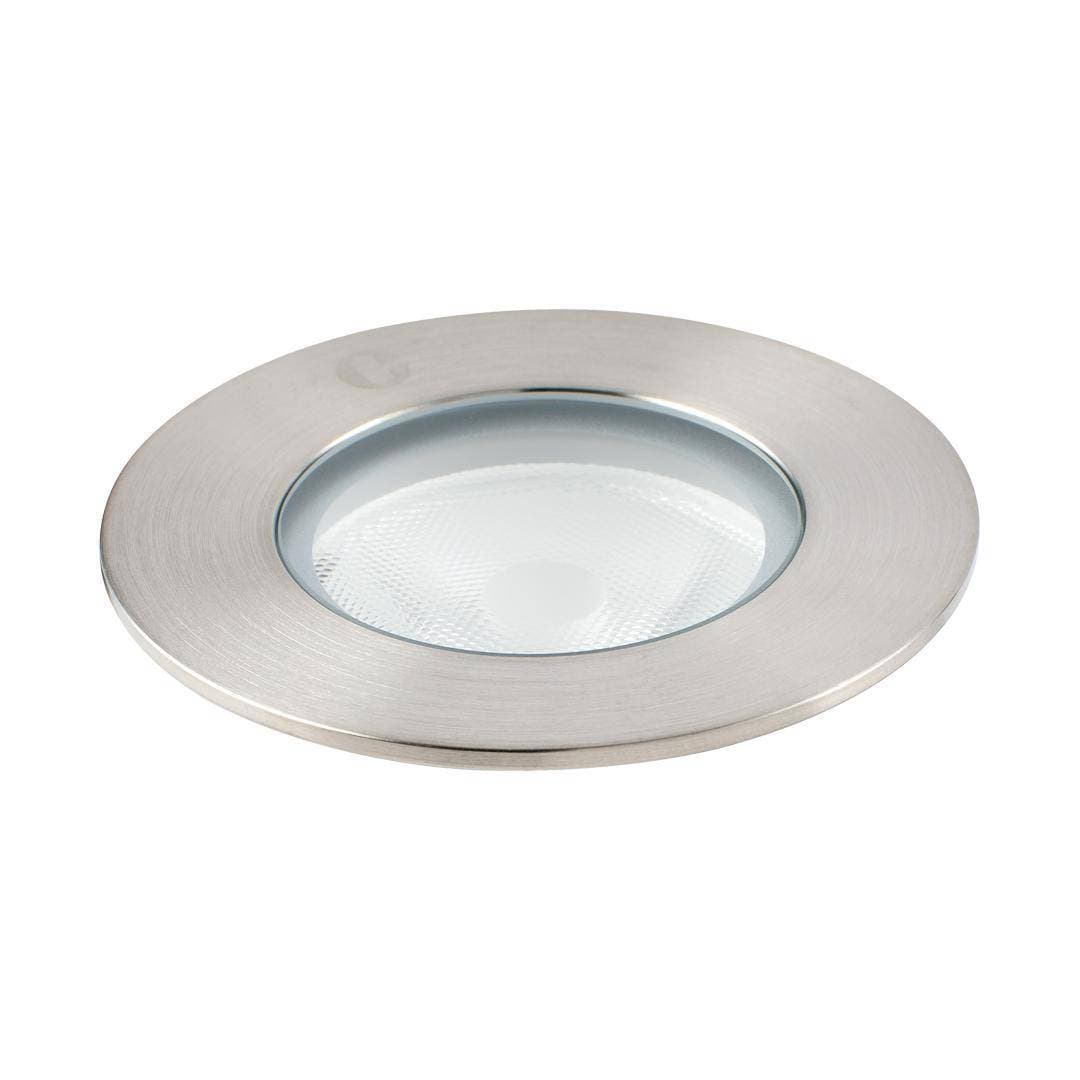

GL016RSS27F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Stainless Steel 316	Stainless steel	60	60	Not adjustable	None
GL016RSS30F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless steel	60	60	Not adjustable	None
GL016RSS40F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless steel	60	60	Not adjustable	None

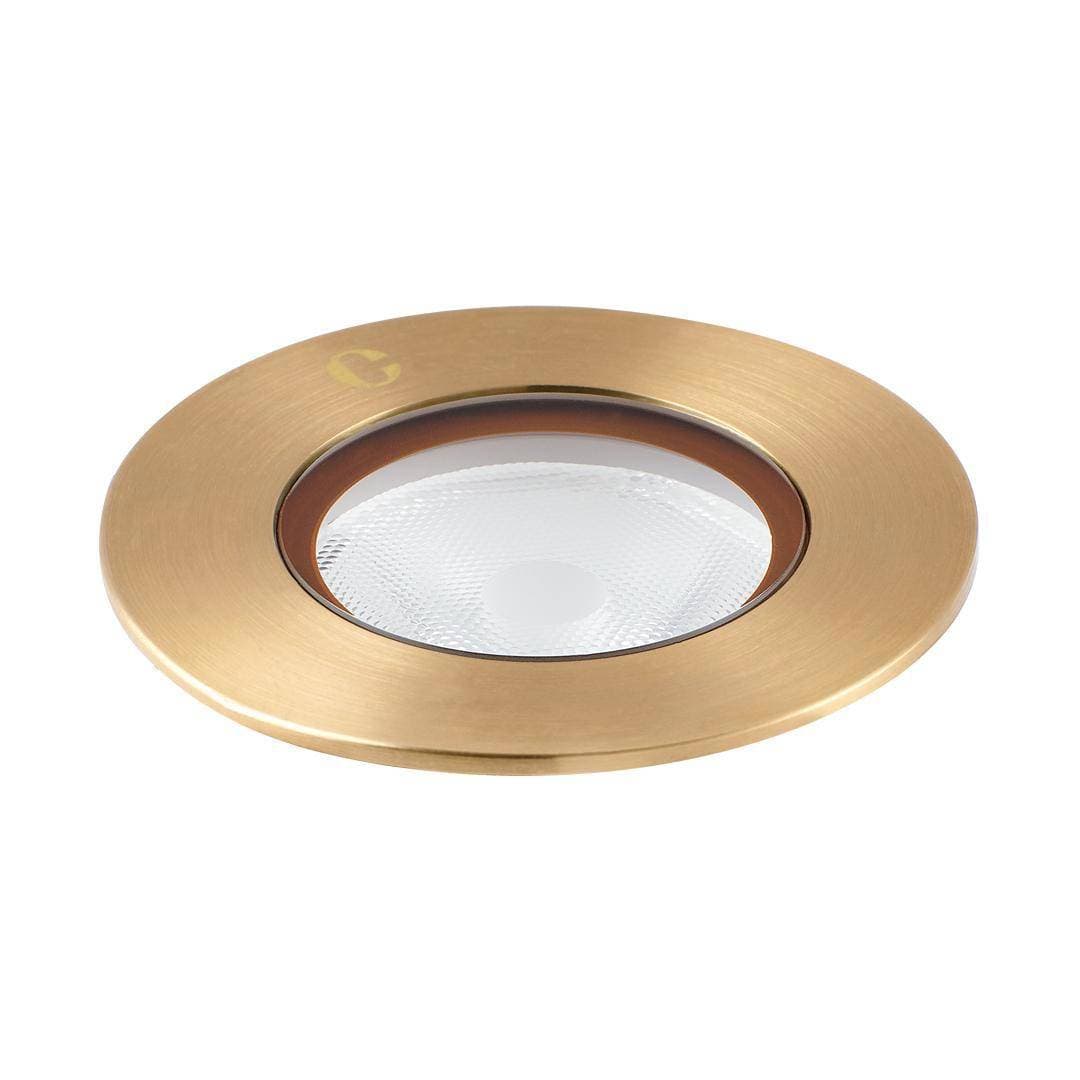

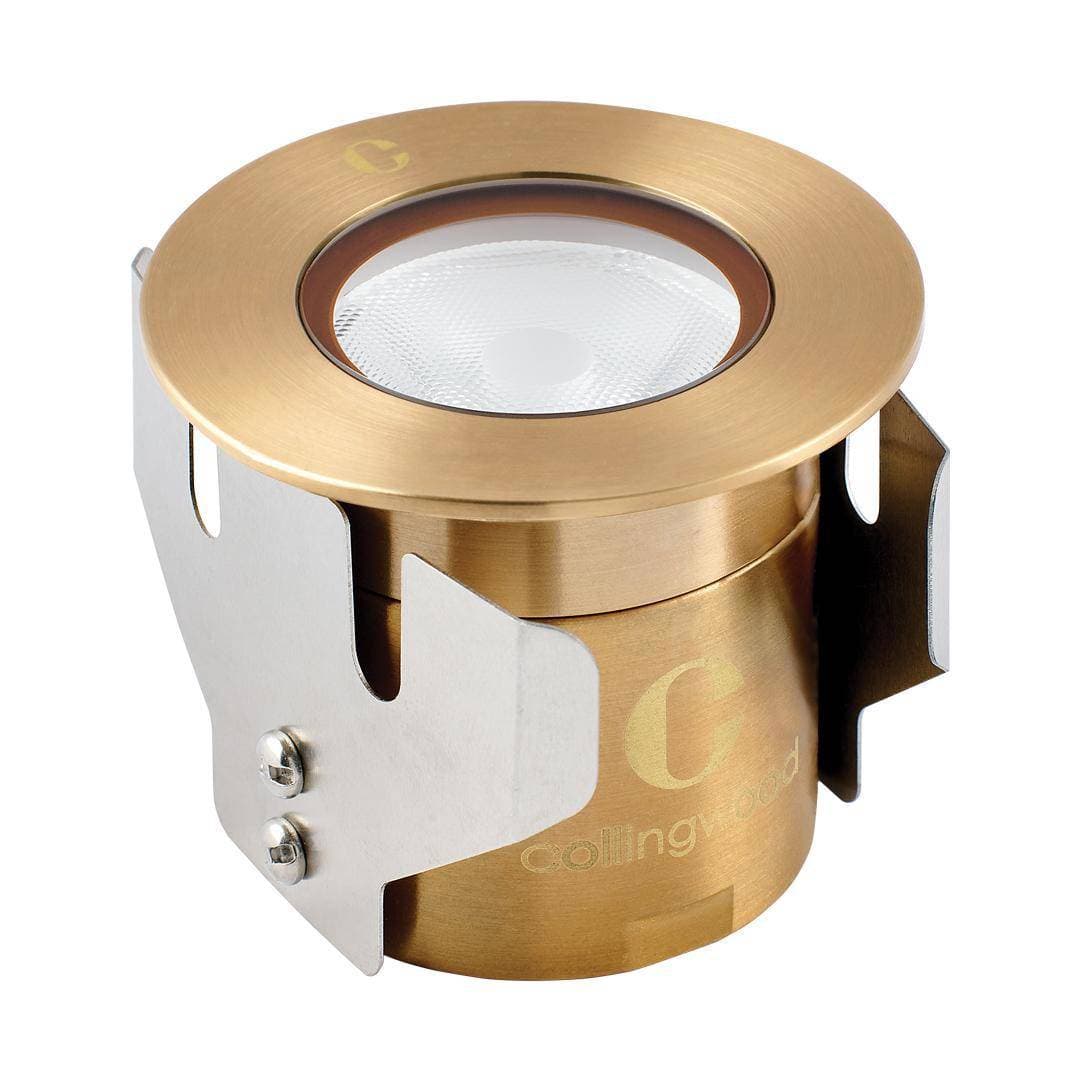

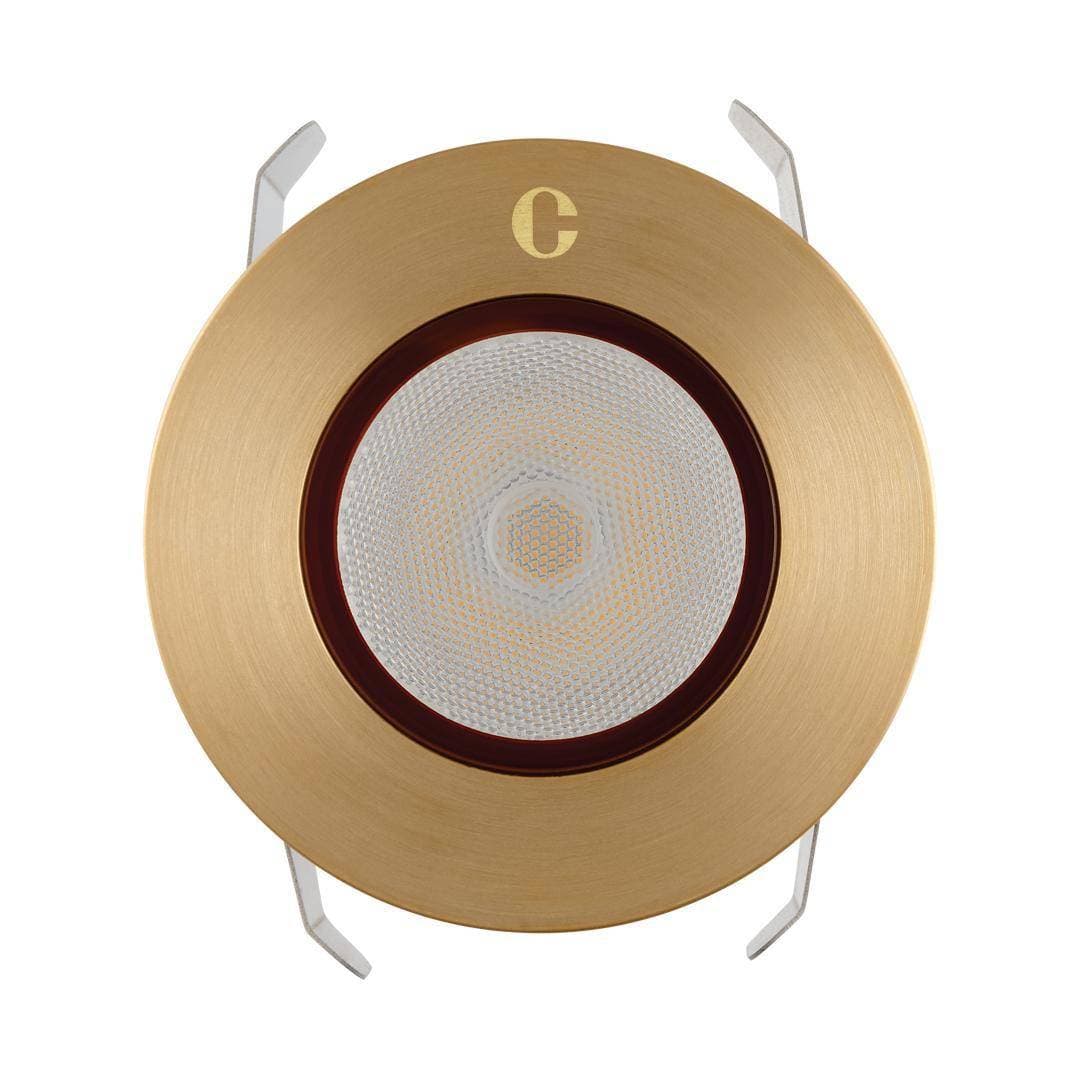

GL016RAB27F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Antique brass	Brass	60	60	Not adjustable	None
GL016RAB30F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Antique brass	Brass	60	60	Not adjustable	None
GL016RAB40F	CRI>80	IP68	50mm	40°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Antique brass	Brass	60	60	Not adjustable	None

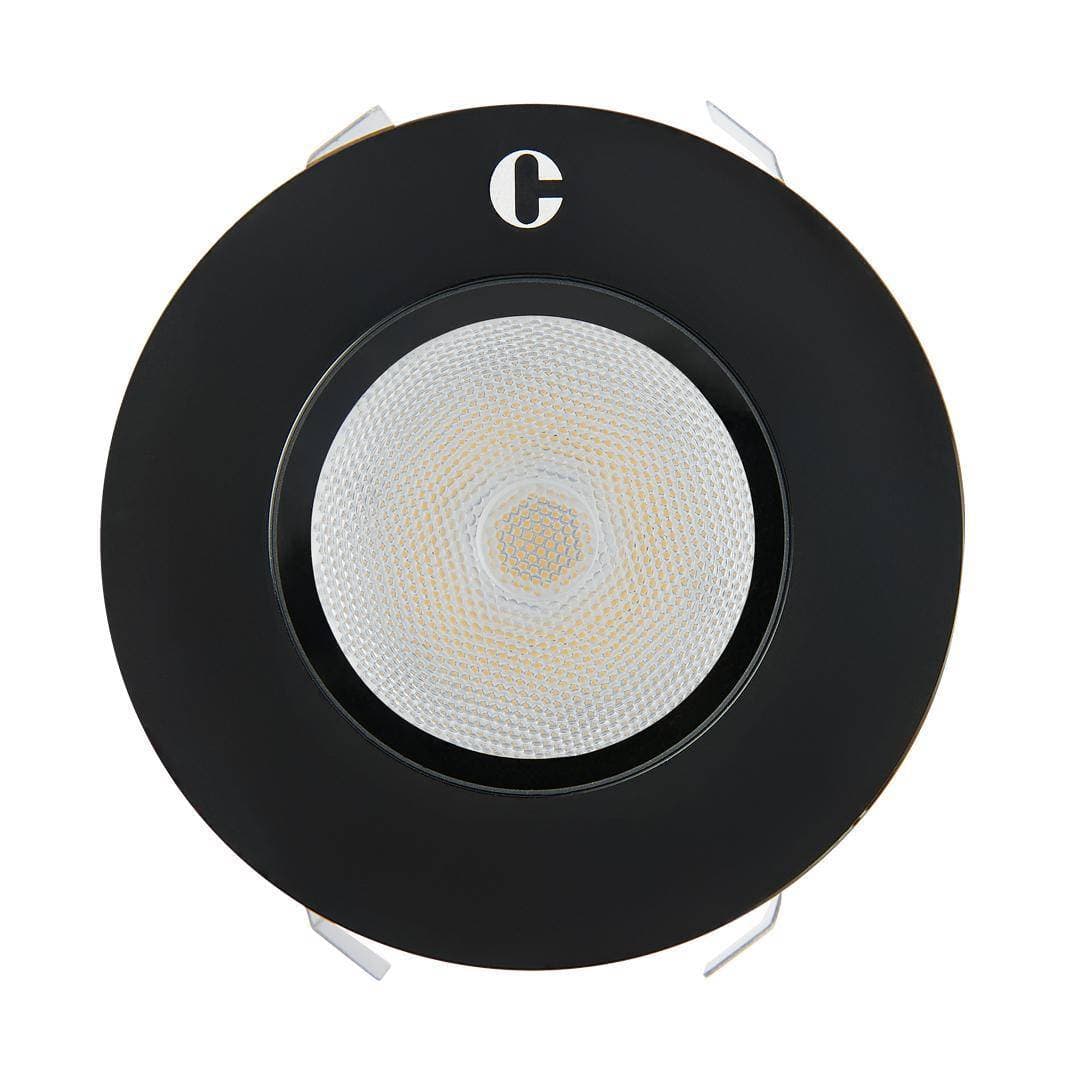

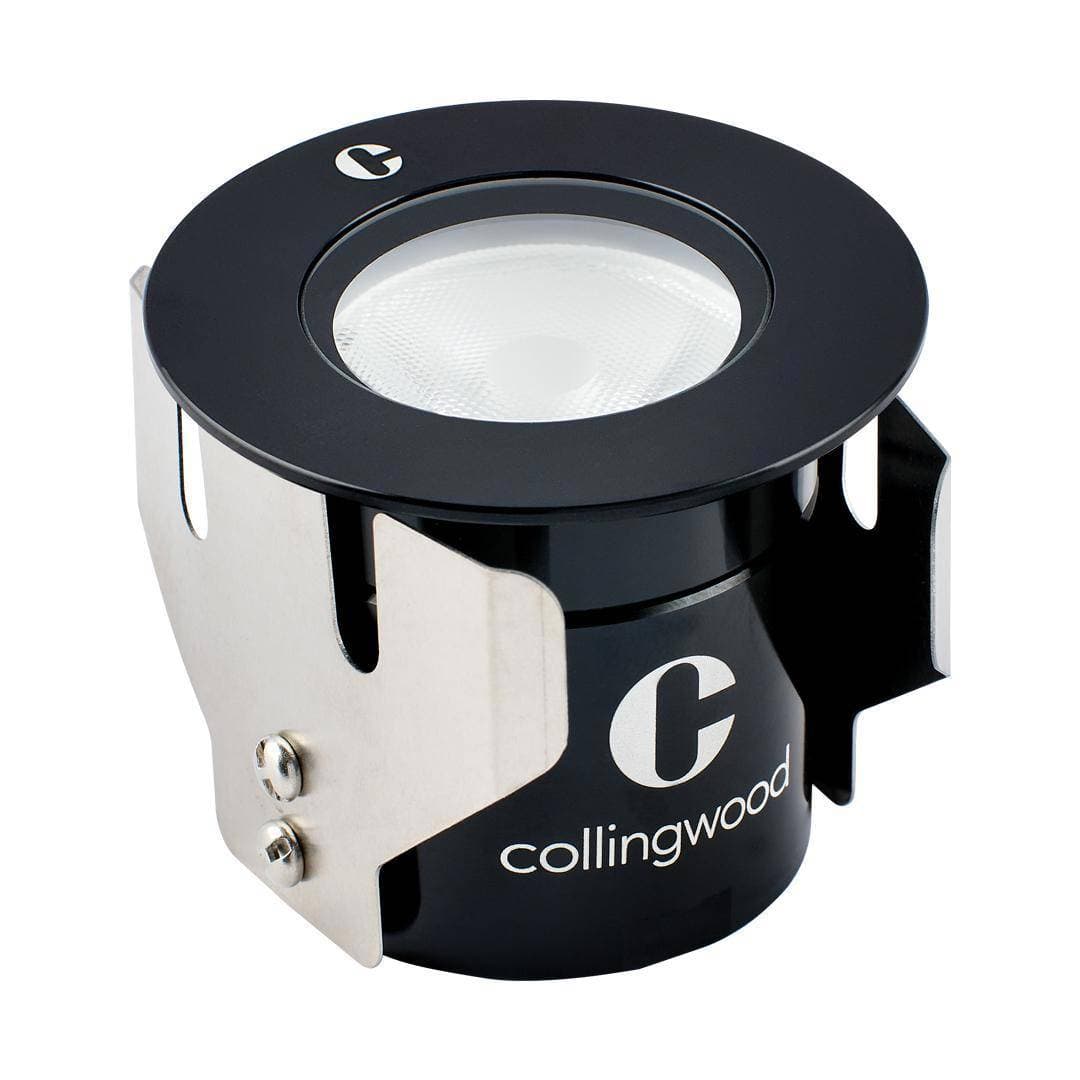

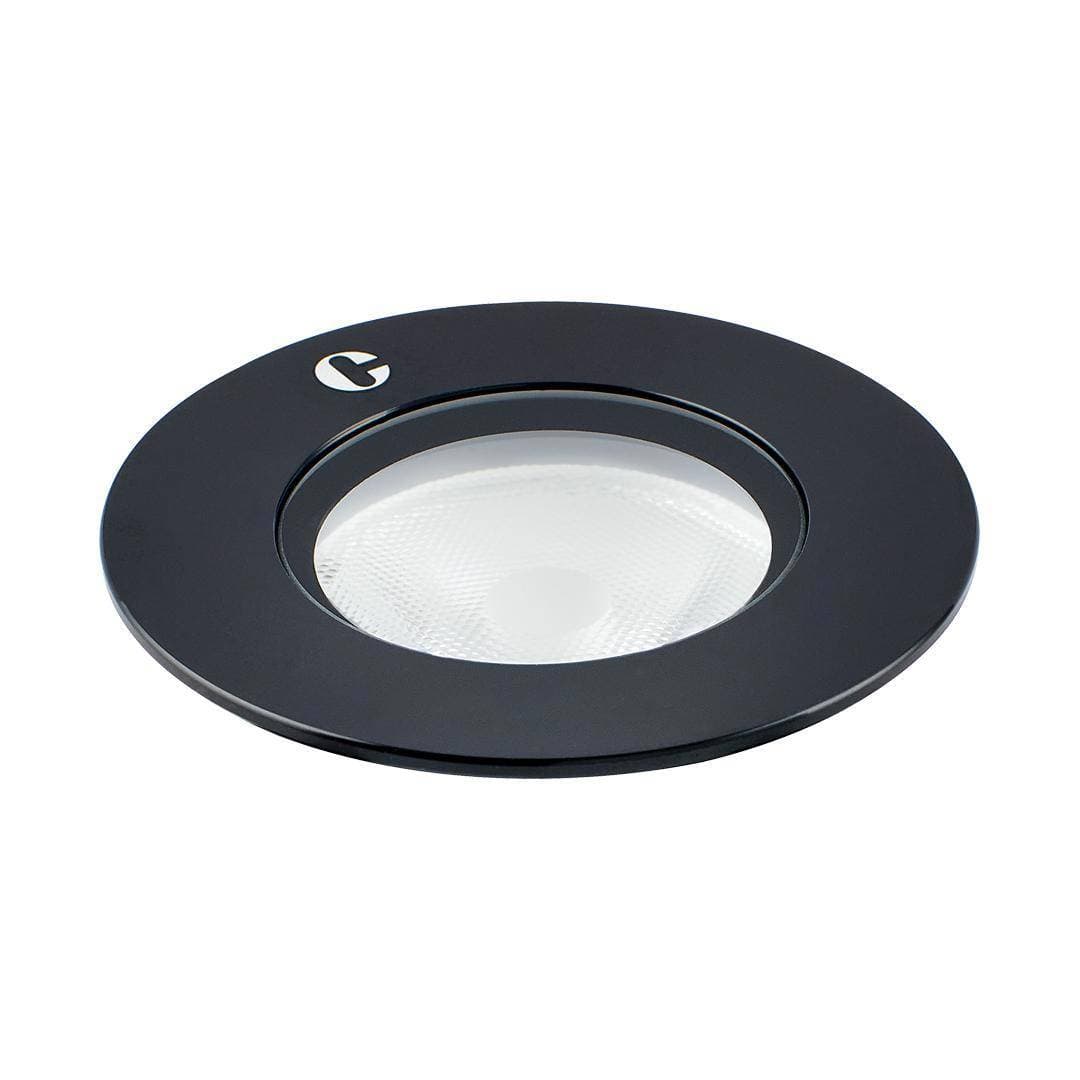

GL016RBK27S	CRI>80	IP68	50mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Black	Anodised aluminium	60	60	Not adjustable	None
GL016RBK30S	CRI>80	IP68	50mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Black	Anodised aluminium	60	60	Not adjustable	None
GL016RBK40S	CRI>80	IP68	50mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Black	Anodised aluminium	60	60	Not adjustable	None
