Nova CSP

Colour switchable between 2700k, 3000k, & 4000k
Energy efficient up to 138lm/W
Available with DALI-2, 1-10V & PUSH-DIM
Wide light emitting surface designed for superior optical control and comfortable light
Makes rooms appear larger and wider

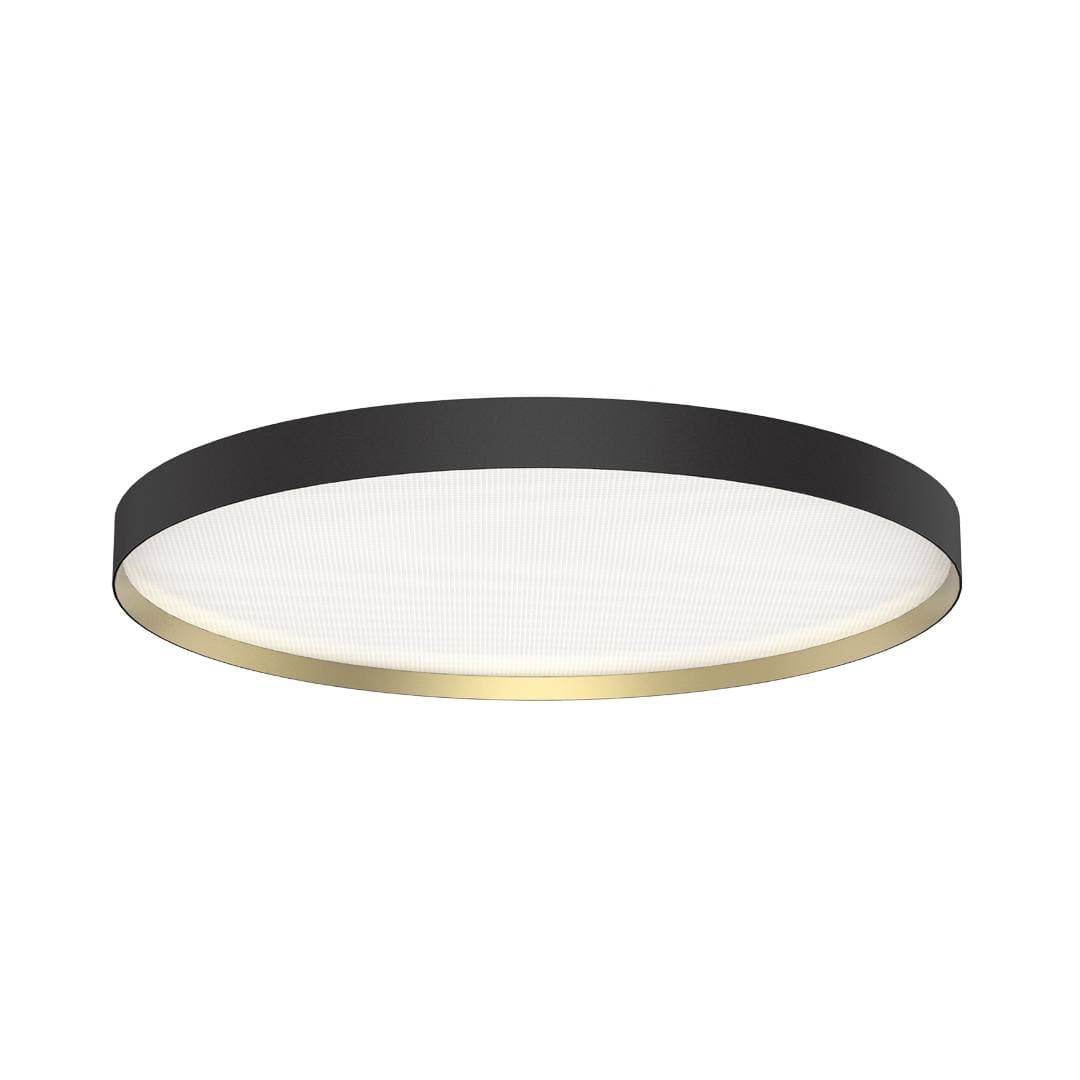

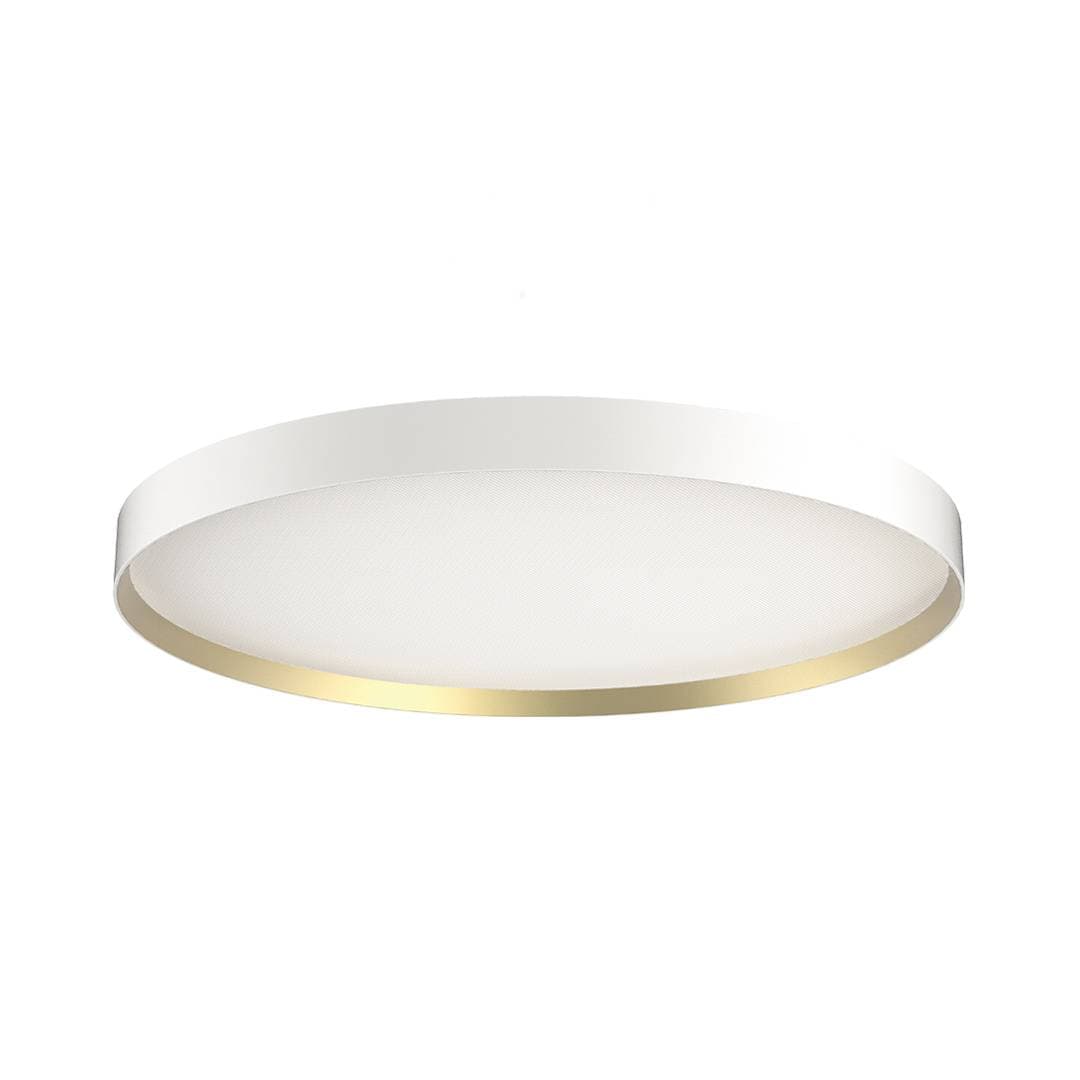

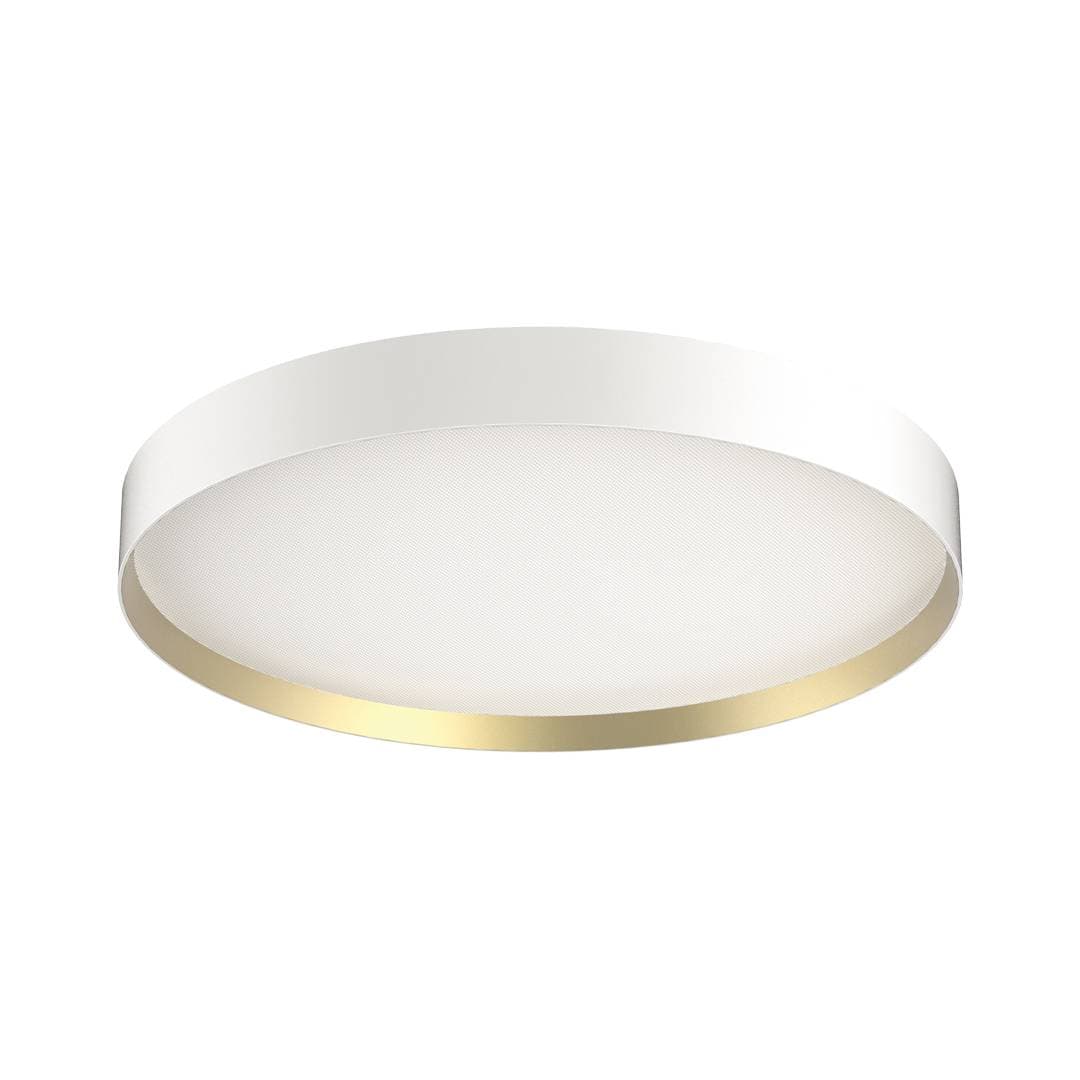

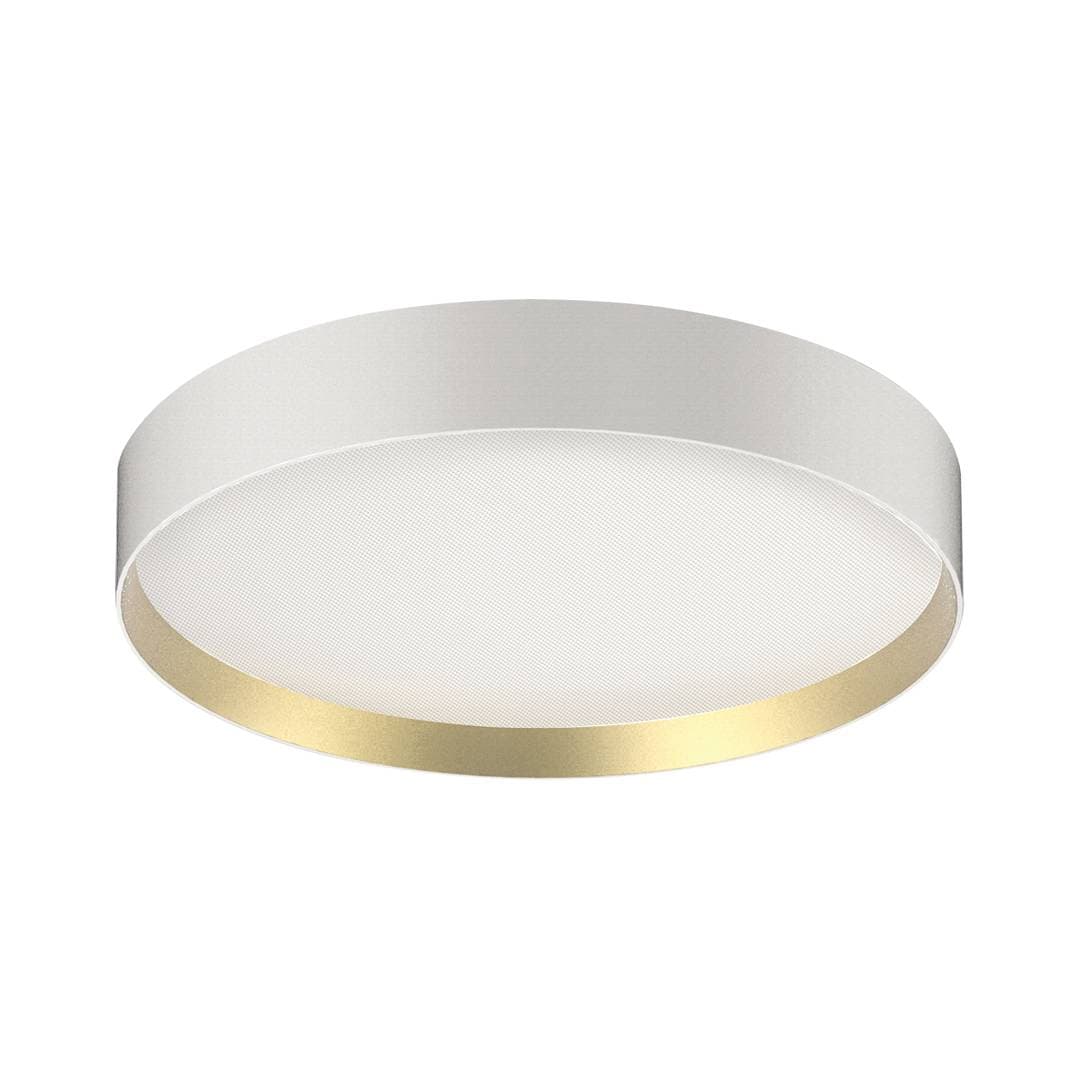

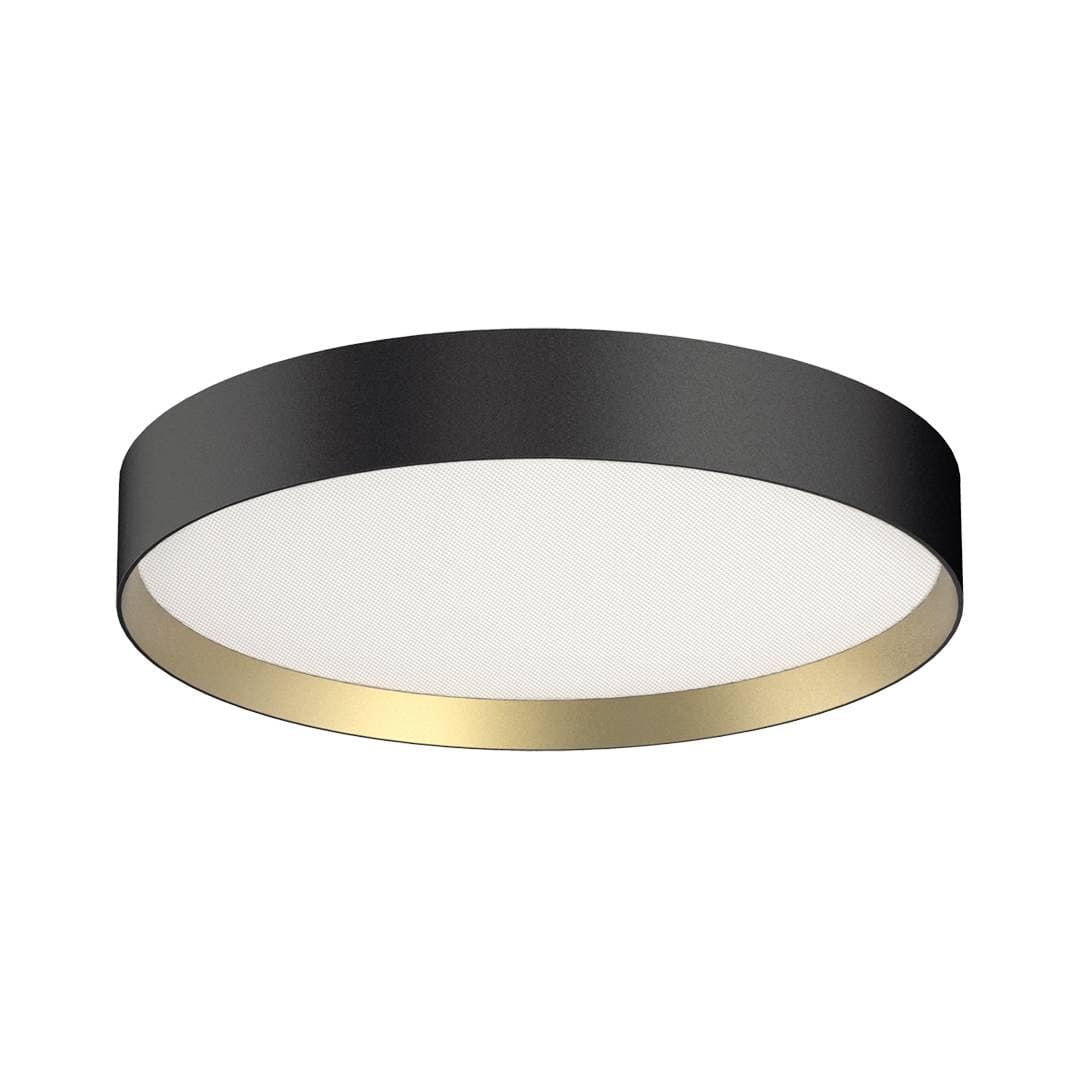

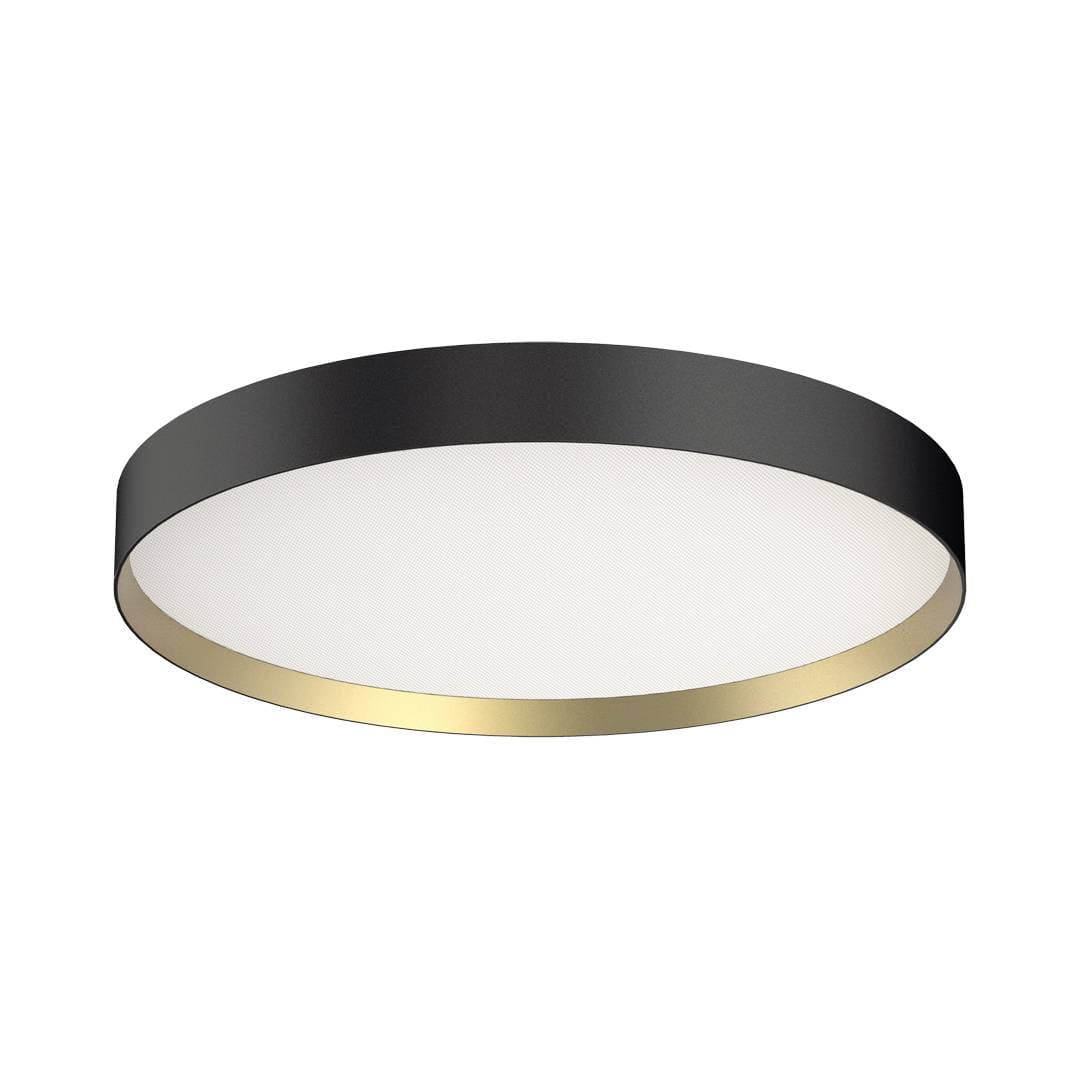

Floating impression when surface-mounted

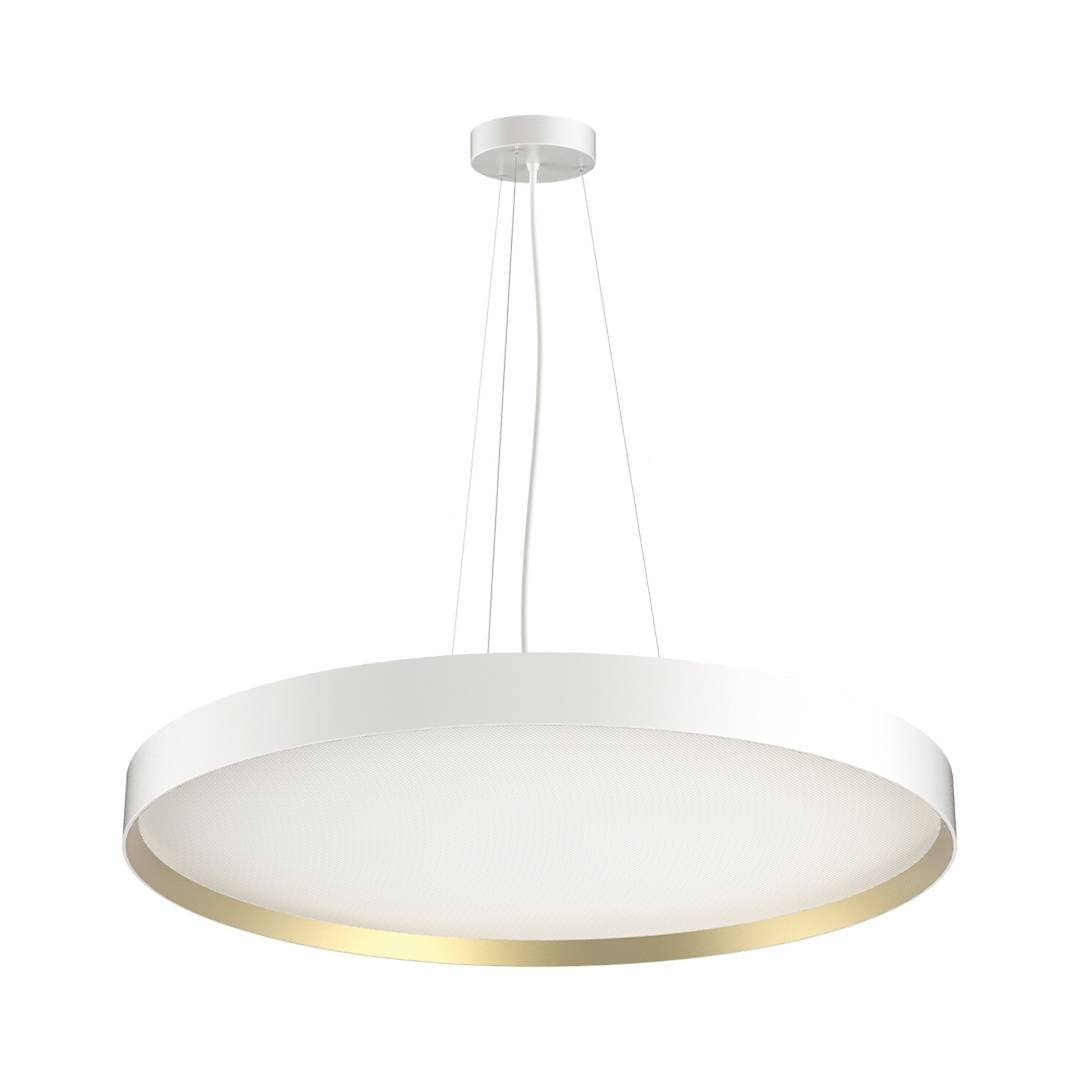

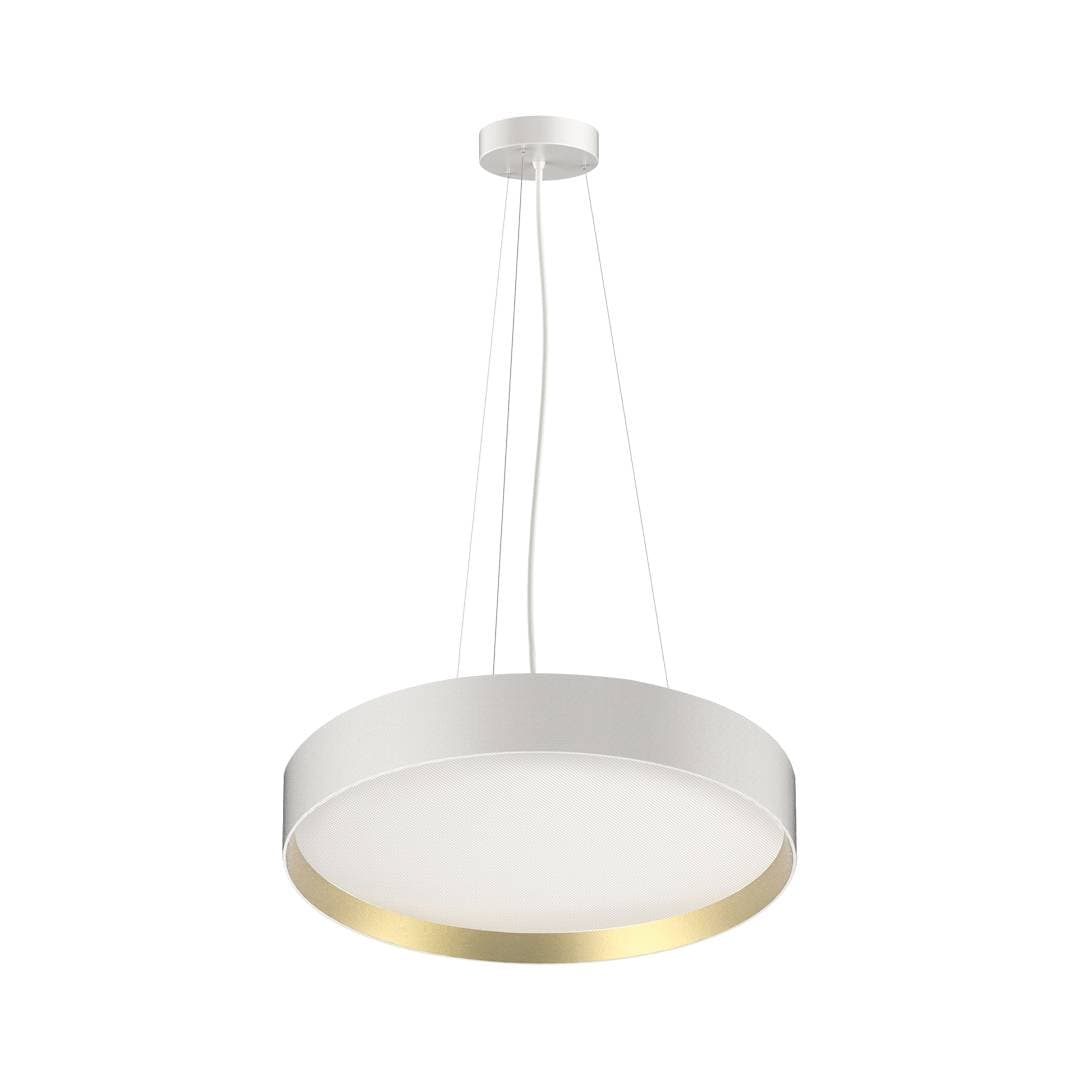

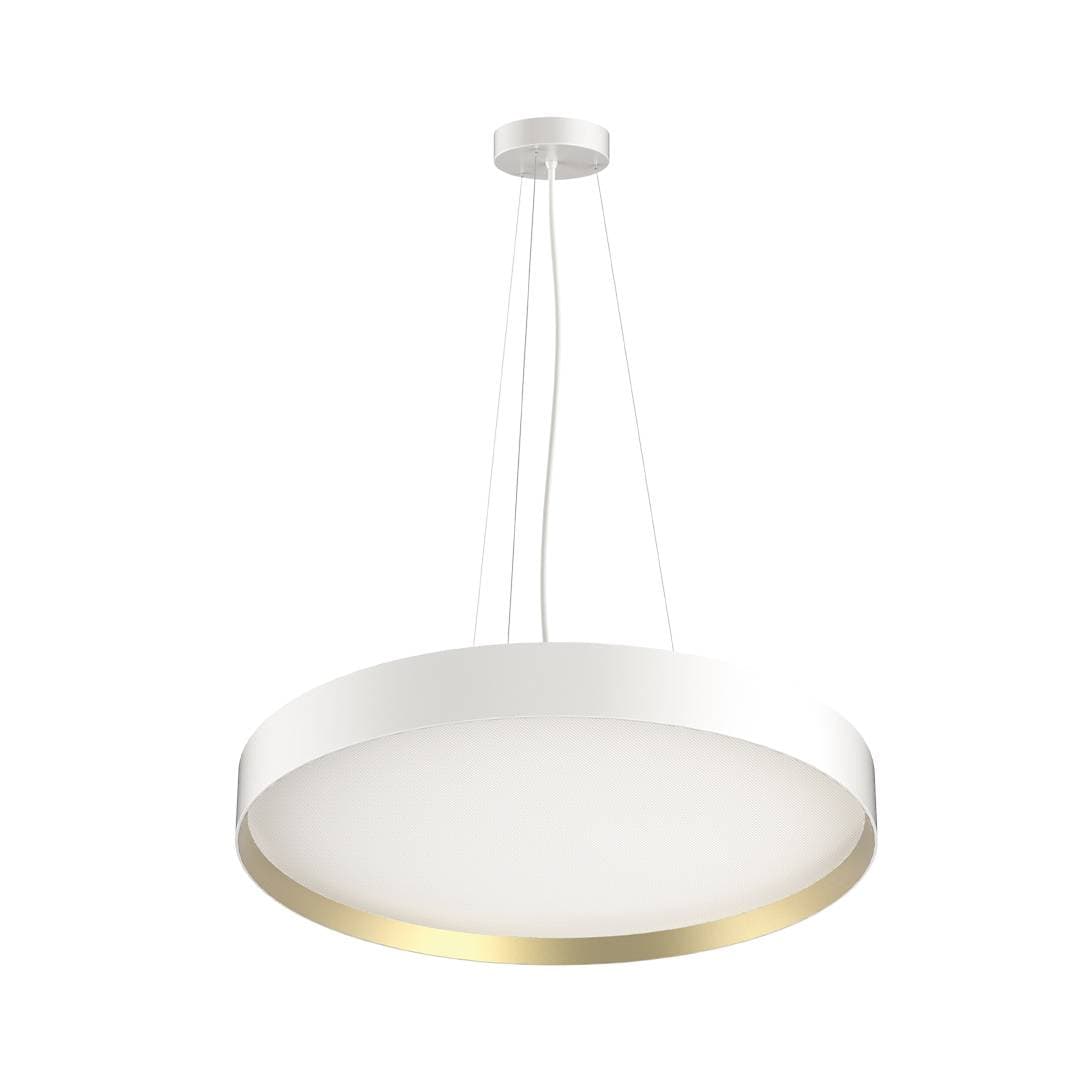

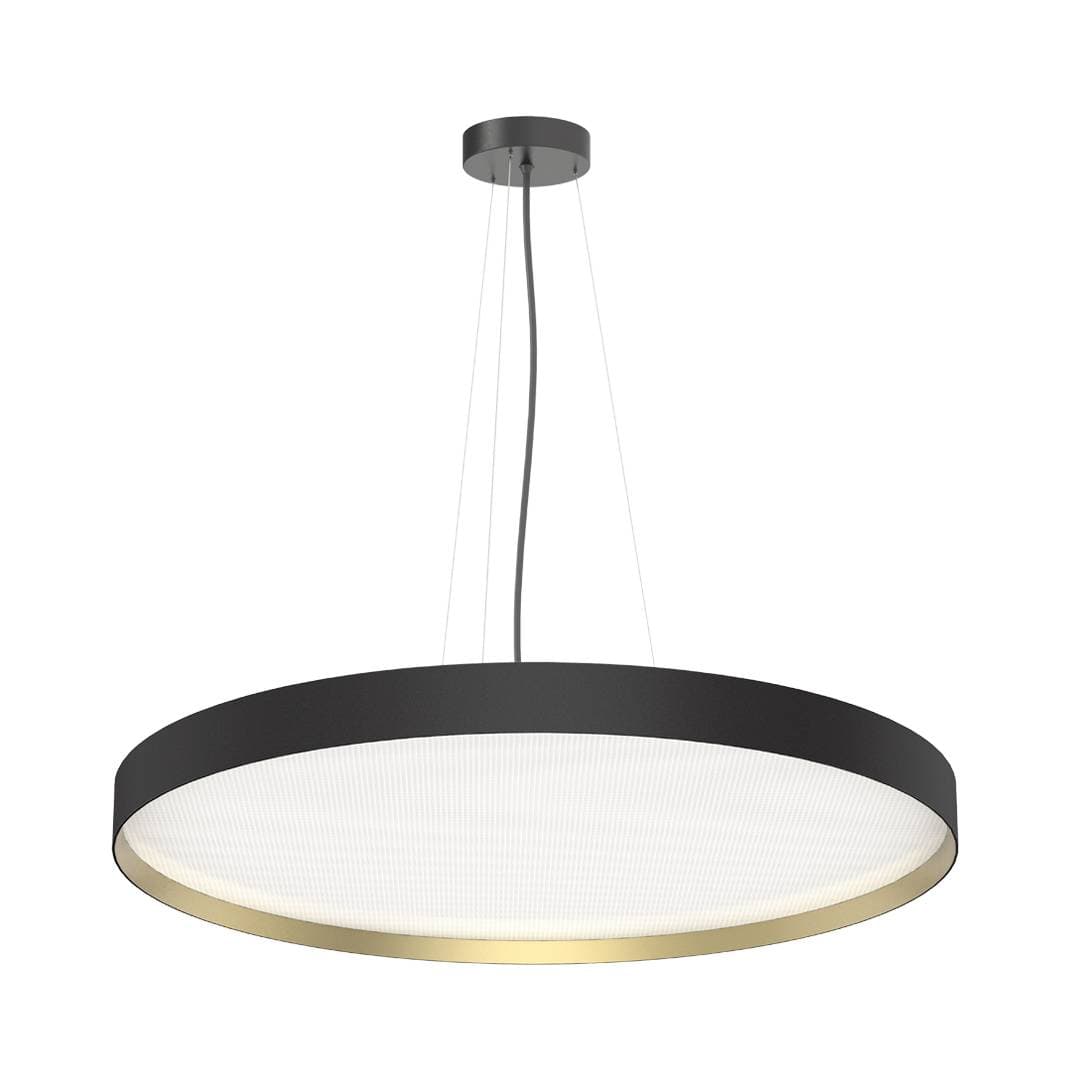

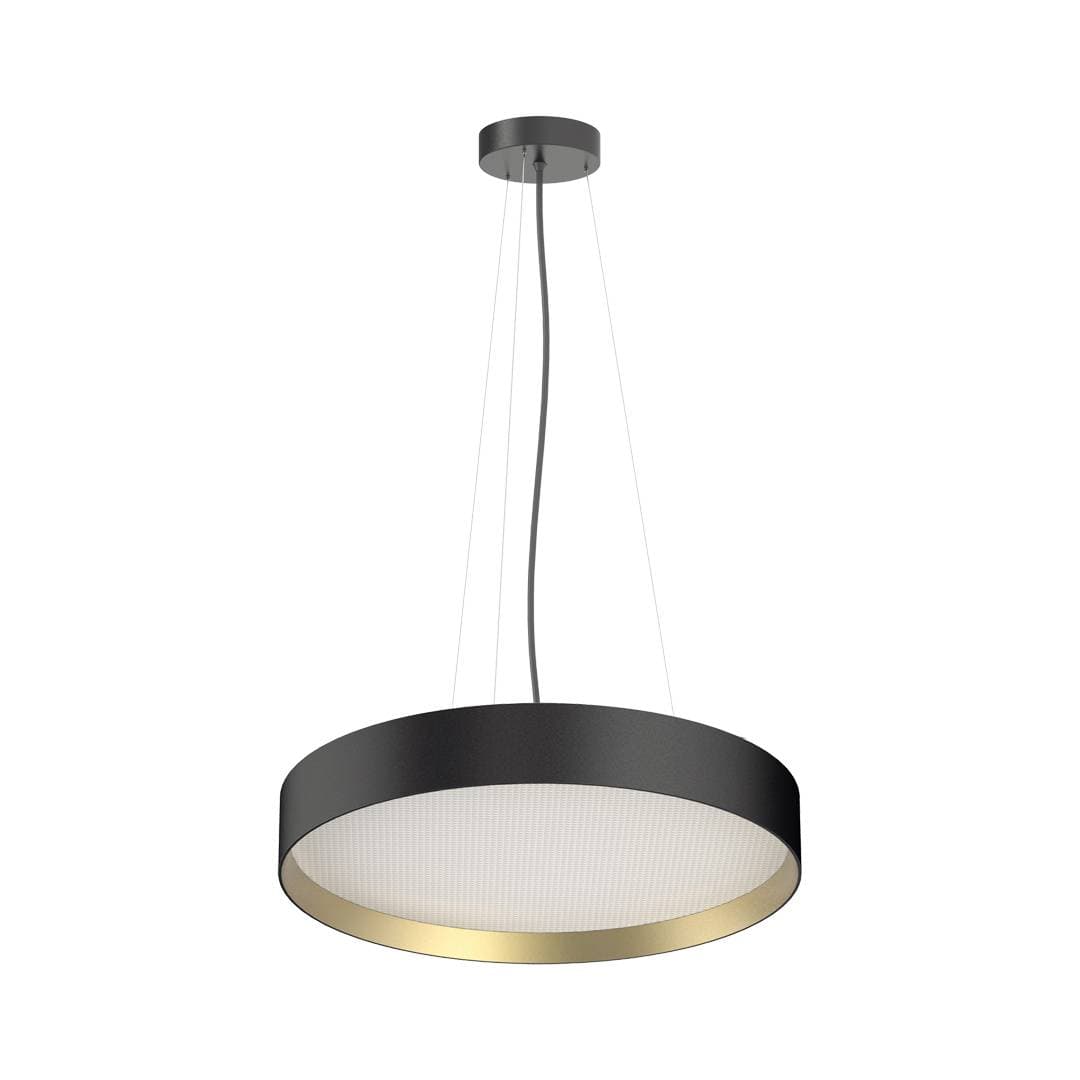

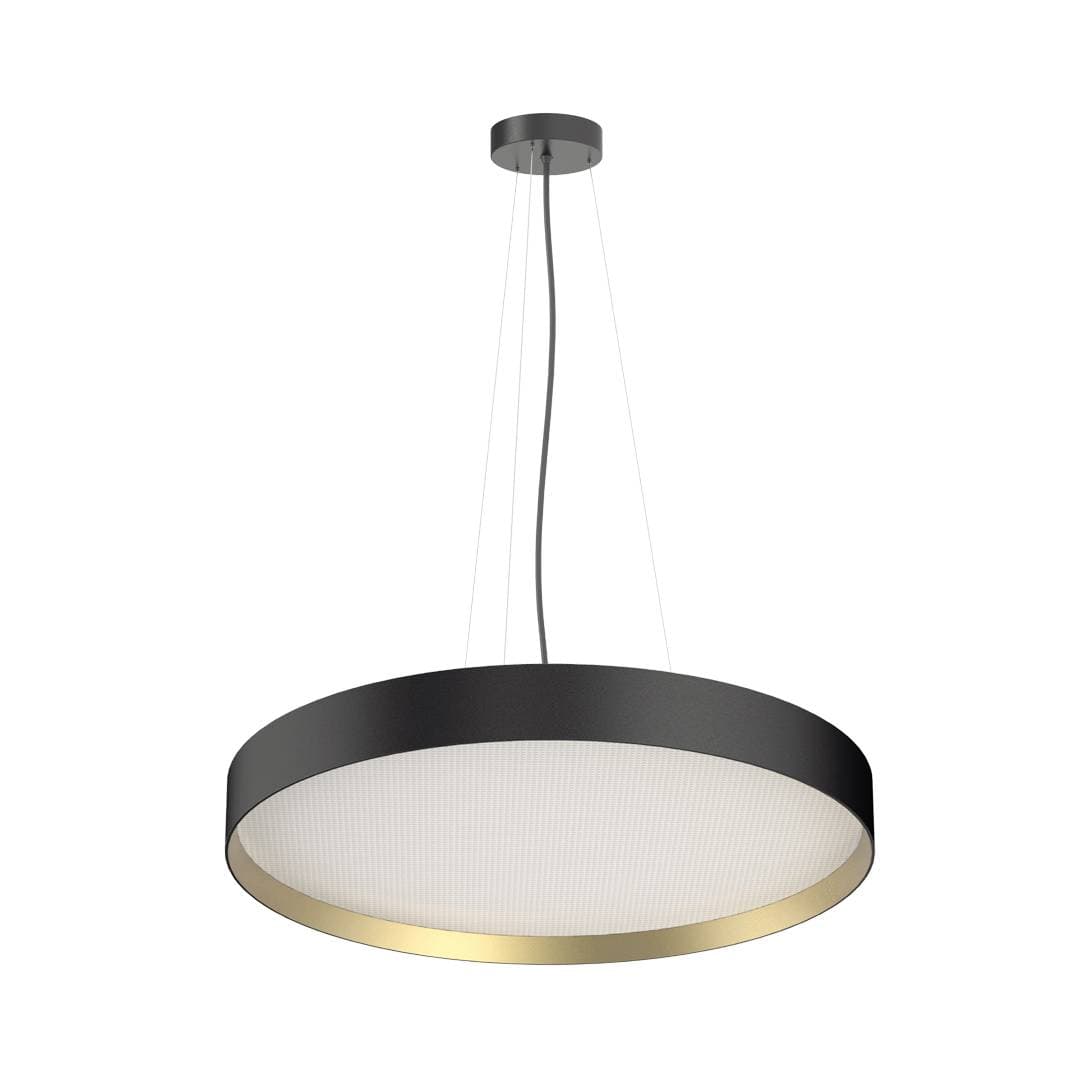

Design-led pendant can be centrepiece of any room
Wall mounted creates interest
450mm and 600mm can be wall mounted
4000K for focus scenes - 3000K for social scenes - 2700K for relaxation

Colour / Finish

Wattage / Lumens

Code	CRI	UGR	IP Rating	Dimmable Option	Body Material	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Sensor Option	Emergency Option	Mounting Type
NVB45DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	Black	26W	2700K / 3000K / 4000K	2600-2800-3000	None	None	Ceiling\|Suspended
NVB60DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	Black	40W	2700K / 3000K / 4000K	4200-4500-4800	None	None	Ceiling\|Suspended
NVB90DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	Black	68W	2700K / 3000K / 4000K	7900-8300-9000	None	None	Ceiling\|Suspended
NVW45DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	White	26W	2700K / 3000K / 4000K	2600-2800-3000	None	None	Ceiling\|Suspended
NVW60DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	White	40W	2700K / 3000K / 4000K	4200-4500-4800	None	None	Ceiling\|Suspended
NVW90DS	CRI>80	19	IP40	1-10V\|DALI-2\|PUSH-DIM	Aluminium	120°	White	68W	2700K / 3000K / 4000K	7900-8300-9000	None	None	Ceiling\|Suspended

Accessories

Find the perfect product you are looking for.

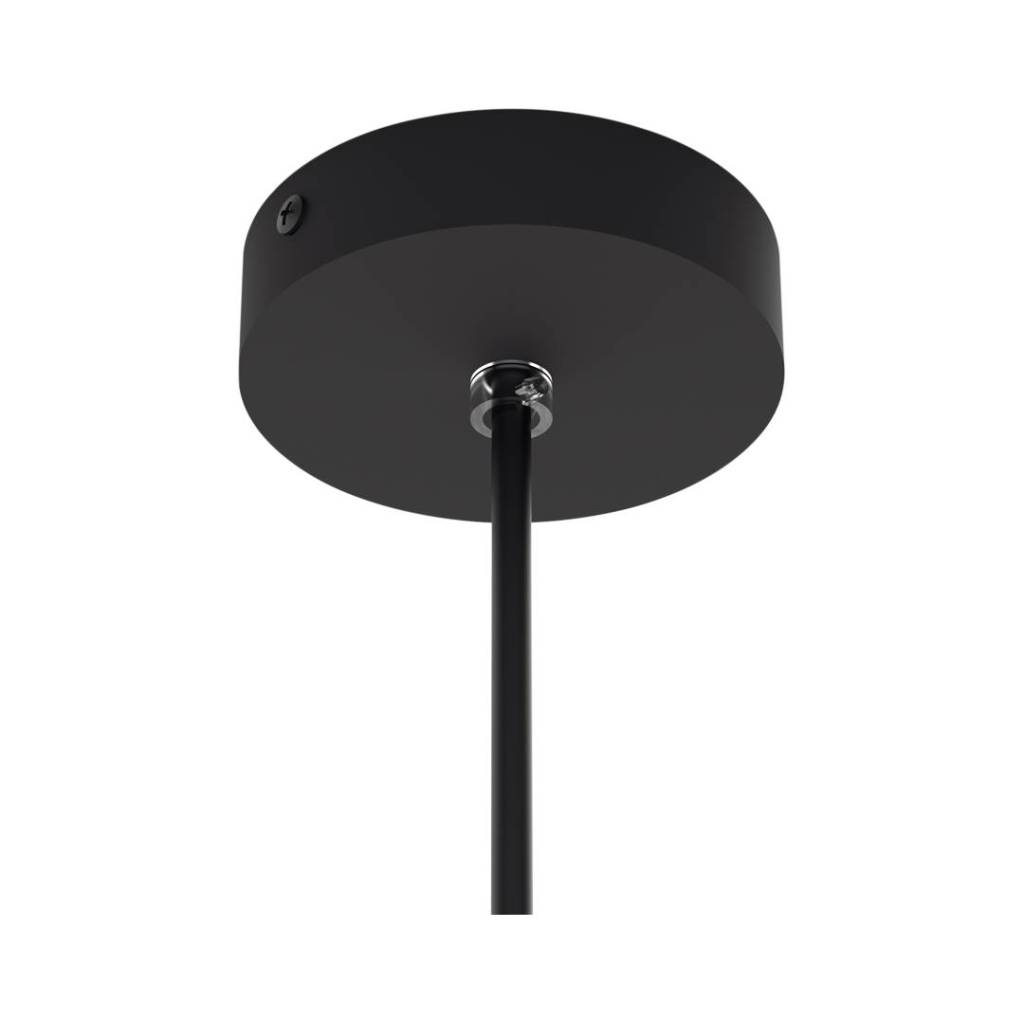

2 metre, 5 core black suspension kit

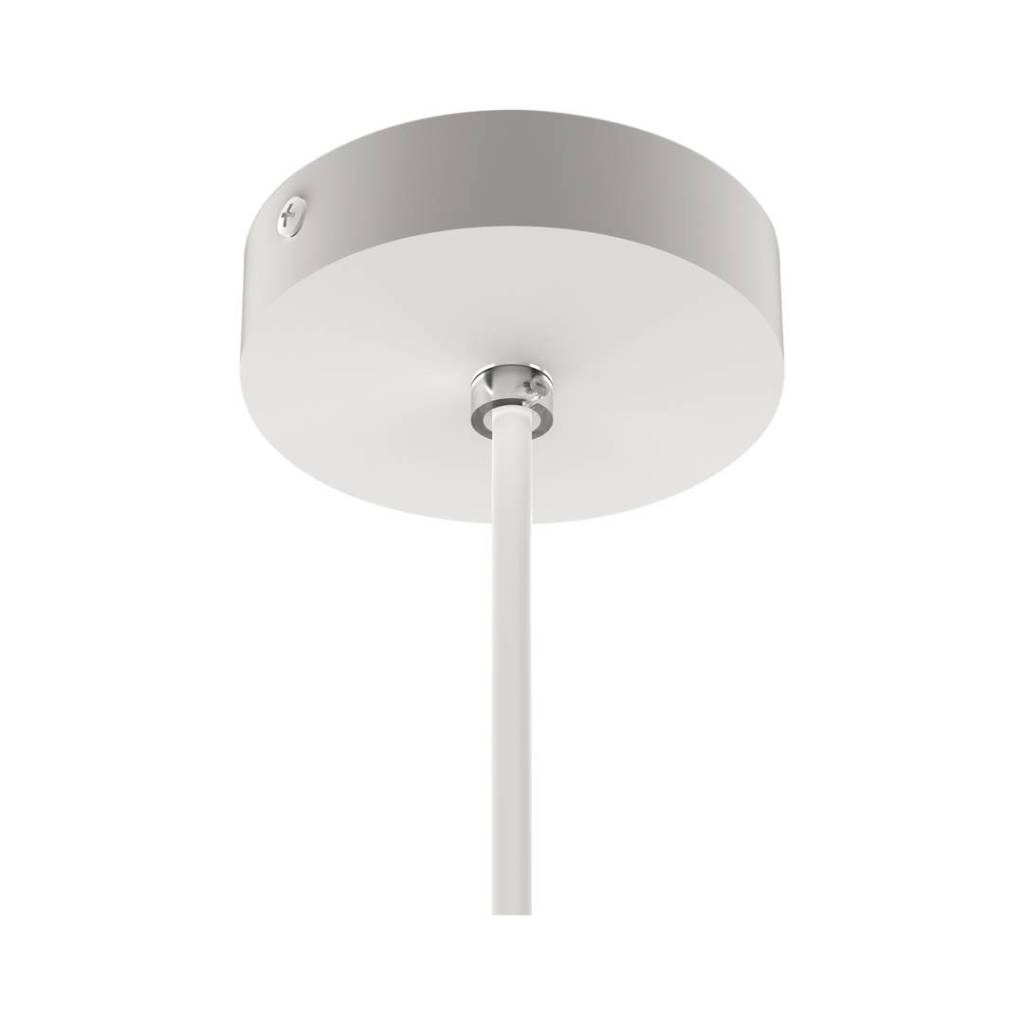

2 metre, 5 core white suspension kit
