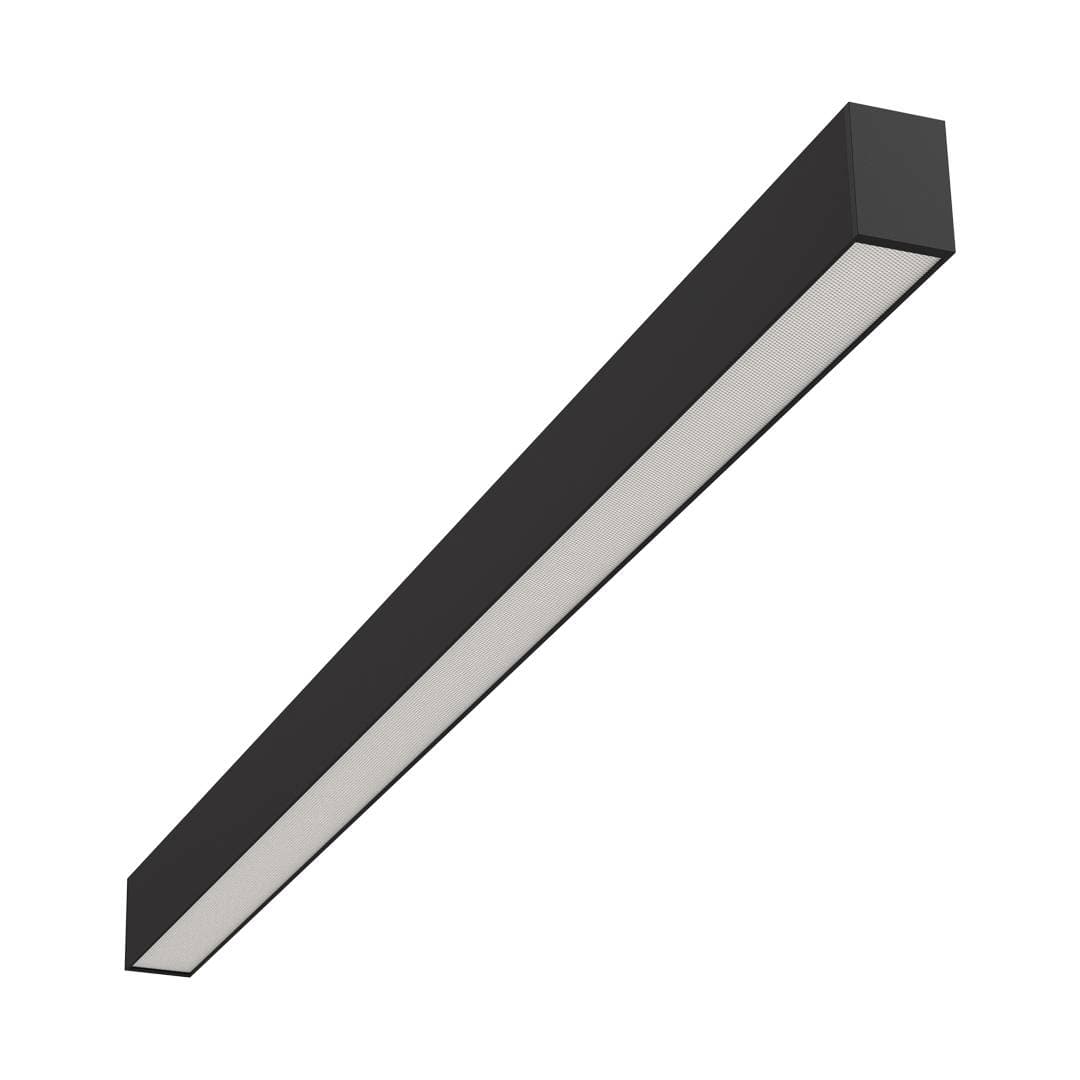

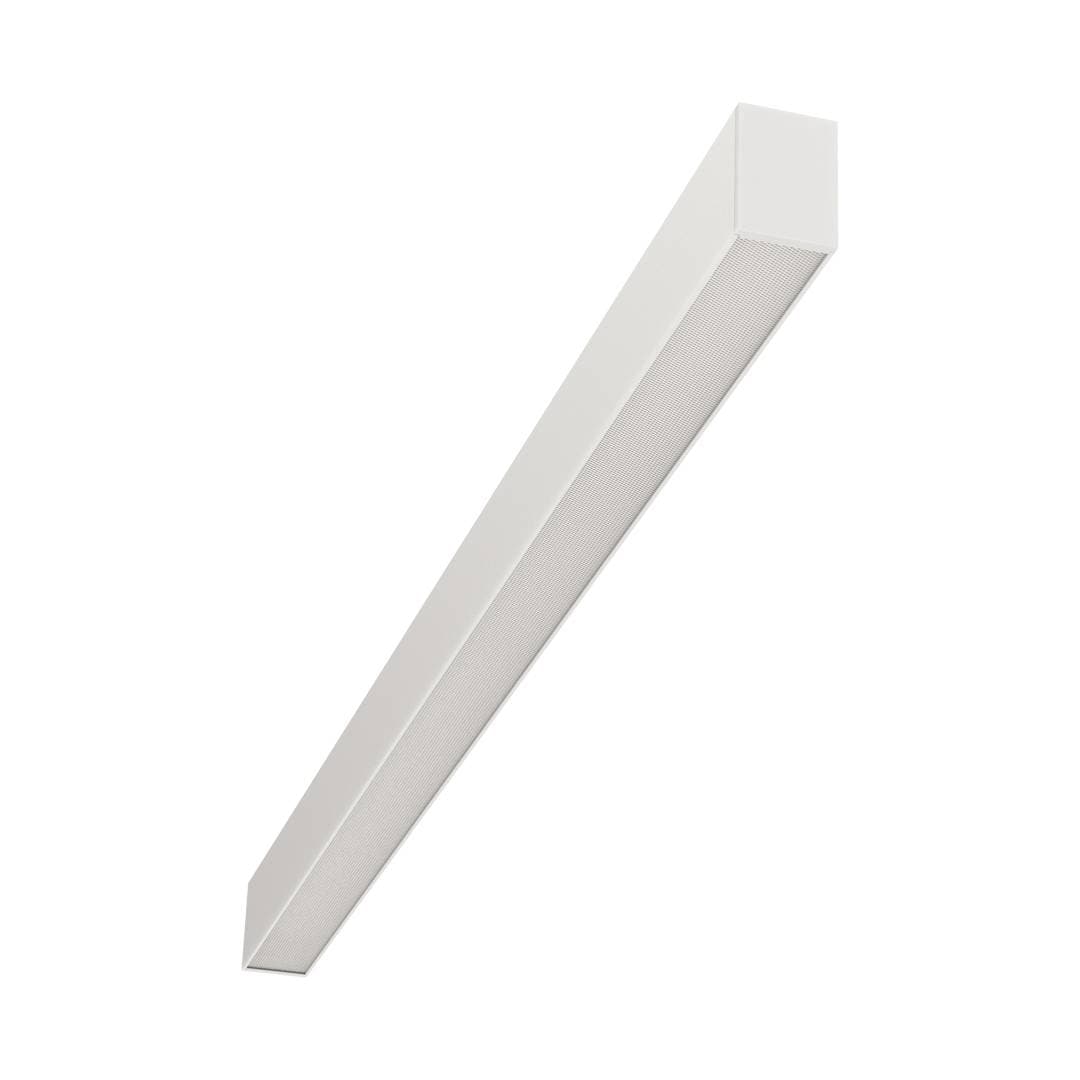

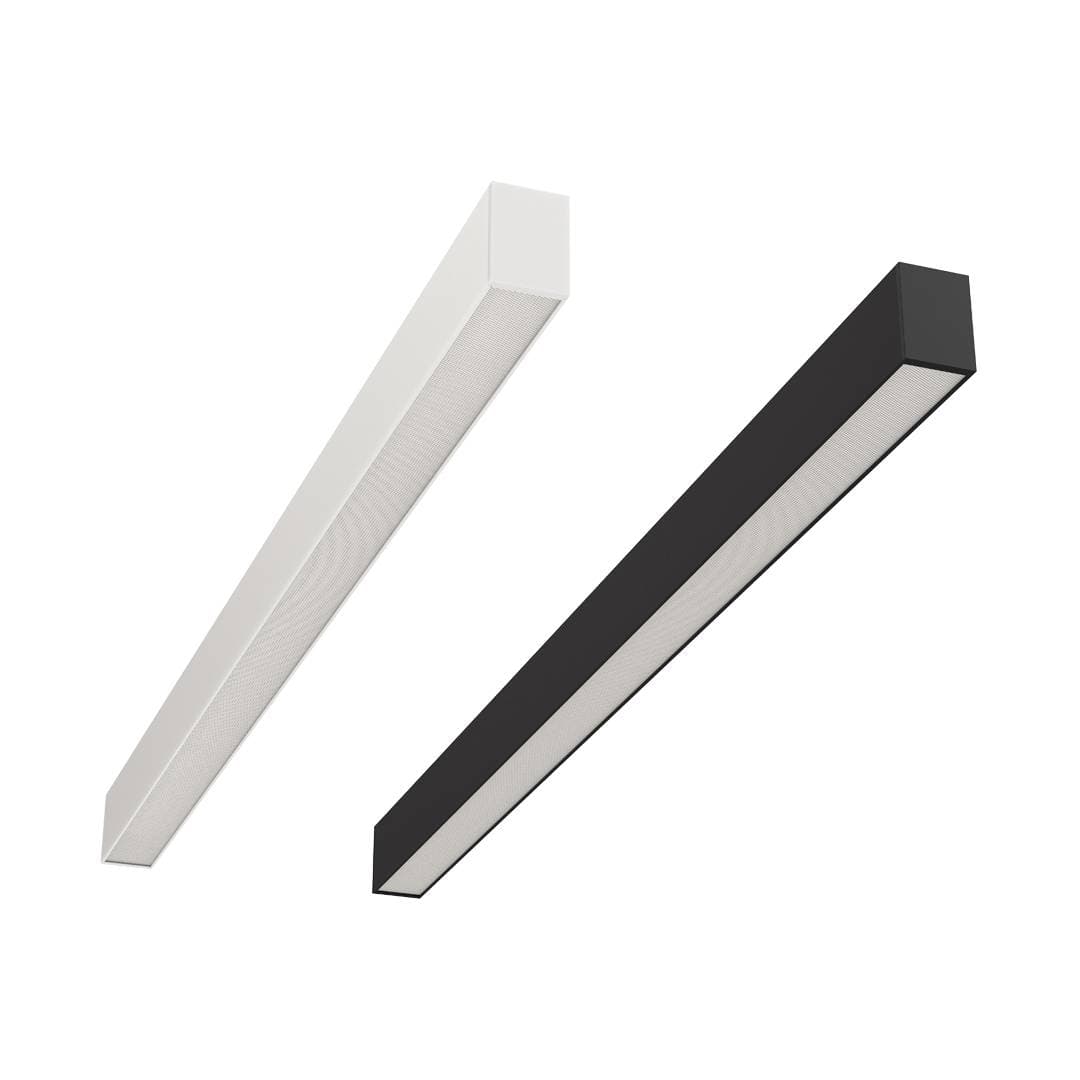

Linear Prism

Wattage Switchable between 21W to 32W
Colour Switchable between 3000K-3500K-4000K
Energy efficient up to 130Llm/W
Dimmable as standard
Must be sold with either accessory LCLBS1DCRKIT=Black / LCLW1DCRKIT=White to provide a decorative ceiling rose for the power cable
Install as an individual luminaire or create a continuous run lightline (up to 20 luminaires) using accessory LCLCONKIT

Colour / Finish

Emergency Option

Wattage / Lumens

Code	CRI	UGR	IP Rating	Beam Angle	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Sensor Option	Dimmable Option	Emergency Option	Mounting Type	Body Material	Width	Length
LPLW1D	CRI>80	22	IP20	67°	21-31W	3000K / 3500K / 4000K	2650-4000	White	None	DALI-2\|PUSH-DIM	None	Ceiling\|Suspended	ABS\|Aluminium	50	1,200
LPLW1DES	CRI>80	22	IP20	67°	21-31W	3000K / 3500K / 4000K	2650-4000	White	None	DALI-2\|PUSH-DIM	Self-Test	Ceiling\|Suspended	ABS\|Aluminium	50	1,200
LPLB1D	CRI>80	22	IP20	67°	21-31W	3000K / 3500K / 4000K	2300-3400	Black	None	DALI-2\|PUSH-DIM	None	Ceiling\|Suspended	ABS\|Aluminium	50	1,200
LPLB1DES	CRI>80	22	IP20	67°	21-31W	3000K / 3500K / 4000K	2300-3400	Black	None	DALI-2\|PUSH-DIM	Self-Test	Ceiling\|Suspended	ABS\|Aluminium	50	1,200
