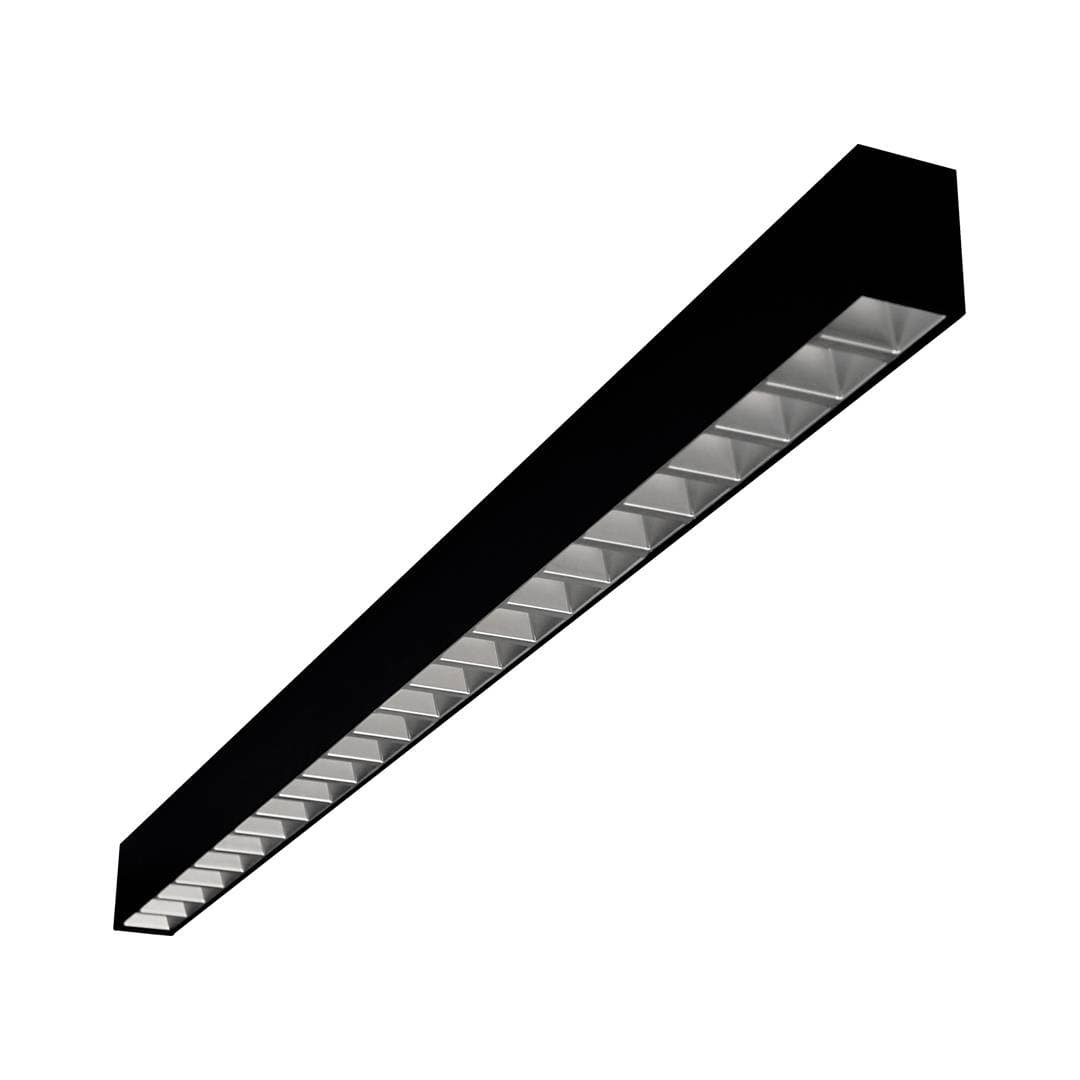

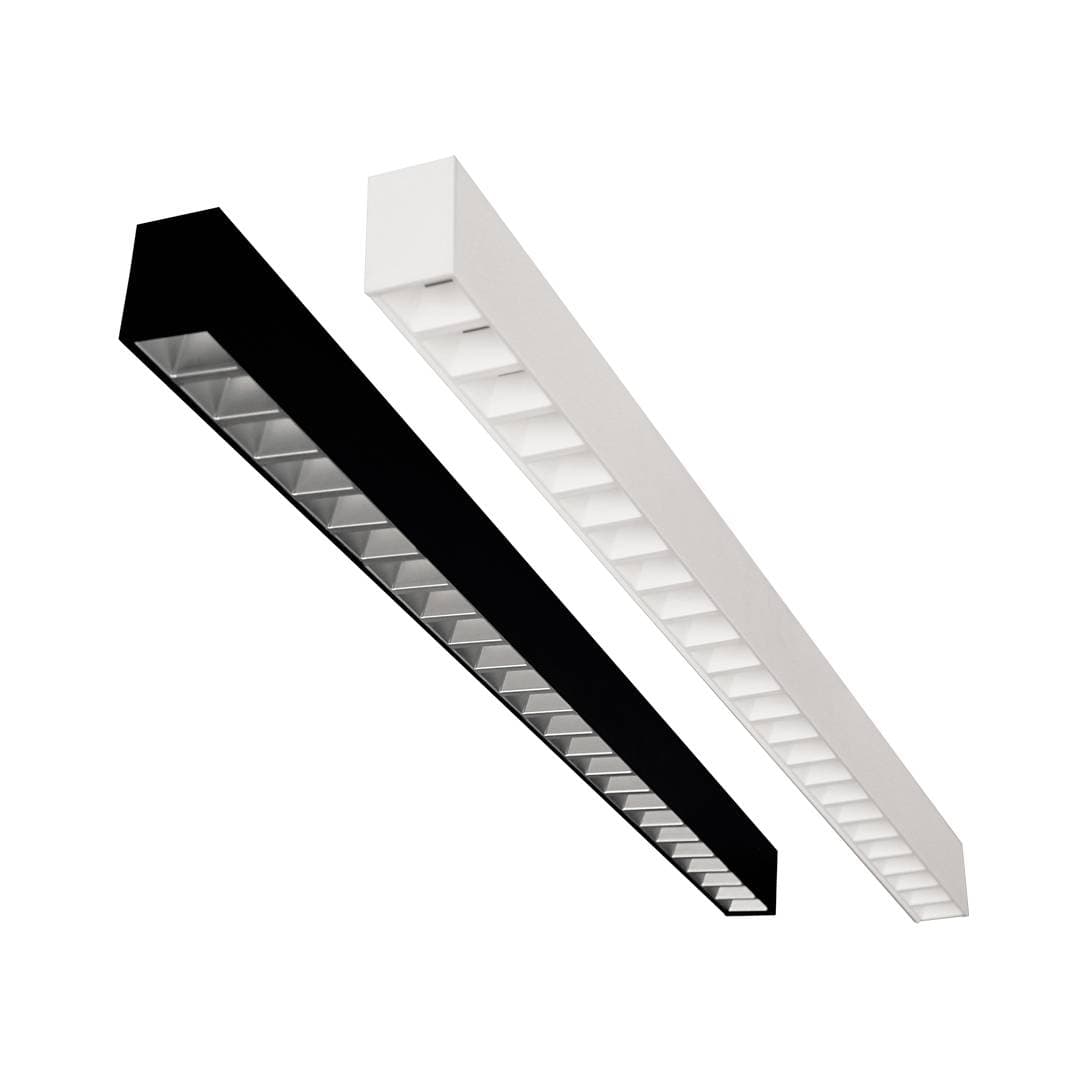

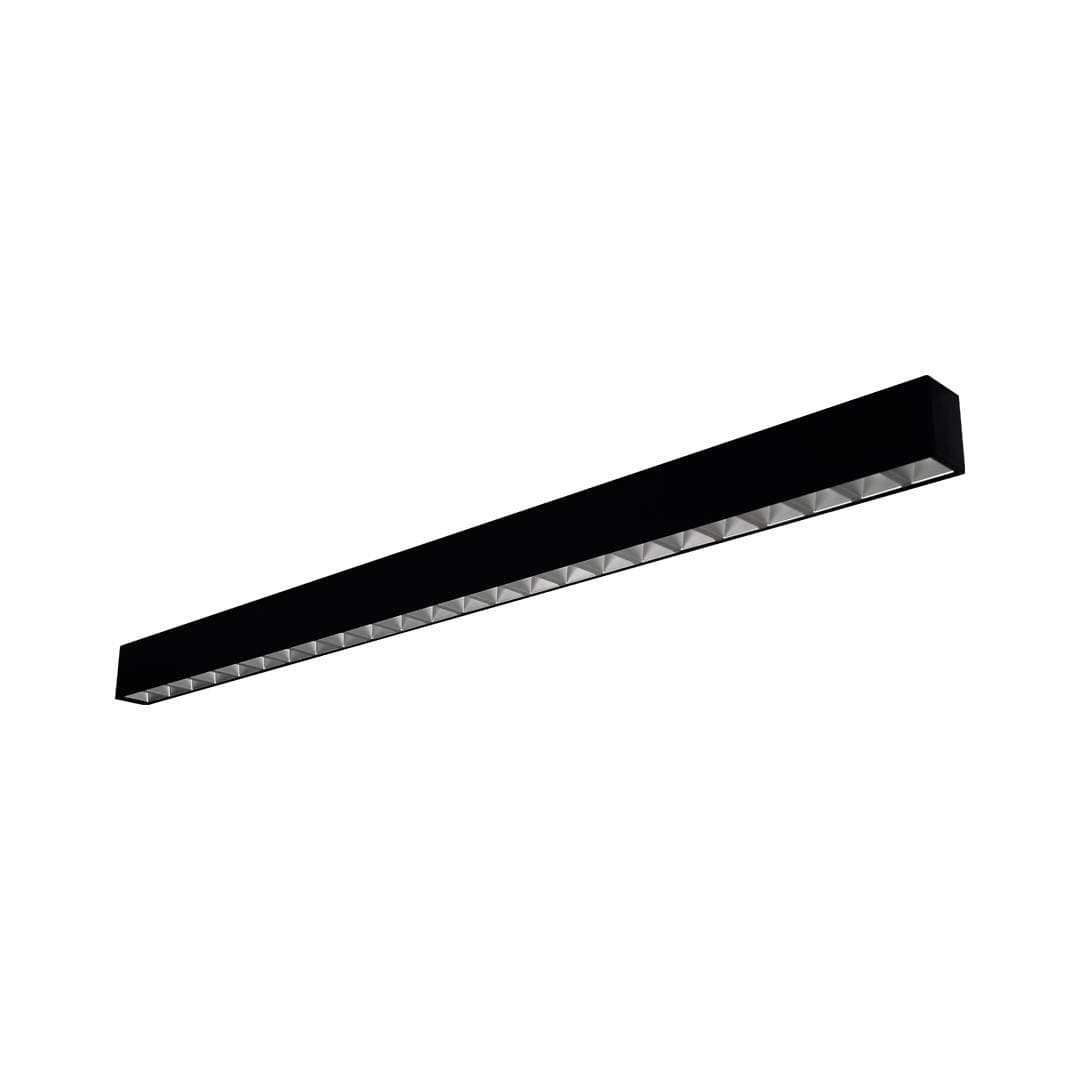

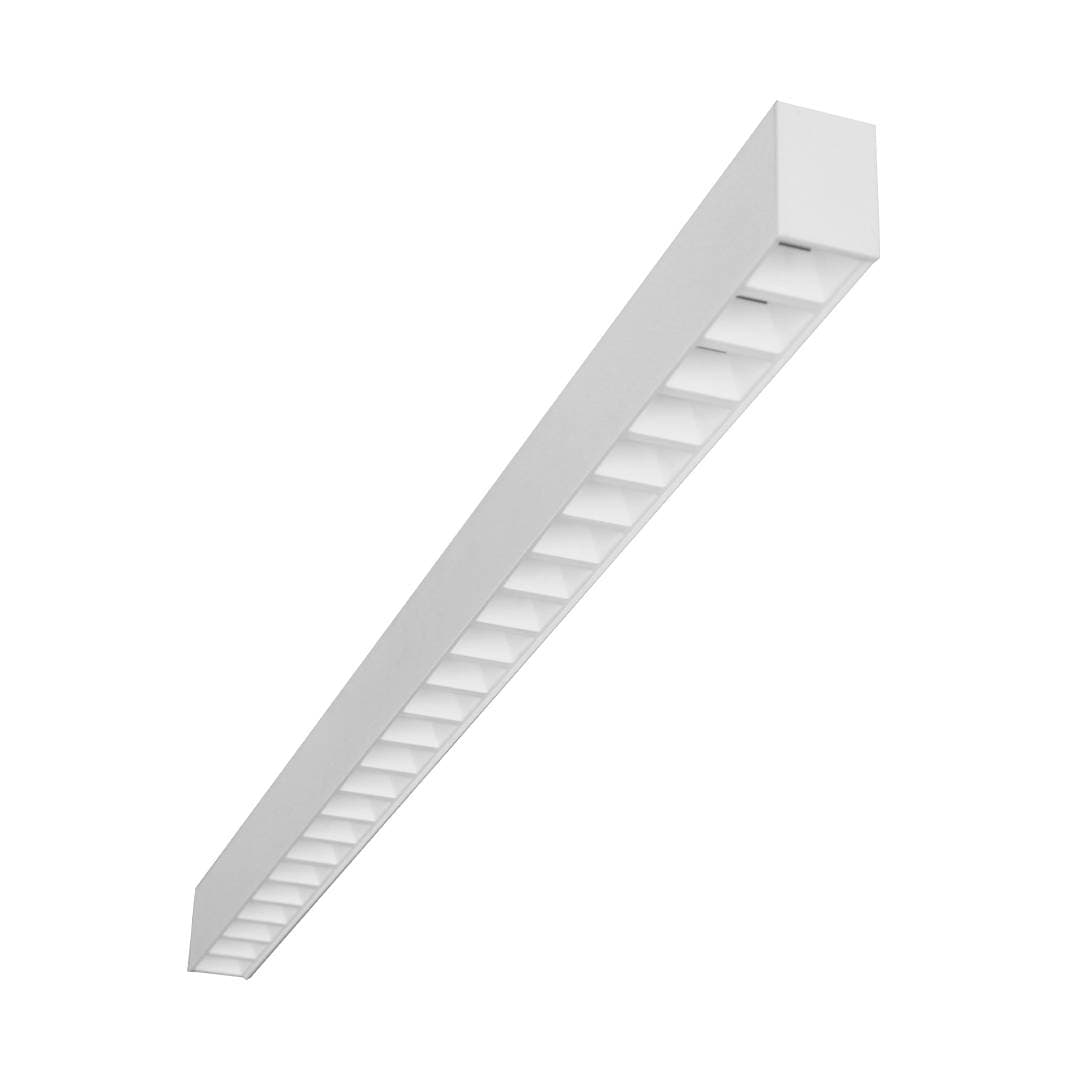

Linear Cell 4ft

Colour Switchable between 3000K-3500K-4000K
Contributes to a UGR19 lighting design
Energy efficient up to 130Llm/W
On-Off or Dimmable as standard
Must be sold with either accessory LCLBS1DCRKIT=Black / LCLW1DCRKIT=White to provide a decorative ceiling rose for the power cable
Install as an individual luminaire or create a continuous run lightline (up to 20 luminaires) using accessory LCLCONKIT
DALI-2 driver is switchable to enable lower lumen outputs

Colour / Finish

Emergency Option

Code	CRI	UGR	IP Rating	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Emergency Option	Sensor Option
LCLW1D	CRI>80	19	IP20	DALI-2\|PUSH-DIM	ABS\|Aluminium	Ceiling\|Suspended	75°	White	38W	3000K / 4000K	5000-4600	None	None
LCLW1DEM	CRI>80	19	IP20	DALI-2\|PUSH-DIM	ABS\|Aluminium	Ceiling\|Suspended	75°	White	38W	3000K / 4000K	5000-4600	Self-Test	None
LCLBS1D	CRI>80	19	IP20	DALI-2\|PUSH-DIM	ABS\|Aluminium	Ceiling\|Suspended	70°	Black	38W	3000K / 4000K	5000-4600	None	None
LCLBS1DEM	CRI>80	19	IP20	DALI-2\|PUSH-DIM	ABS\|Aluminium	Ceiling\|Suspended	70°	Black	38W	3000K / 4000K	5000-4600	Self-Test	None

Accessories

Find the perfect product you are looking for.

Ceiling Rose Kit, DALI/Push

Light Line Connect Kit
