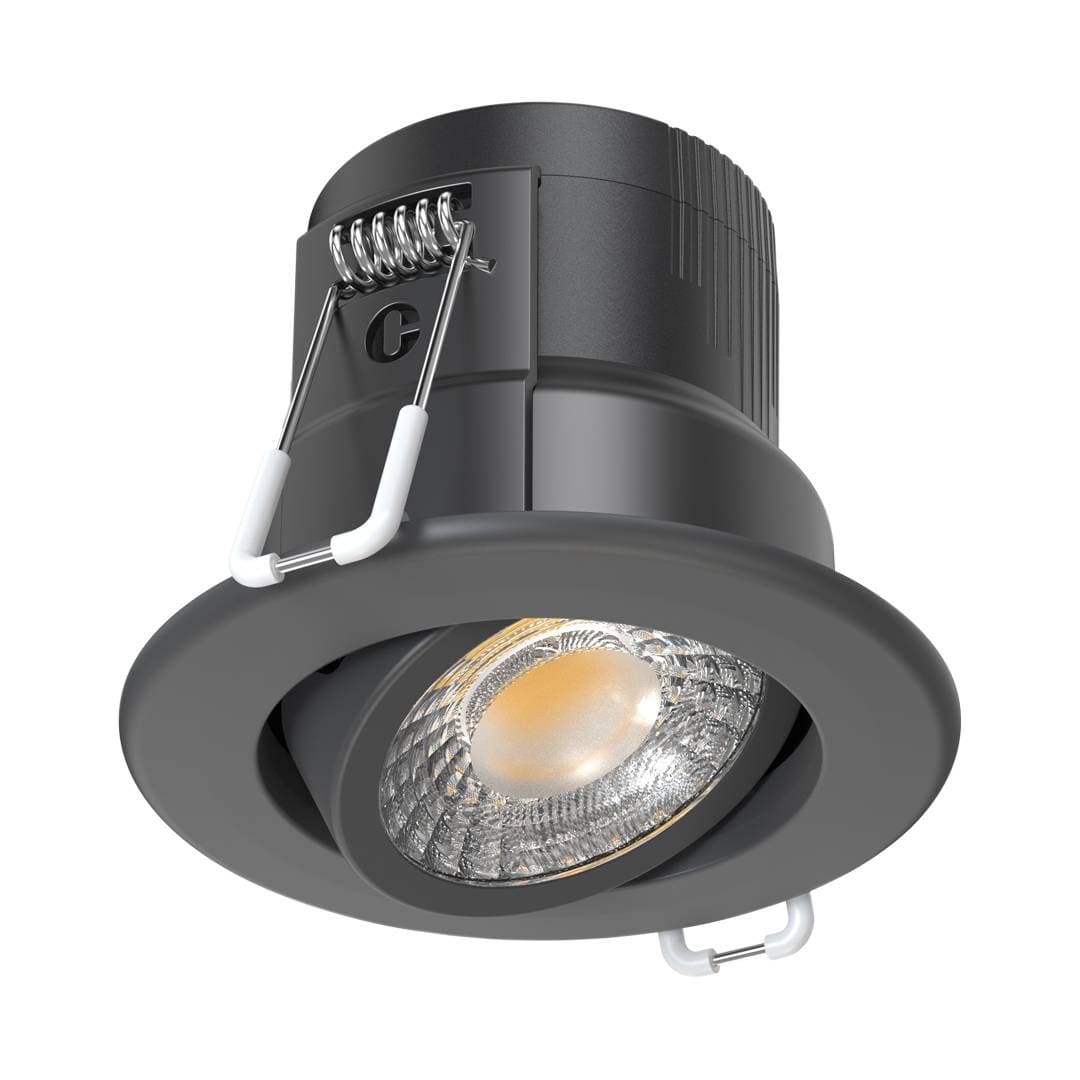

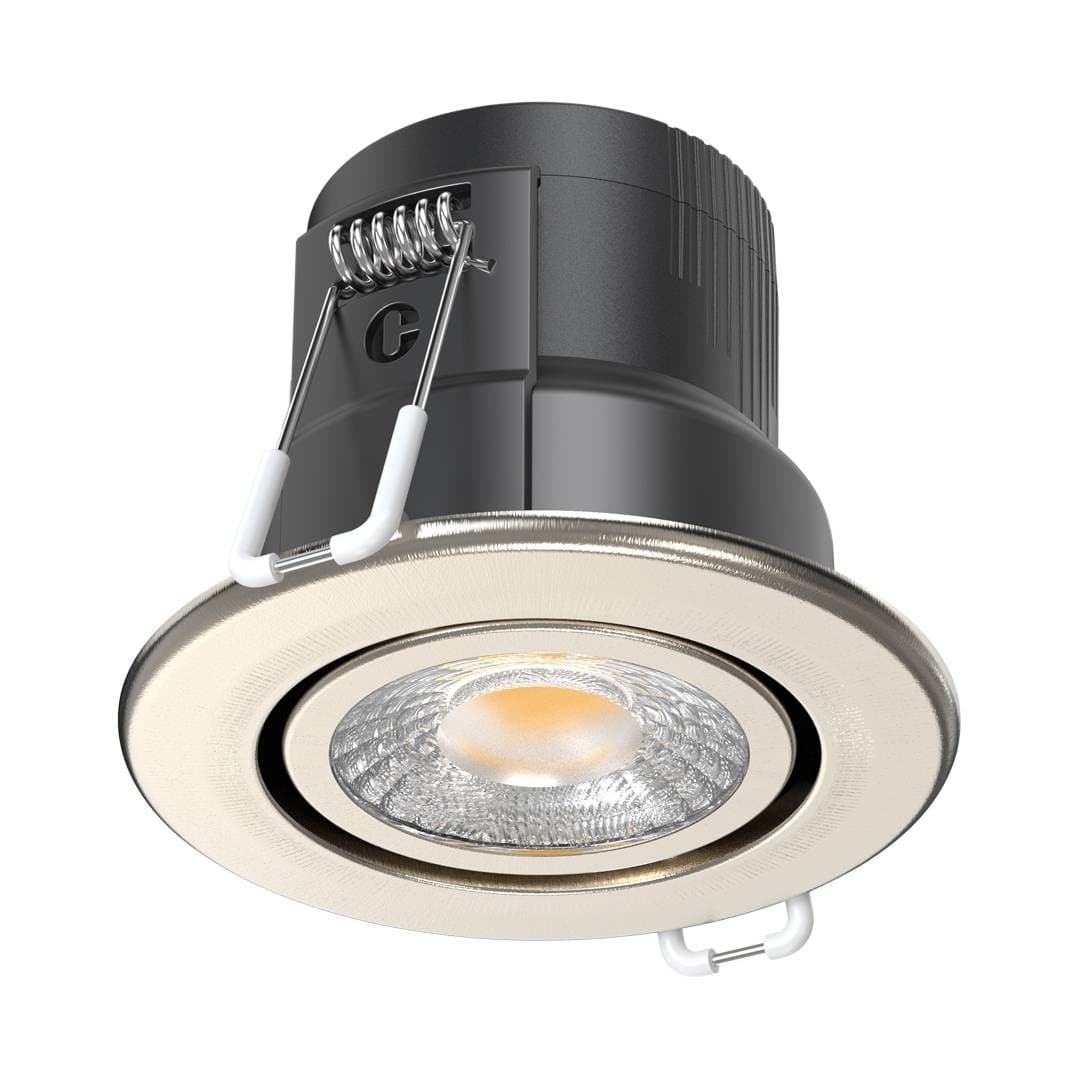

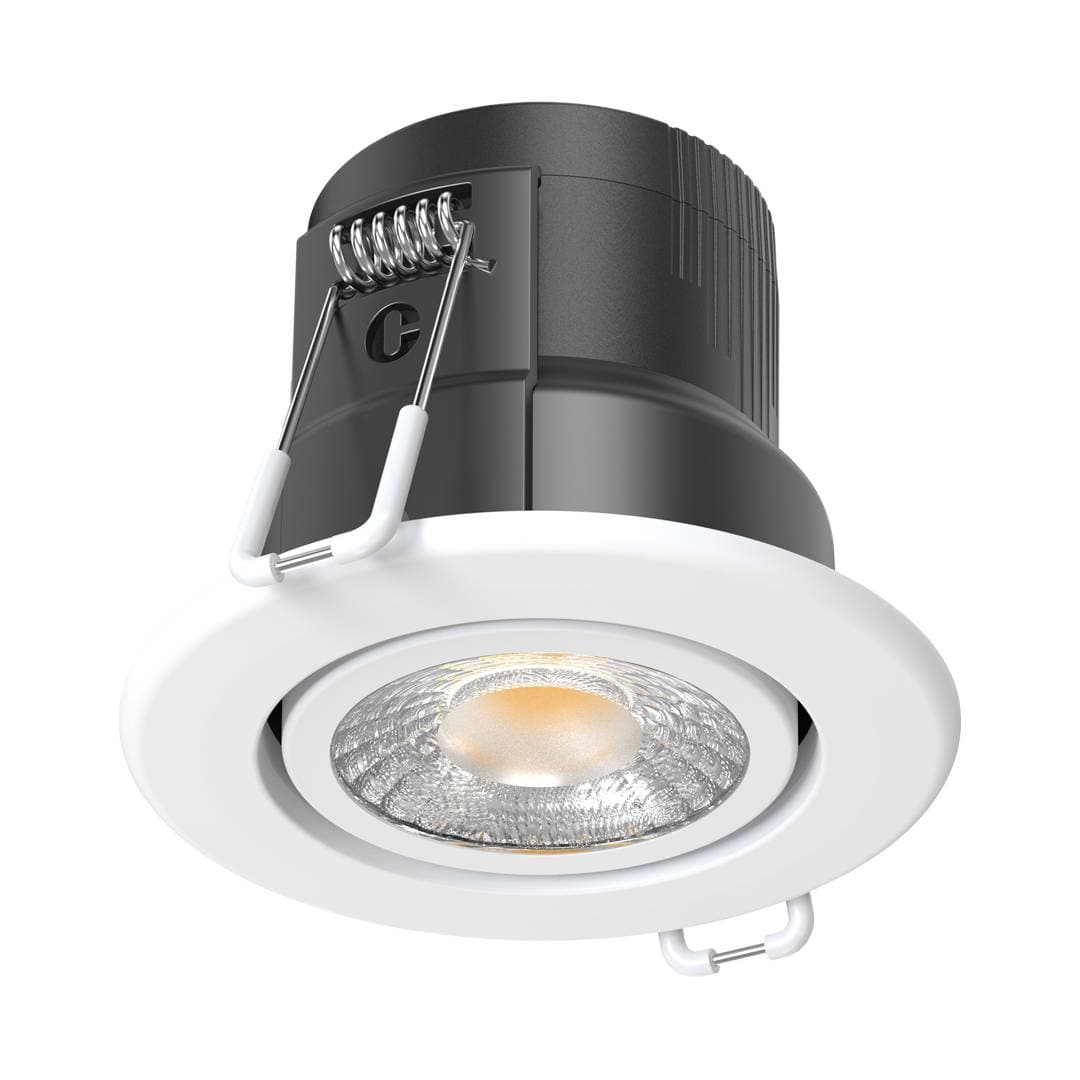

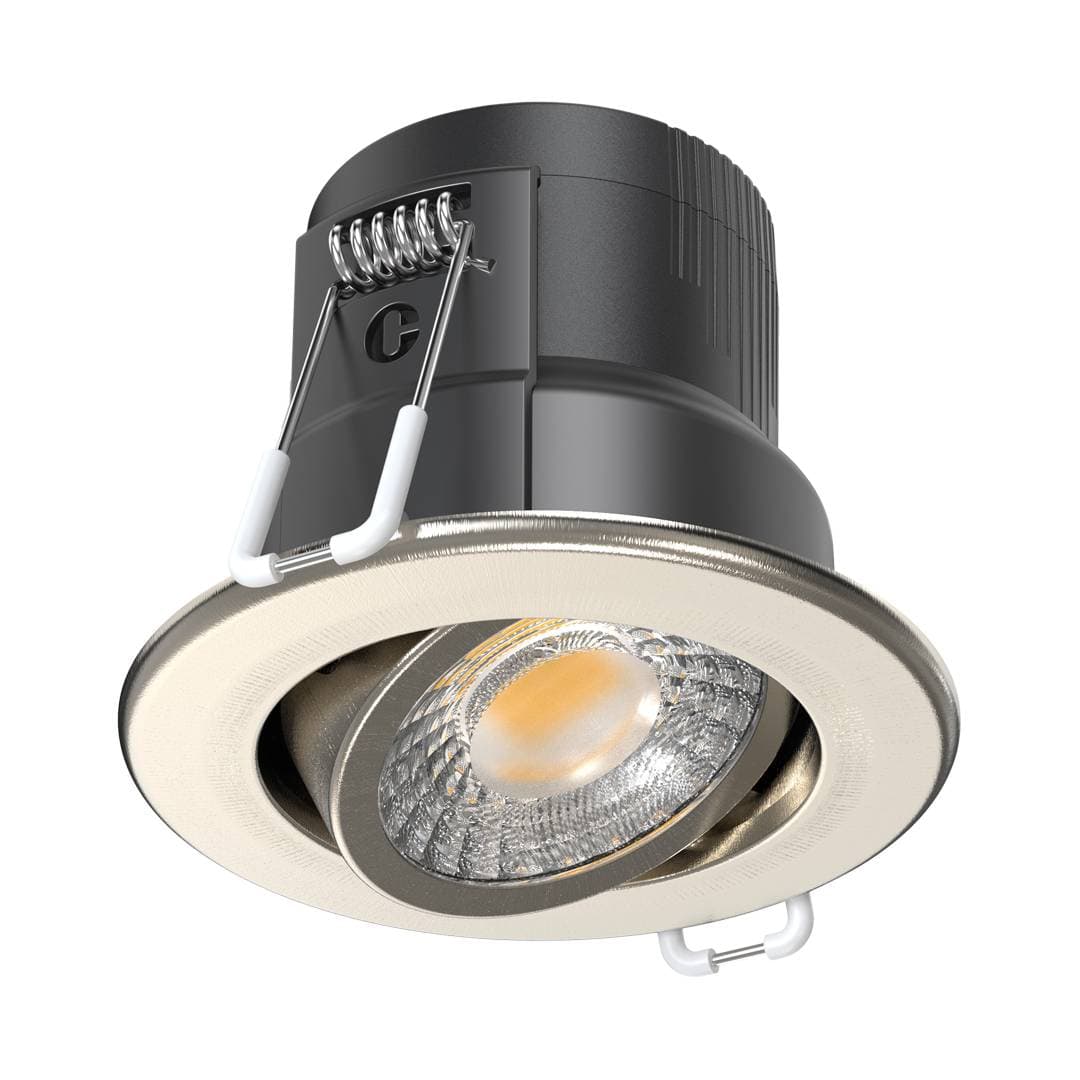

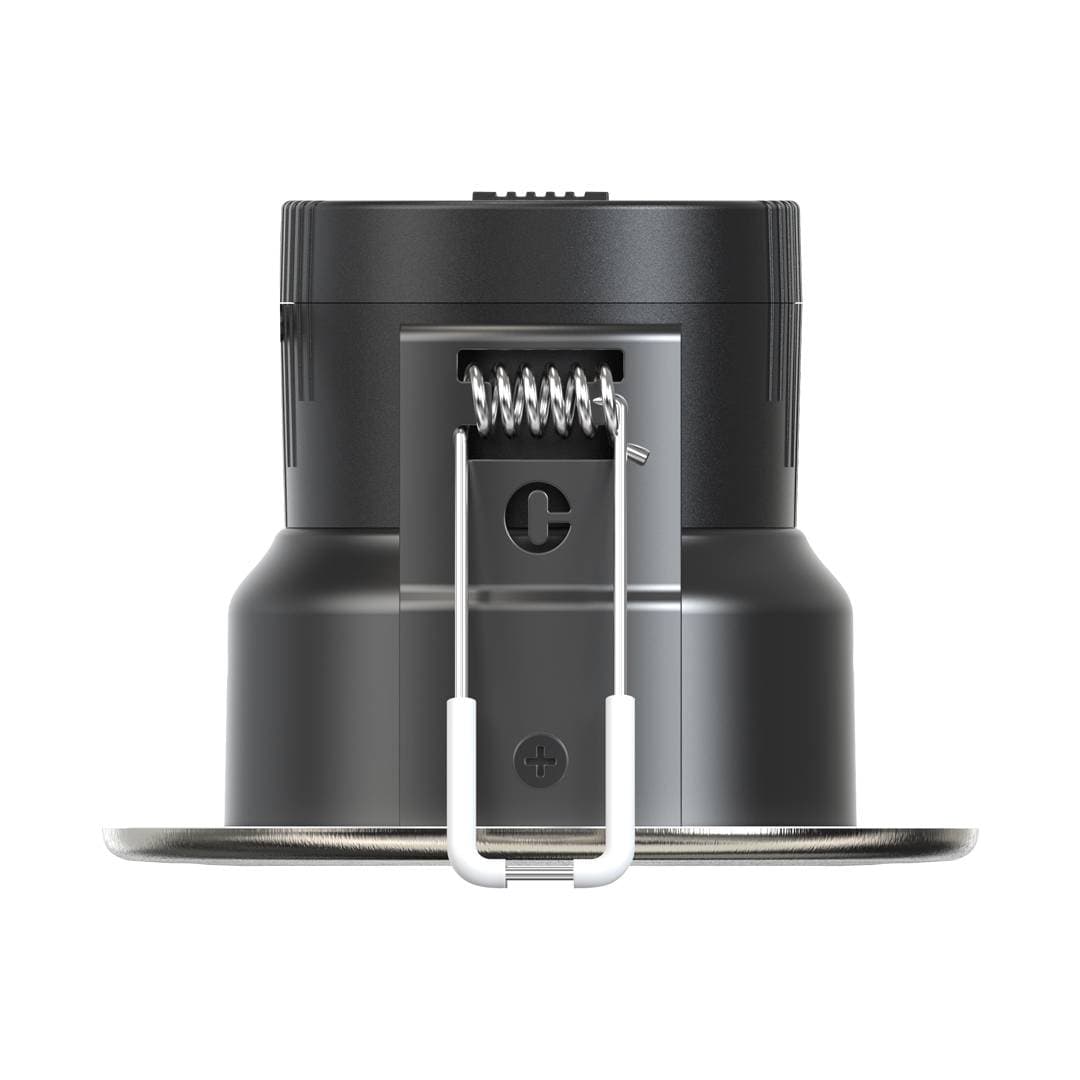

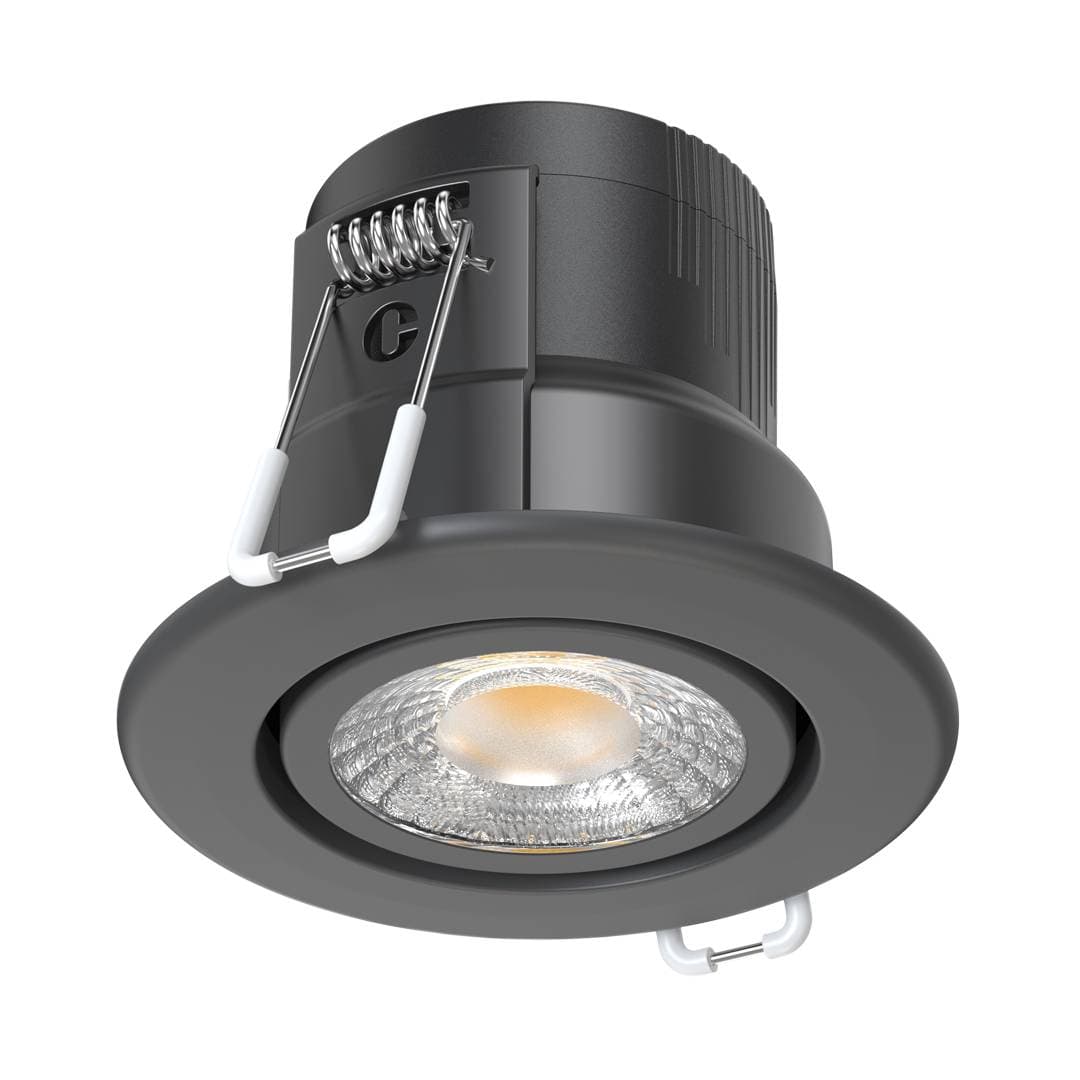

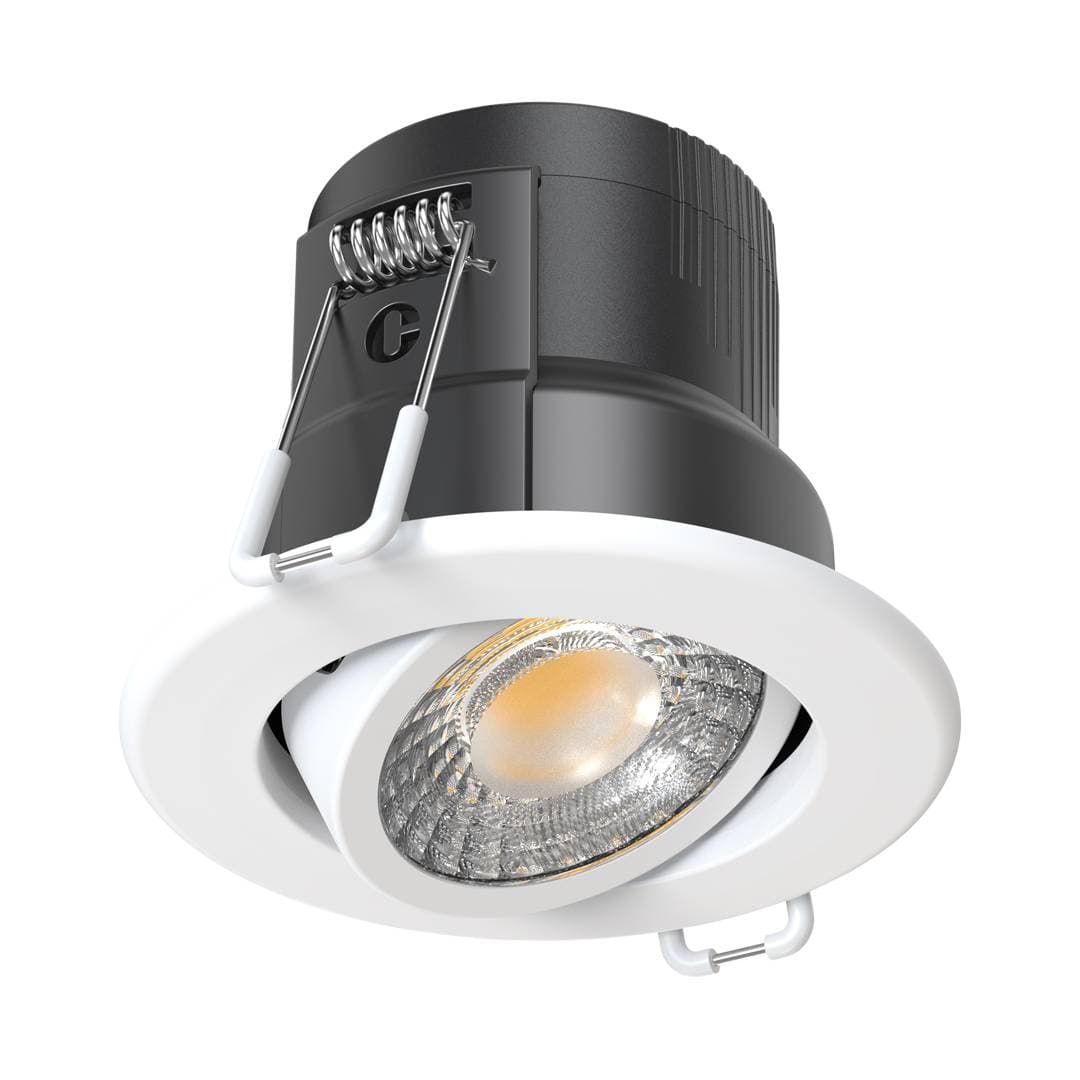

H4 Lite CSP

H4 Lite CSP is a superior solution that is engineered to be the perfect fit-and-forget solution. The colour temperature and wattage can be easily controlled by simply switching the switch on the back of the product. The addition of the 2700K colour temperature gives you the option of creating an excellent and warm atmosphere. Large piano key terminals allow loop-in/loop-out wiring with ease.

Colour switchable between 2700K, 3000K and 4000K
Wattage Switchable between 4W & 6W

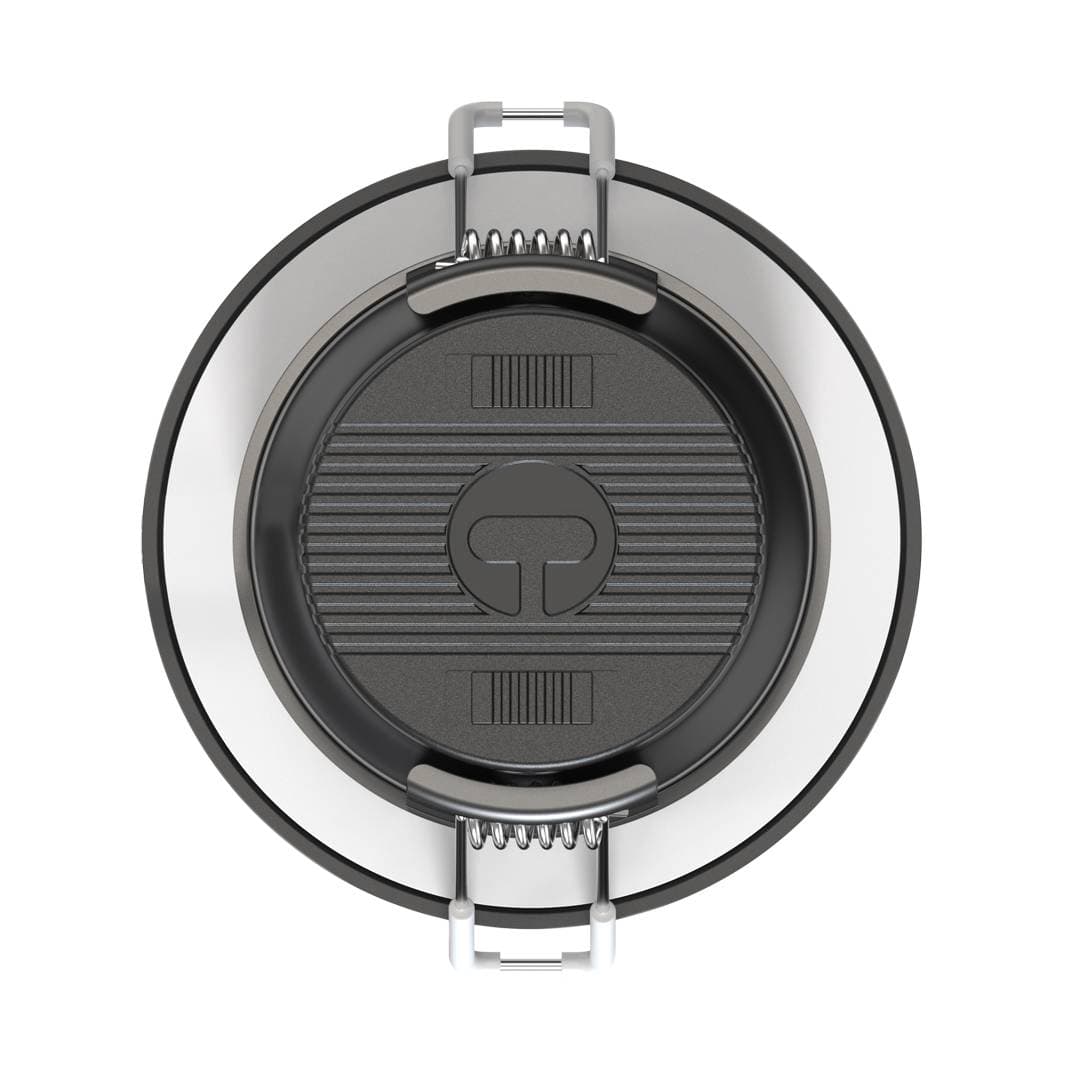

Back switches allow you to choose options at installation
Tiltable to highlight features on walls
2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
High efficacy of 130lm/W
Compatible with Click Flow CT100 series
TRIAC Mains dimmable
Fixed with 55 degree beam angle

Product Data

Code	CRI	IP Rating	Adjustability	Input	Insulation Coverable	Cut Out	Bathroom Zone	Building Regulations	Ceiling Joist Approvals	Wattage Range	CCT Range	Lumens Range	lm/W Range	Colour / Finish	Dimmable Option	Emergency Option	Warranty	Energy Class	Downloads
DLT661600A	CRI>80	IP65 (from below) IP20 (from above)	Swivelling	220-240V AC	Rolled and blown insulation	70-72	1	Part B, C, E, P & L	Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min	4-6W	2700K / 3000K / 4000K	450-520 (4W) / 650-750 (6W)	112-130 (4W) / 108-125 (6W)	White	Mains (Leading Edge/Trailing Edge)	None	7 years	D

Accessories

Find the perfect product you are looking for.

DLT661BSBZ

Brushed Steel Bezel for H4 Lite CSP

DLT661BLKBZ

Black Bezel for H4 Lite CSP

DLT661ABBZ

Antique Brass Bezel for H4 Lite CSP

DLT661CRBZ

Chrome Bezel for H4 Lite CSP
