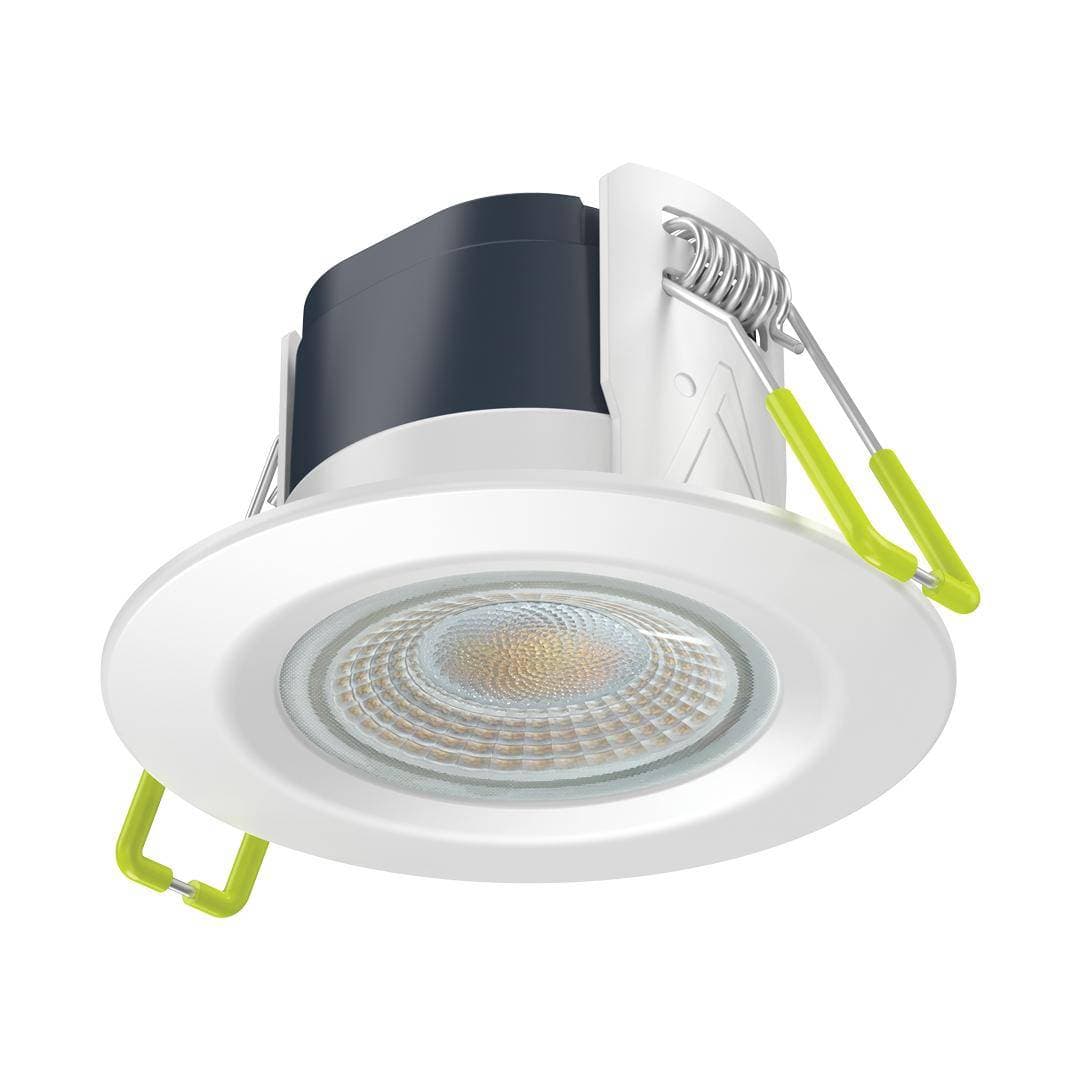

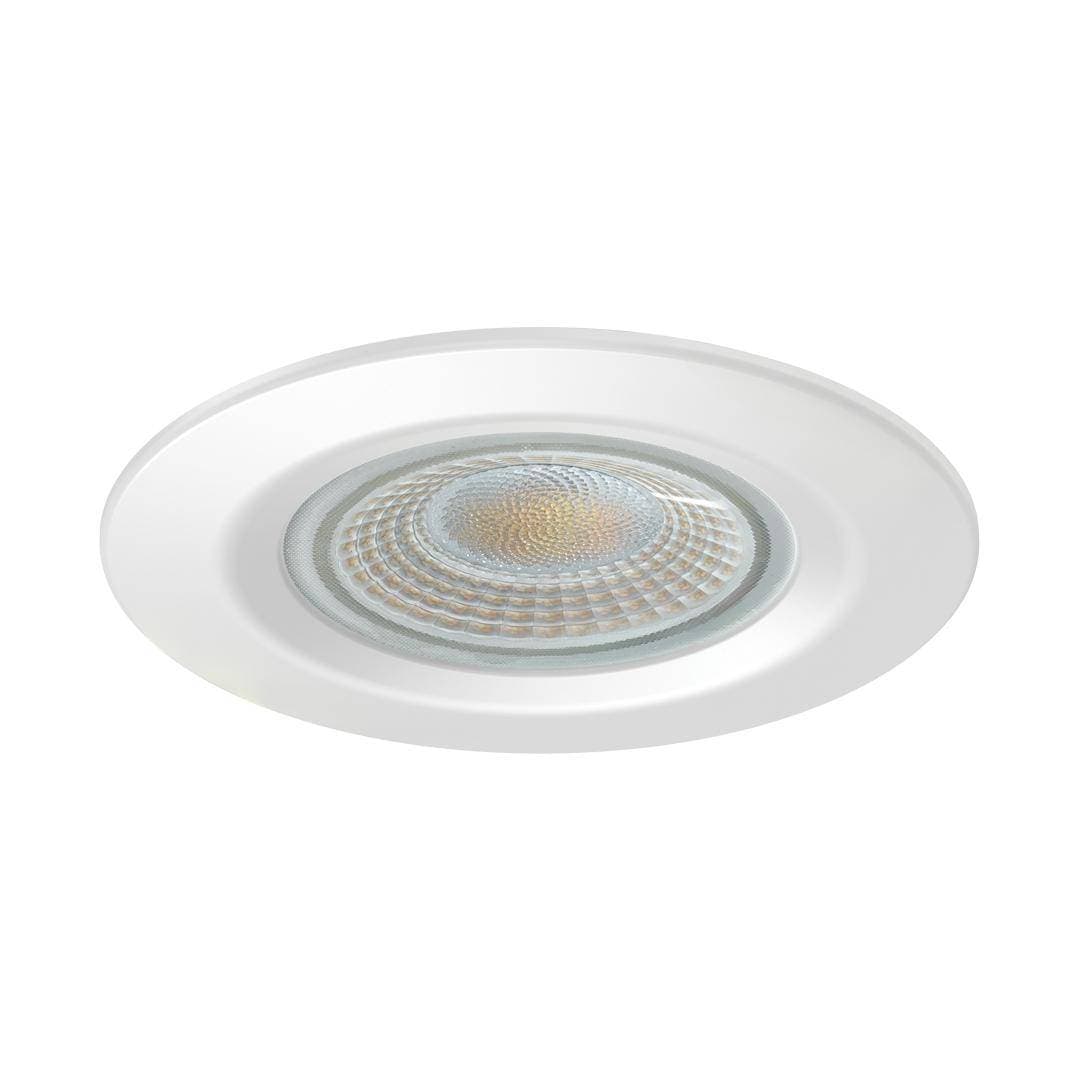

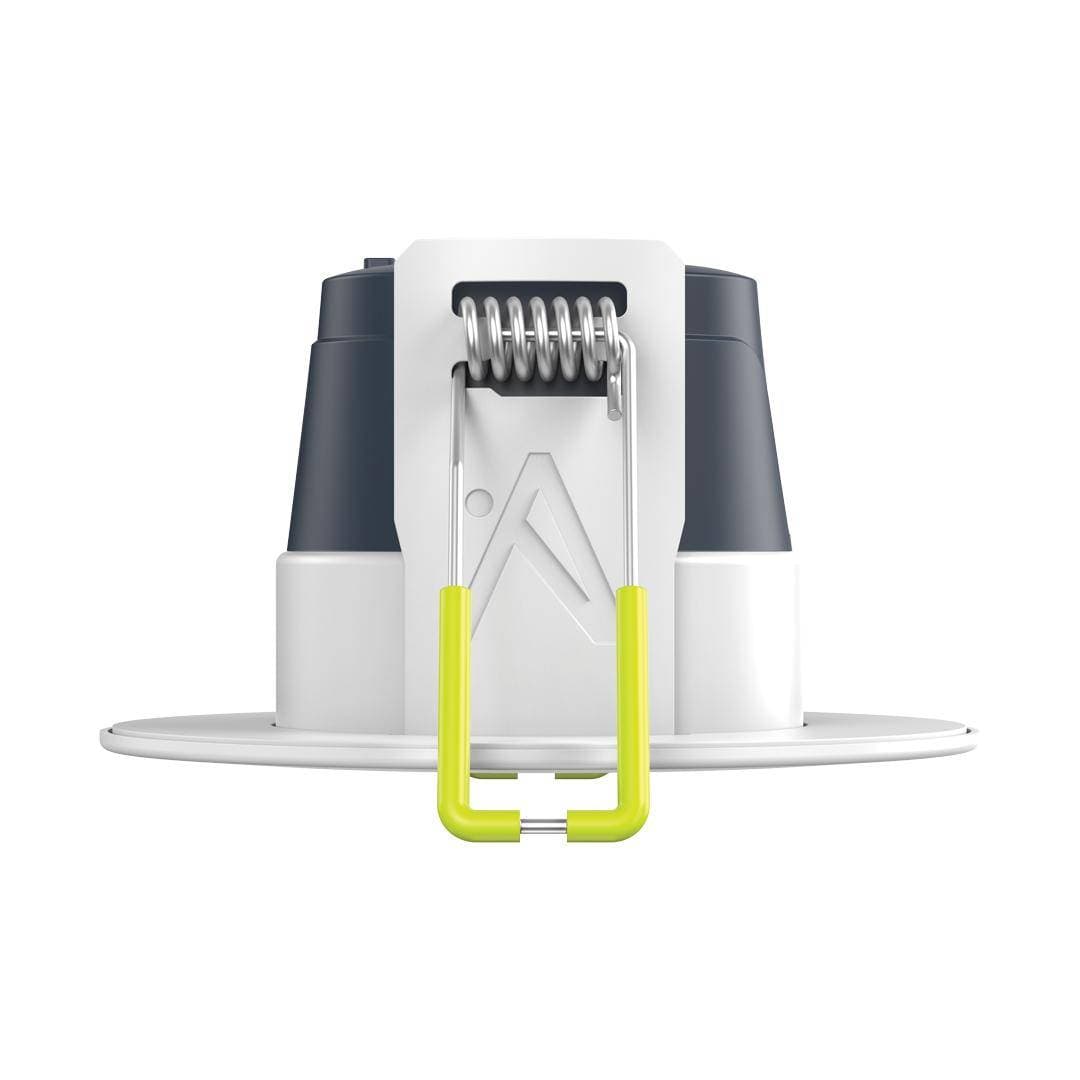

H2 Lite Select 10 Pack

The H2 Lite Select is an entry level solution that has been designed with feedback from the installer community and is engineered to a high standard. The colour temperature can be easily adjusted by simply moving the switch on the back of the luminaire. The product comes complete with a newly designed two-part connector and push-in terminal block with a LENNEL wiring configuration.

Colour switchable between 2700K, 3000K and 4000K
Up to 130lm/W
Shallow depth of 44MM

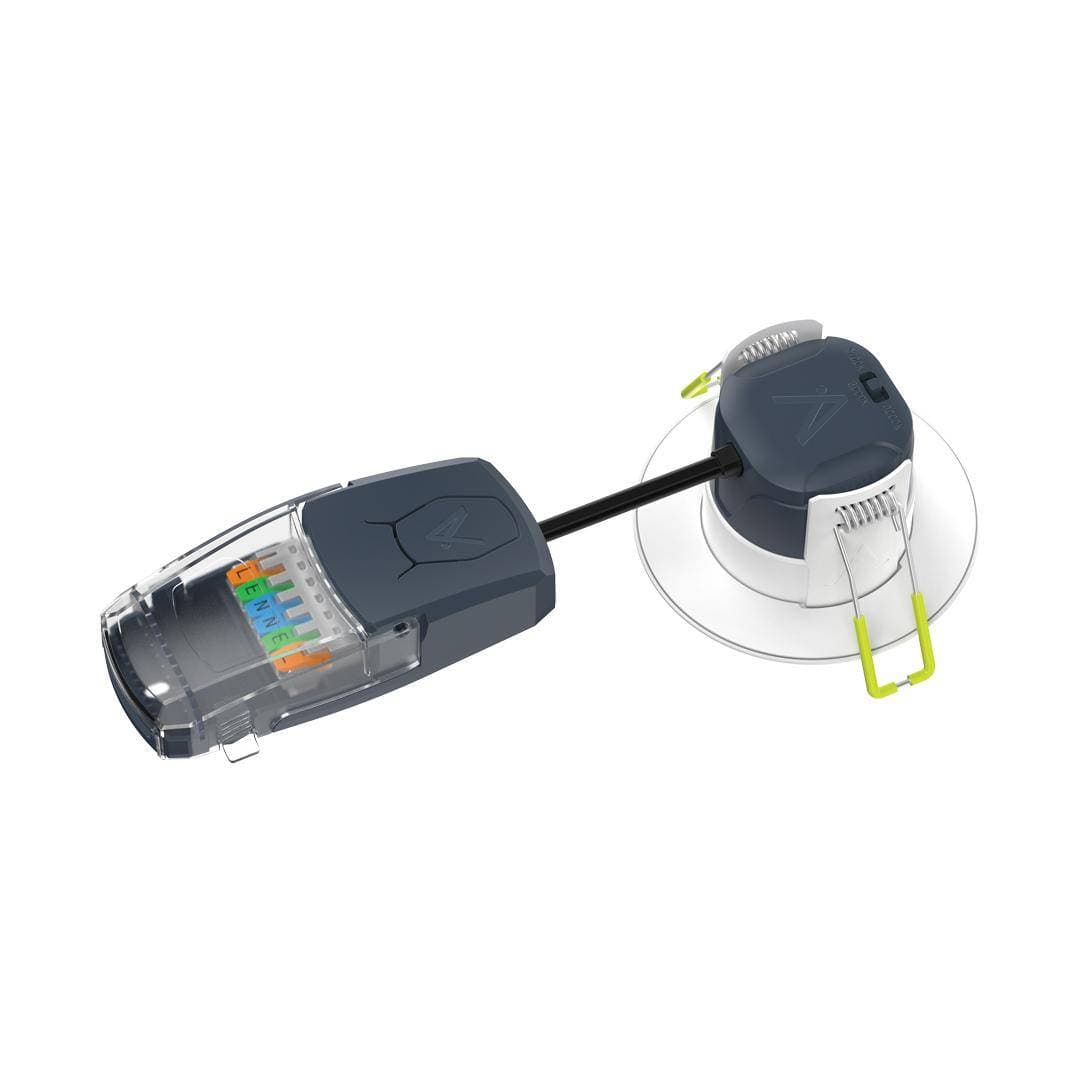

New lever terminal block complete with testing ports for speed and ease of installation LENNEL

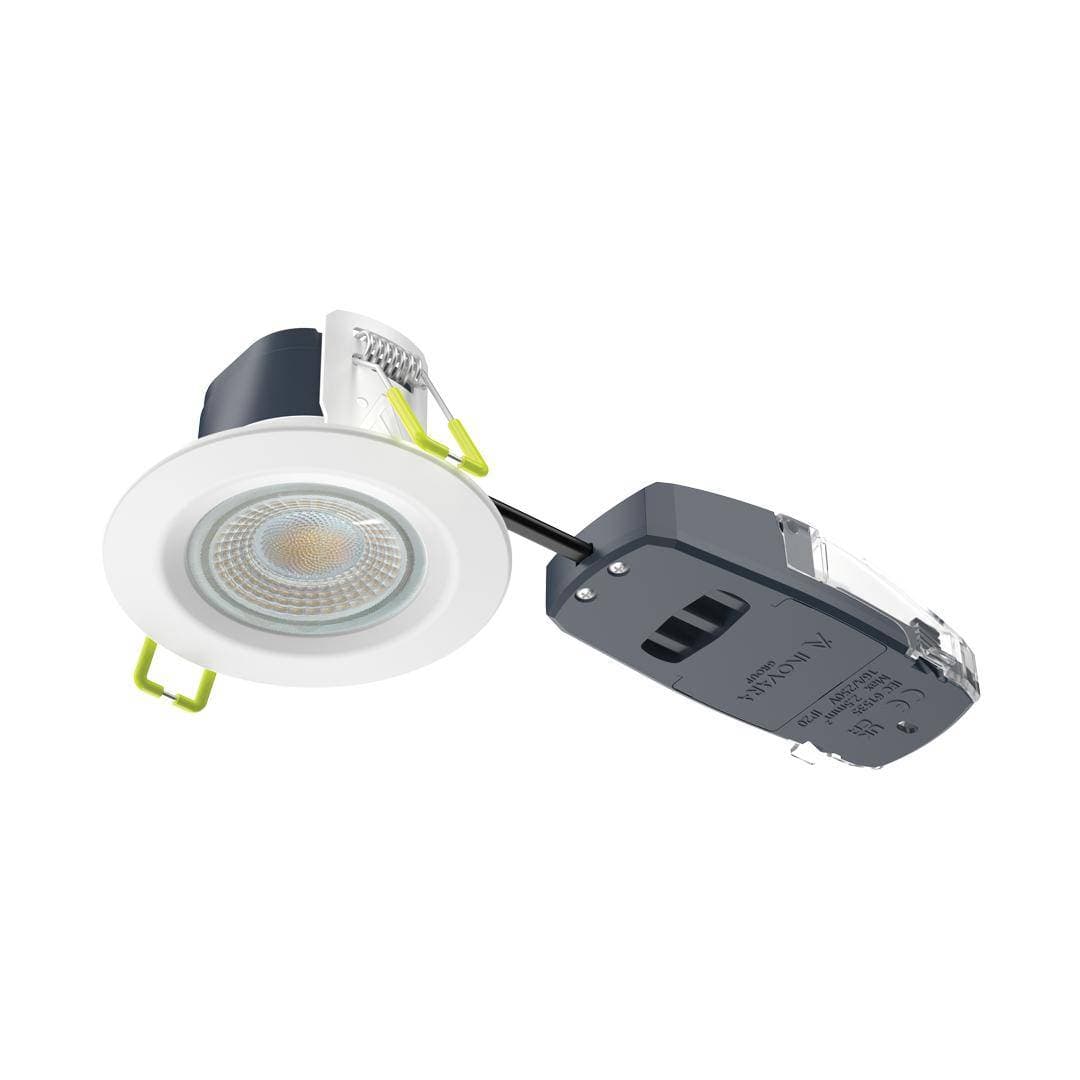

2-part connector provides first fix wiring whilst the luminaire is detached from the connector, loop in loop out, quick maintenance should disconnection/reconnection be required
Collingwood have tested the H2 Lite Select and confirmed they work together with the Click Flow CT100 series without compatibility issues.
TRIAC Mains dimmable
When using a converter plate, the IP rating is not affected; however, the product is no longer fire-rated.
Insulation Coverable
FSC Certificated packaging and zero plastic ensure minimal waste

Product Data

Code	CRI	IP Rating	Adjustability	Input	Insulation Coverable	Cut Out	Bathroom Zone	Building Regulations	Ceiling Joist Approvals	Wattage Range	CCT Range	Lumens Range	lm/W Range	Colour / Finish	Sensor Option	Dimmable Option	Emergency Option	Warranty	Energy Class	Downloads
DLT389MWA10	CRI>80	IP65 (from below) IP20 (from above)	Not adjustable	220-240V AC	Rolled and blown insulation	60-72mm	1	Part B, C, E, P & L	Solid Timber 30/60/90min, I-Joist 30min, Metal Web 30min	5W	2700K / 3000K / 4000K	600-650	120-130	White	None	Mains (Leading Edge/Trailing Edge)	None	5 years	D
