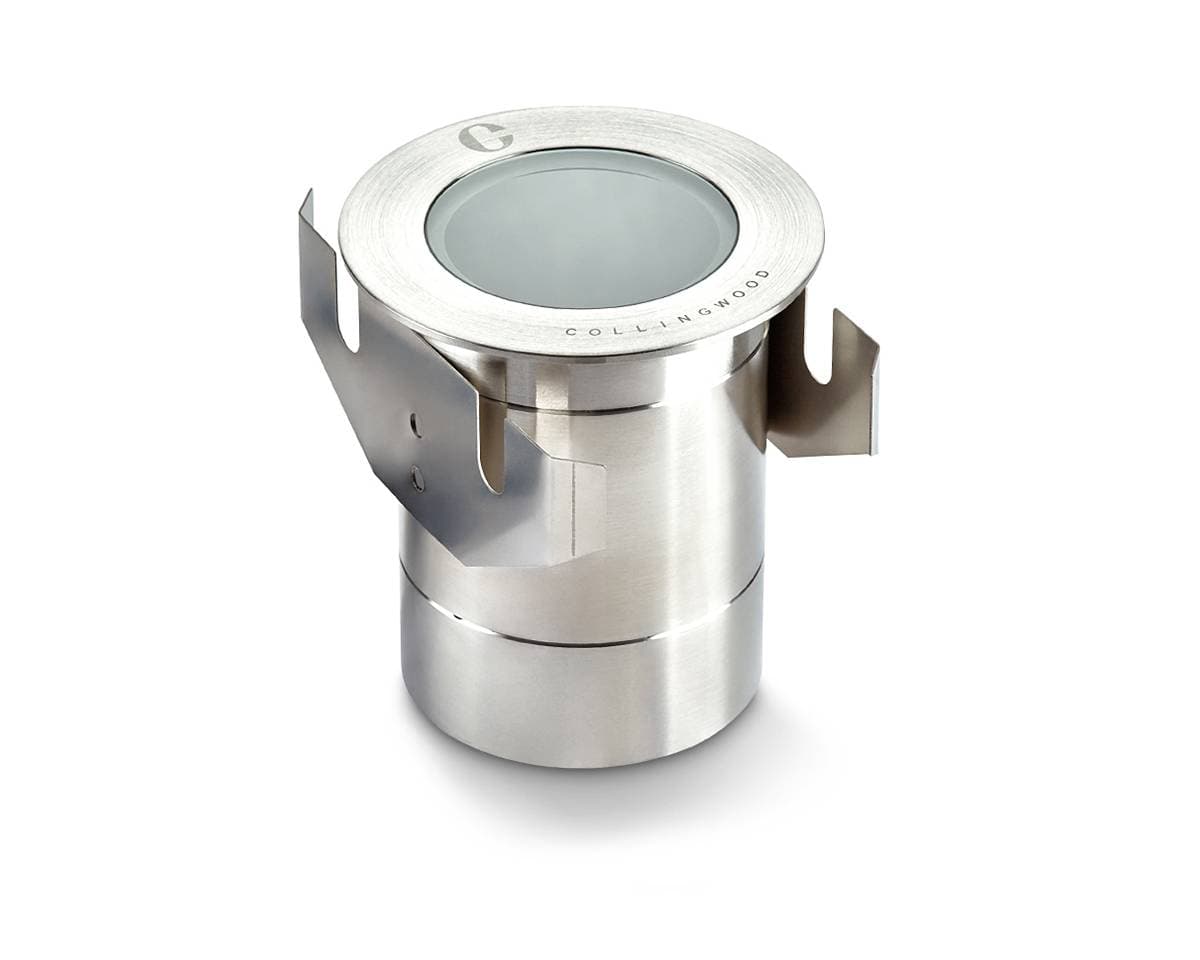

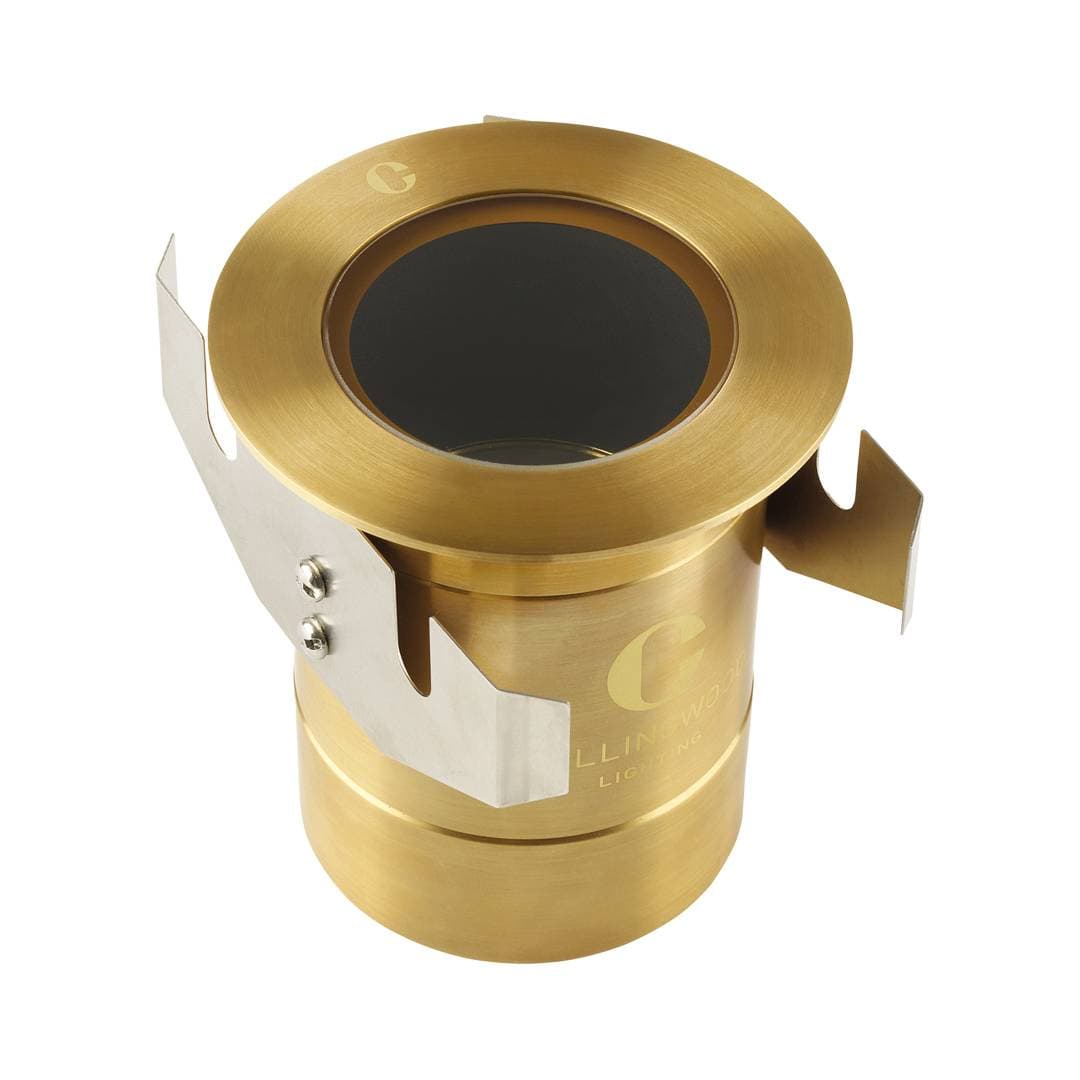

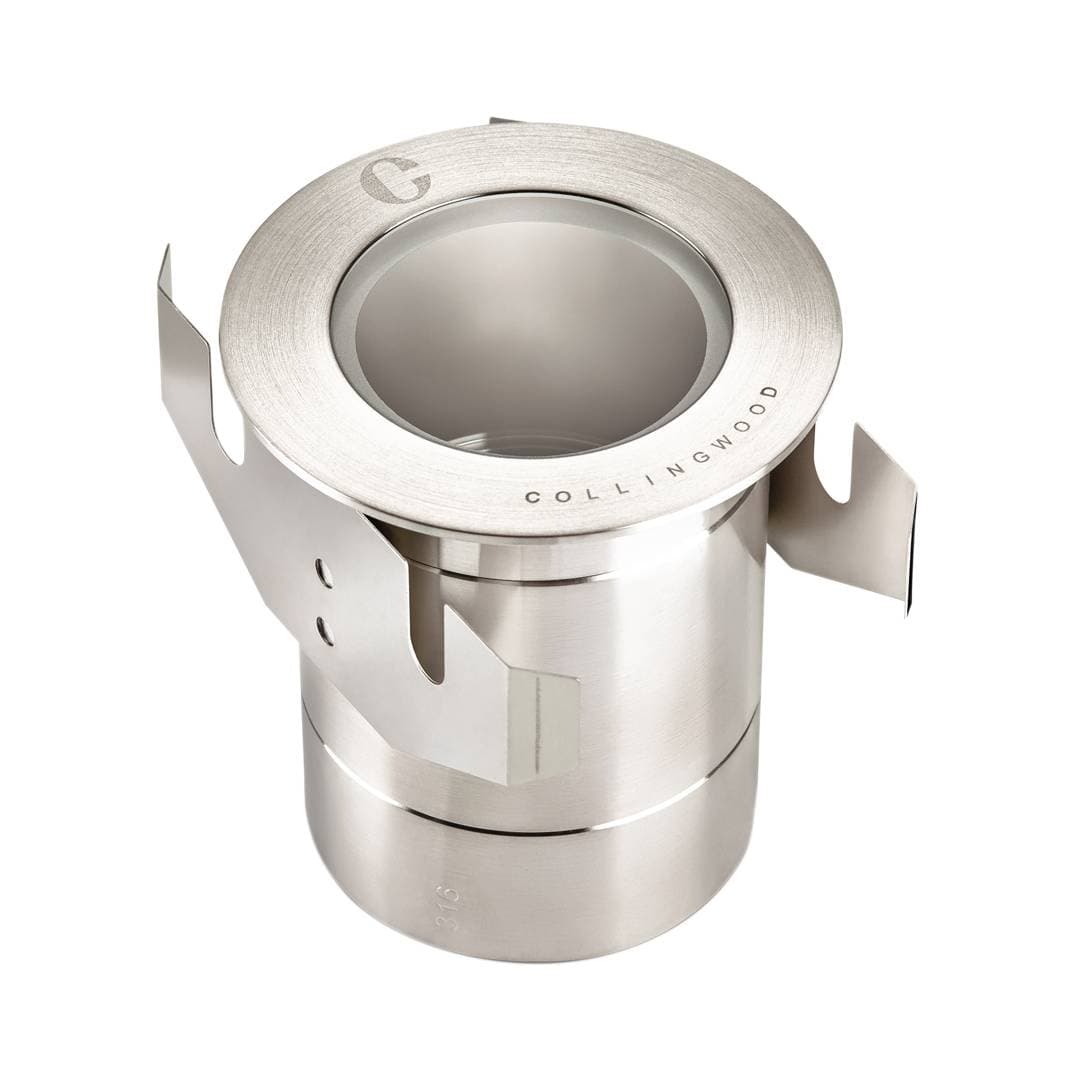

GL040 Ultra Low Glare

IP68 perfect for internal or external applications
Coastal protected
IK08 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
SDCM3 ensuring uniform light appearance and consistency
Single LED and lens combination for maximum efficiency and optimal light distribution
CRI 80 providing true colour appearance

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Dimmable Option	Body Material	Width	Length	Adjustability
GL040USS27S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W	2700K	92 - 284	Stainless Steel 316	None	Stainless steel	-	-	Not adjustable
GL040USS30S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W	3000K	93 - 287	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040USS40S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W	4000K	96 - 297	Stainless Steel 316	None	Stainless steel	-	-	Not adjustable
GL040USS27F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W	2700K	92 - 284	Stainless Steel 316	None	Stainless steel	-	-	Not adjustable
GL040USS30F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W	3000K	93 - 287	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040USS40F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W	4000K	96 - 297	Stainless Steel 316	None	Stainless steel	-	-	Not adjustable
GL040UAB27S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W	2700K	92 - 284	Antique brass	None	Brass	76	76	Not adjustable
GL040UAB30S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W	3000K	93 - 287	Antique brass	None	Brass	-	-	Not adjustable
GL040UAB27F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W	2700K	92 - 284	Antique brass	None	Brass	76	76	Not adjustable
GL040UAB30F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W	3000K	93 - 287	Antique brass	None	Brass	-	-	Not adjustable
