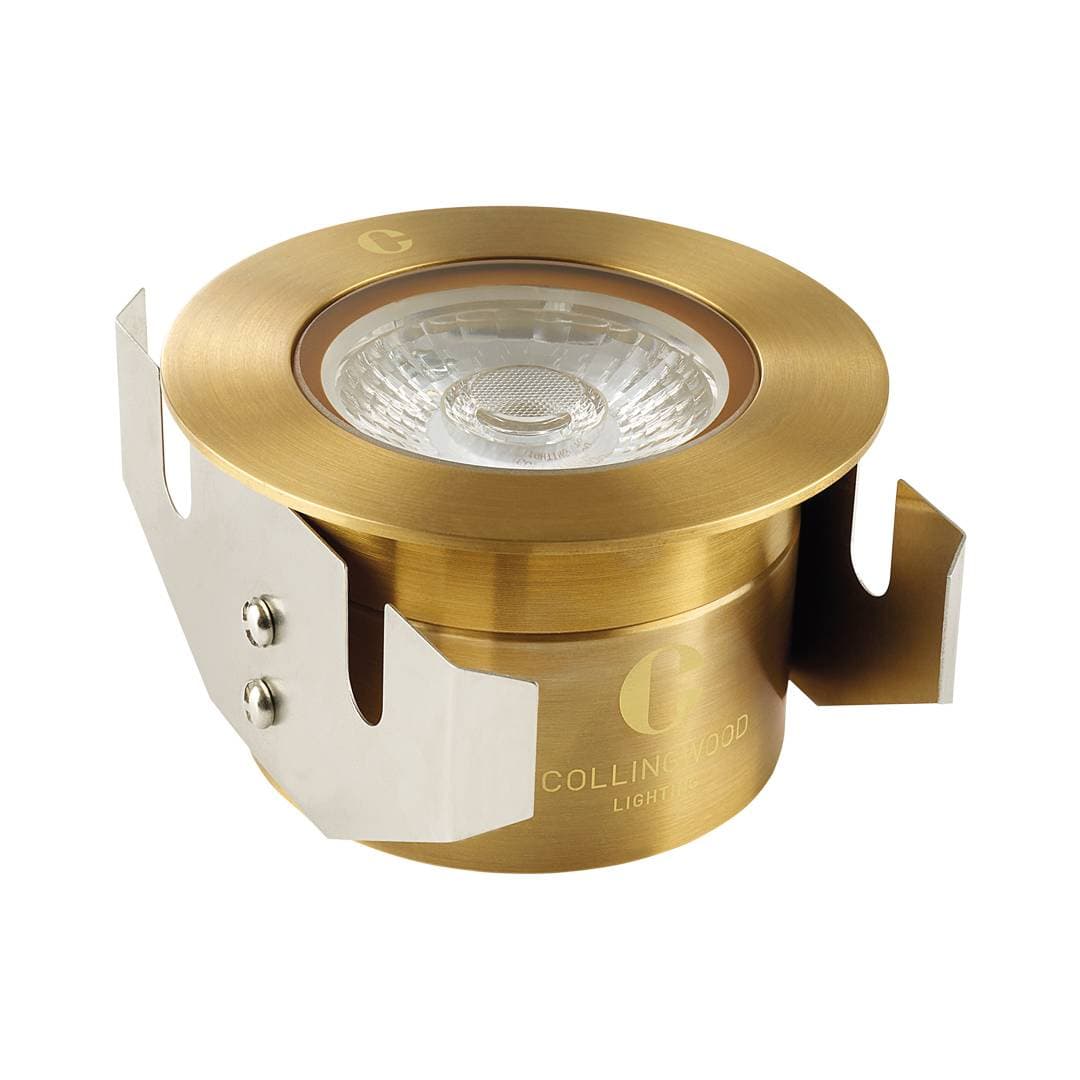

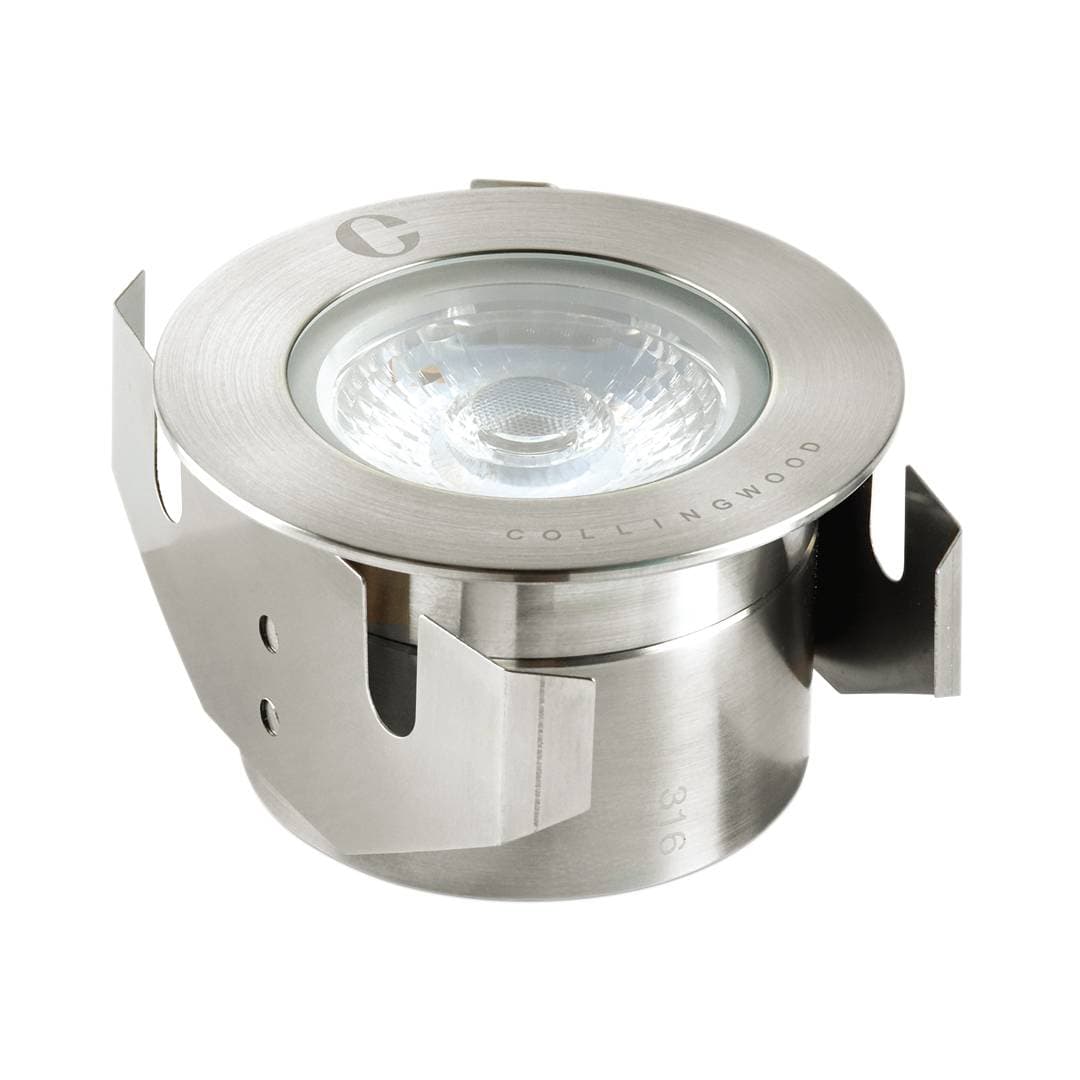

GL040 Round

The newly upgraded GL040 modular ground light range offers a variety of options, including round, frosted, low glare, half moon, and ultra low glare, to suit any installation or project. This range features a single-point source lens, giving it a modern appearance and feel. With IP68 and IK08 ratings, it is ideal for outdoor use. These ground lights are an stunning way to illuminate walls, trees, and walkways.

IP68 perfect for internal or external applications
Coastal protected
IK08 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
SDCM3 ensuring uniform light appearance and consistency
Single LED and lens combination for maximum efficiency and optimal light distribution
CRI 80 providing true colour appearance
Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
Long lifetime of 70,000hrs
Available in an array of colours

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Dimmable Option	Body Material	Width	Length	Adjustability
GL040RSS27S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	2700K	129 - 515	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RSS30S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	3000K	130 - 520	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RSS40S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	4000K	134 - 538	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RSS27F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	2700K	129 - 515	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RSS30F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	3000K	130 - 520	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RSS40F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	4000K	134 - 538	Stainless Steel 316	None	Stainless steel	76	76	Not adjustable
GL040RAB30S	CRI>80	IP68	70mm	12°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	3000K	130 - 520	Antique brass	None	Brass	76	76	Not adjustable
GL040RAB27F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	2700K	129 - 515	Antique brass	None	Brass	76	76	Not adjustable
GL040RAB30F	CRI>80	IP68	70mm	40°	Round	0.8W / 1.4W / 2W / 3W / 4.6W	3000K	130 - 520	Antique brass	None	Brass	76	76	Not adjustable
