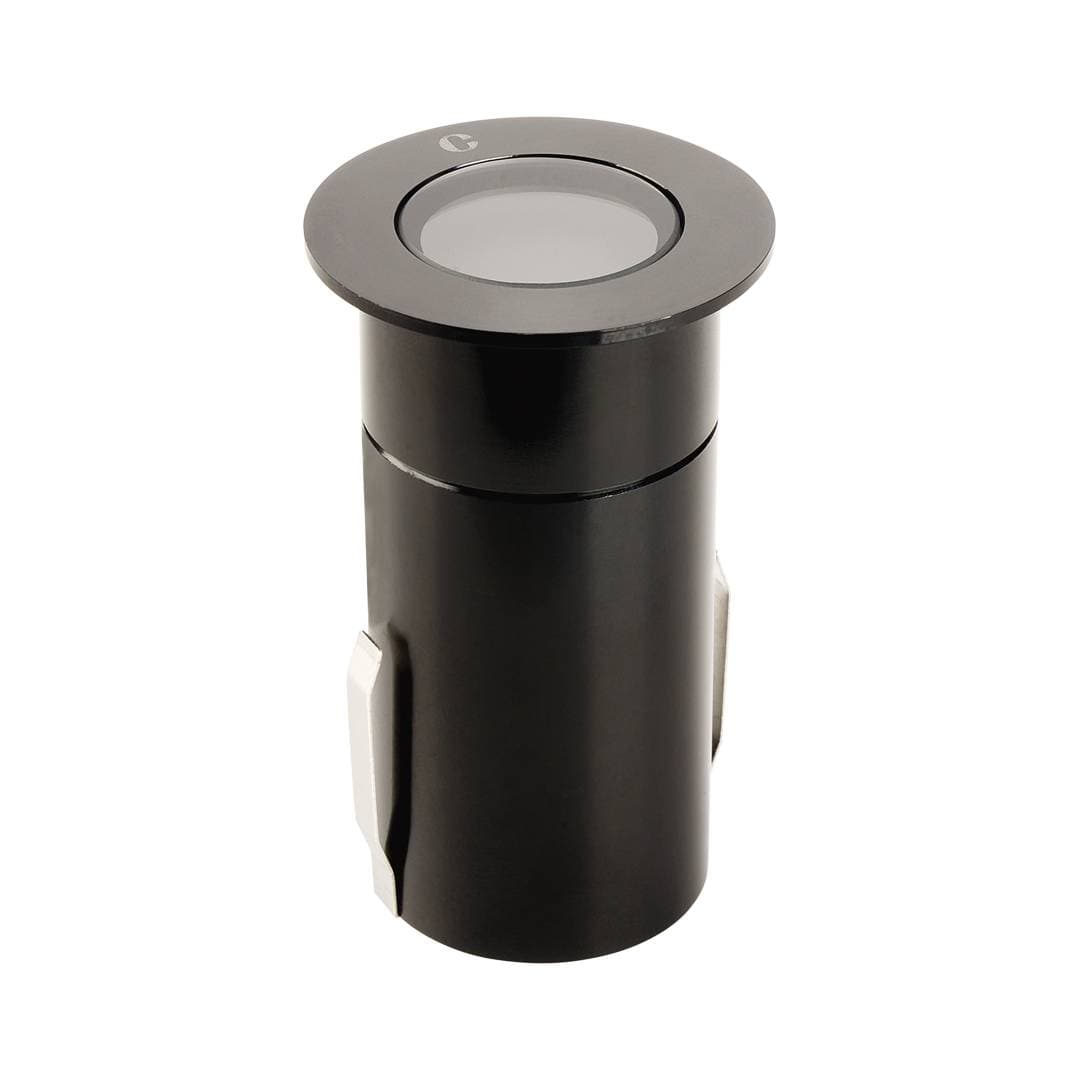

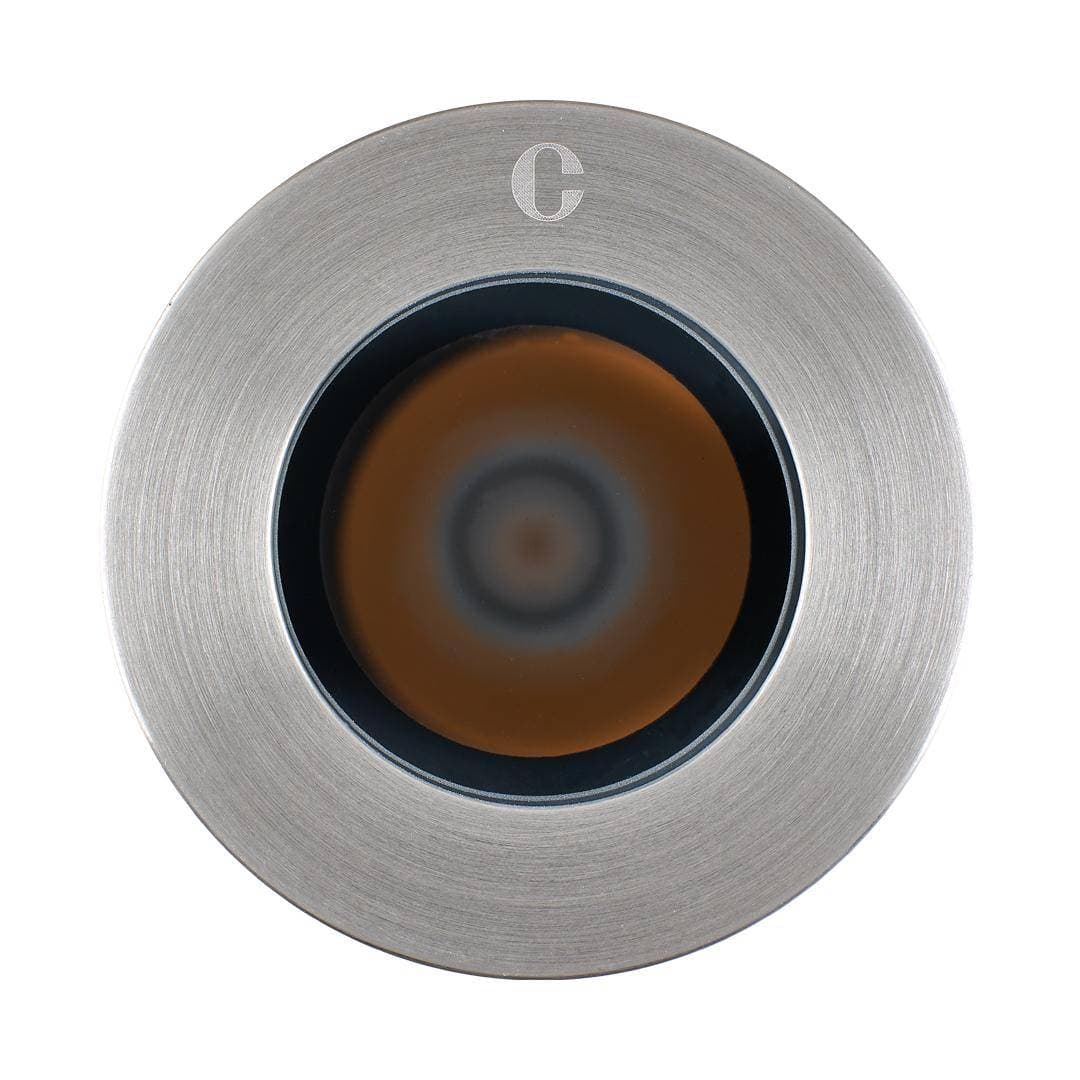

GL019 Ultra Low Glare

IP68 perfect for internal or external applications
Coastal protected
IK06 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
Low voltage ground light
SDCM3 ensuring uniform light appearance and consistency
CRI 80 providing true colour appearance
Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
Compact yet powerful fitting
Robust cable for outdoor use
Available in an array of colours

Walk Over / Drive Over

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability

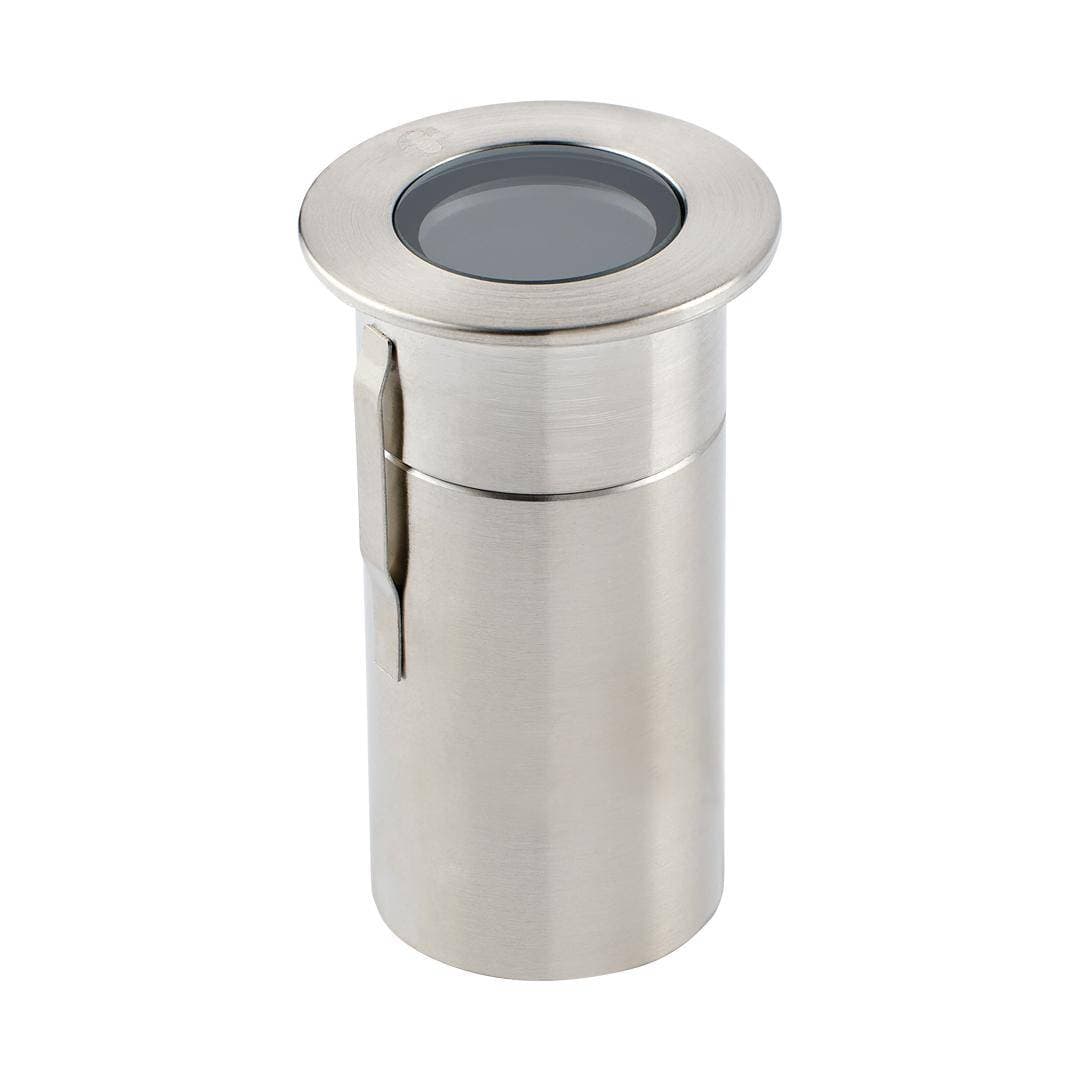

GL019USS27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	2700K	41 - 89	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	4000K	49 - 106	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	2700K	36 - 77	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	3000K	38 - 82	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	4000K	42 - 91	Stainless Steel 316	Stainless Steel 316	-	-	Not adjustable

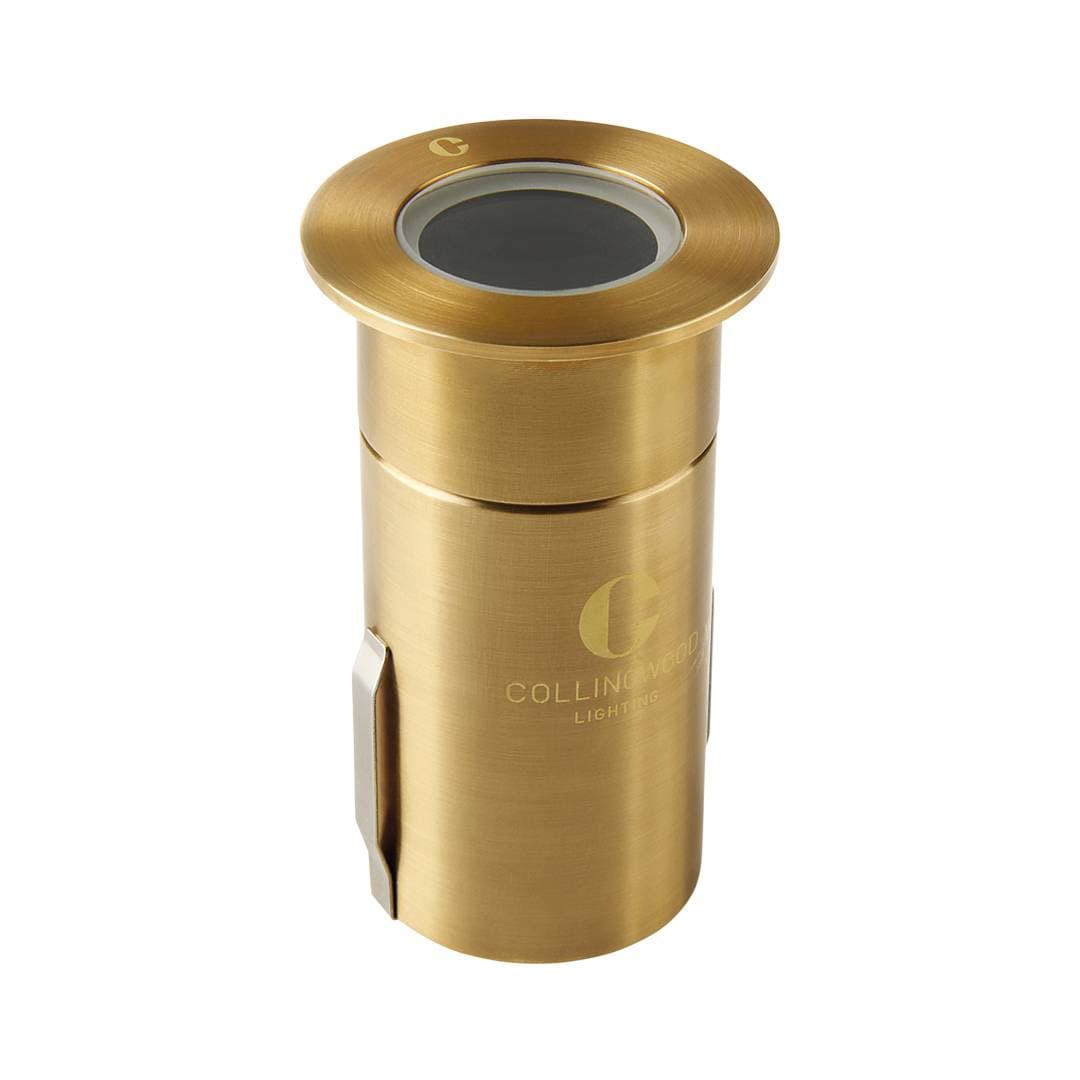

GL019UAB30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Antique brass	Brass	-	-	Not adjustable
GL019UAB30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	3000K	38 - 82	Antique brass	Brass	-	-	Not adjustable
GL019UBK27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	2700K	41 - 89	Black	Anodised aluminium	-	-	Not adjustable
GL019UBK30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Black	Anodised aluminium	-	-	Not adjustable

Walk Over / Drive Over

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability
GL019USS27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	2700K	41 - 89	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	4000K	49 - 106	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	2700K	36 - 77	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	3000K	38 - 82	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable
GL019USS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	4000K	42 - 91	Stainless Steel 316	Stainless Steel 316	-	-	Not adjustable
GL019UAB30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Antique brass	Brass	-	-	Not adjustable
GL019UAB30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W	3000K	38 - 82	Antique brass	Brass	-	-	Not adjustable
GL019UBK27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	2700K	41 - 89	Black	Anodised aluminium	-	-	Not adjustable
GL019UBK30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W	3000K	44 - 95	Black	Anodised aluminium	-	-	Not adjustable
