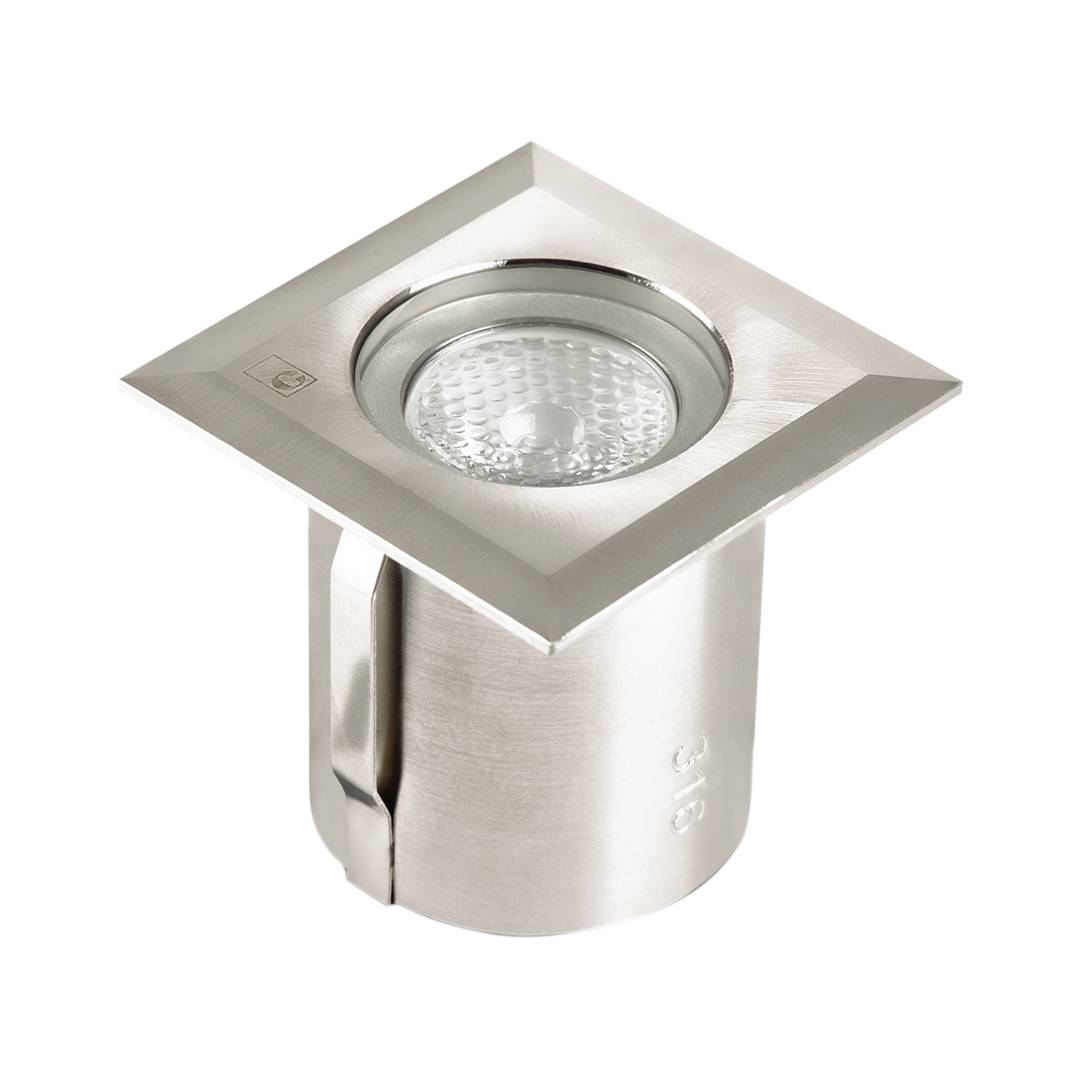

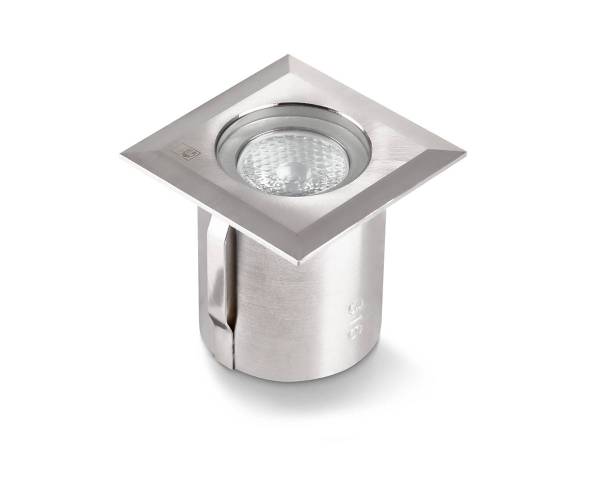

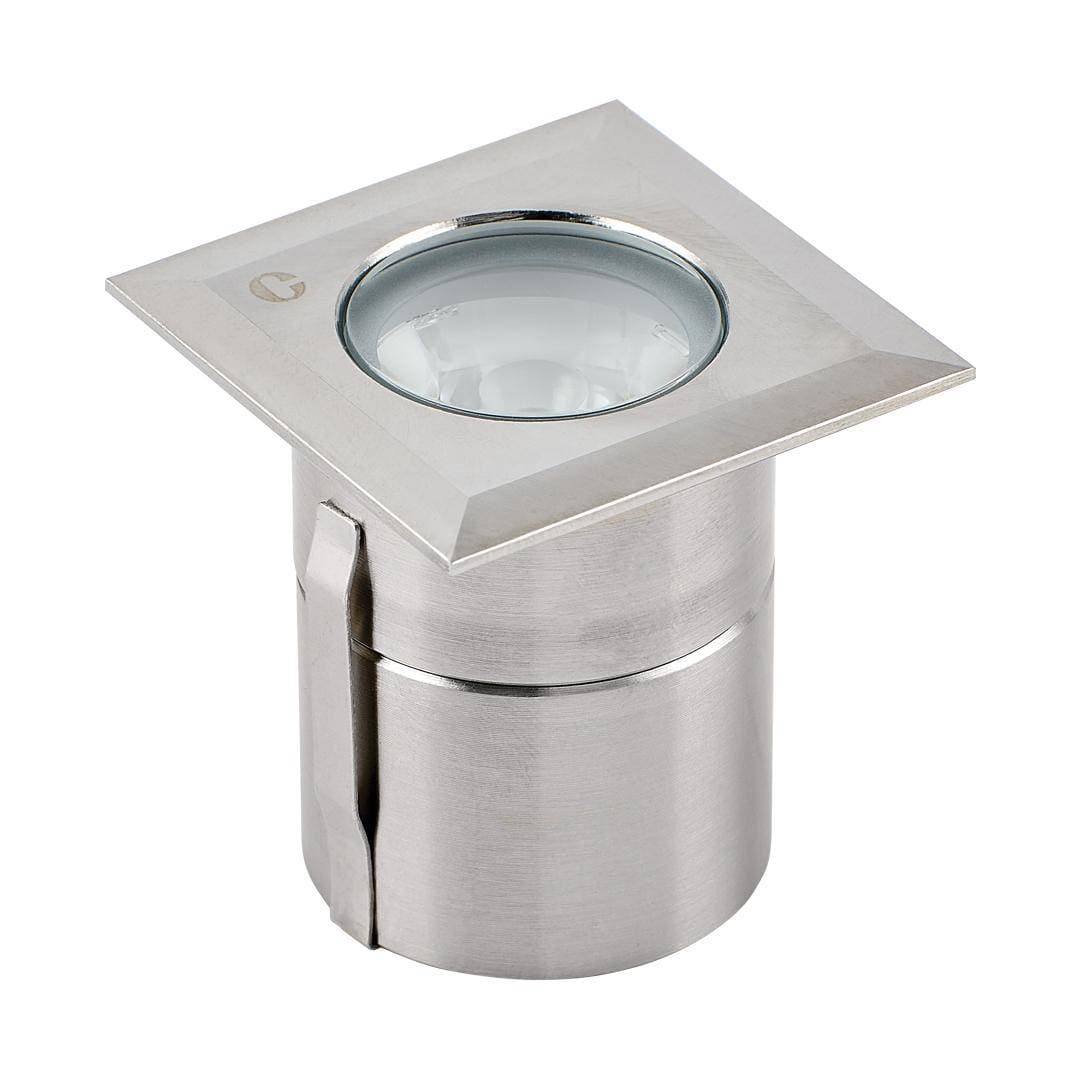

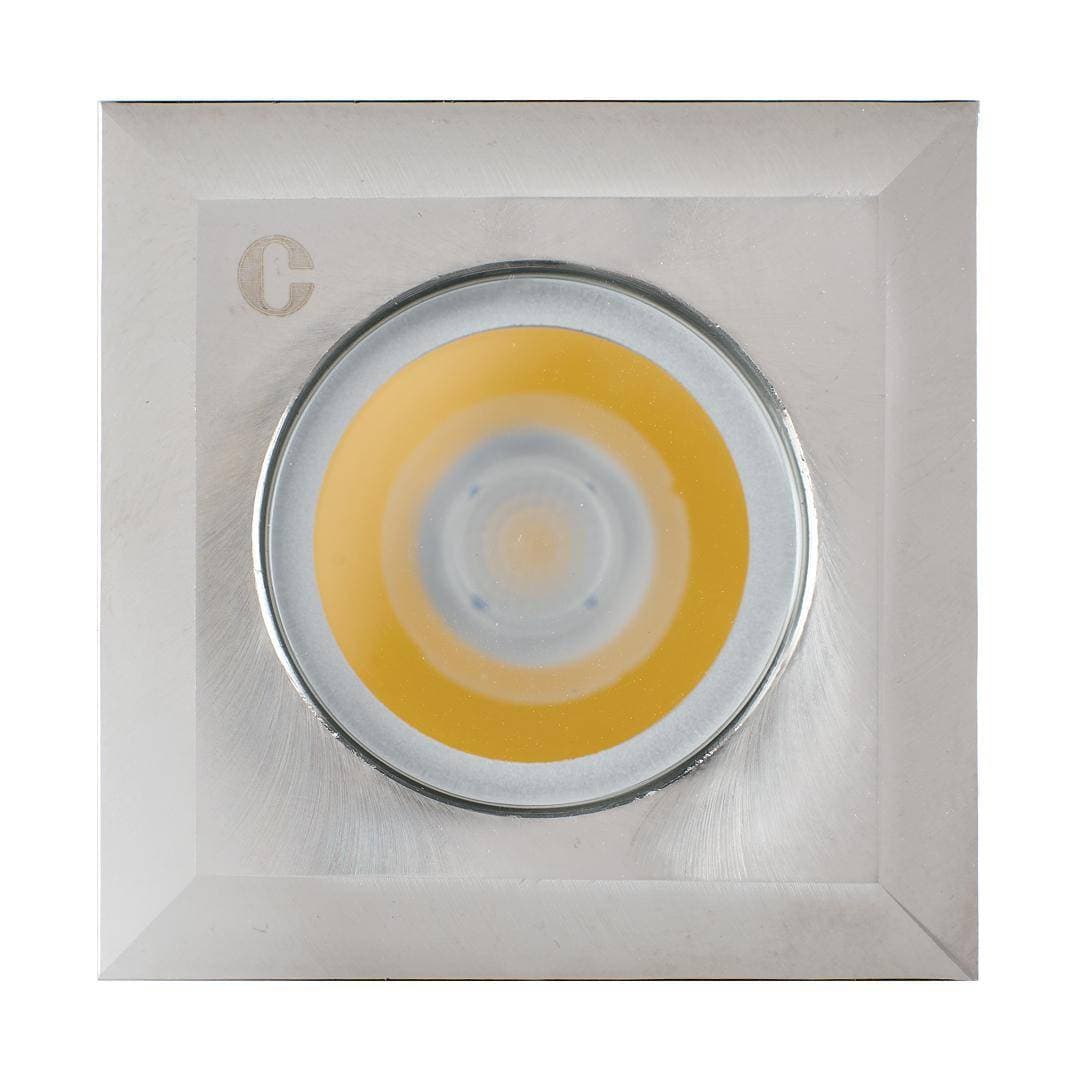

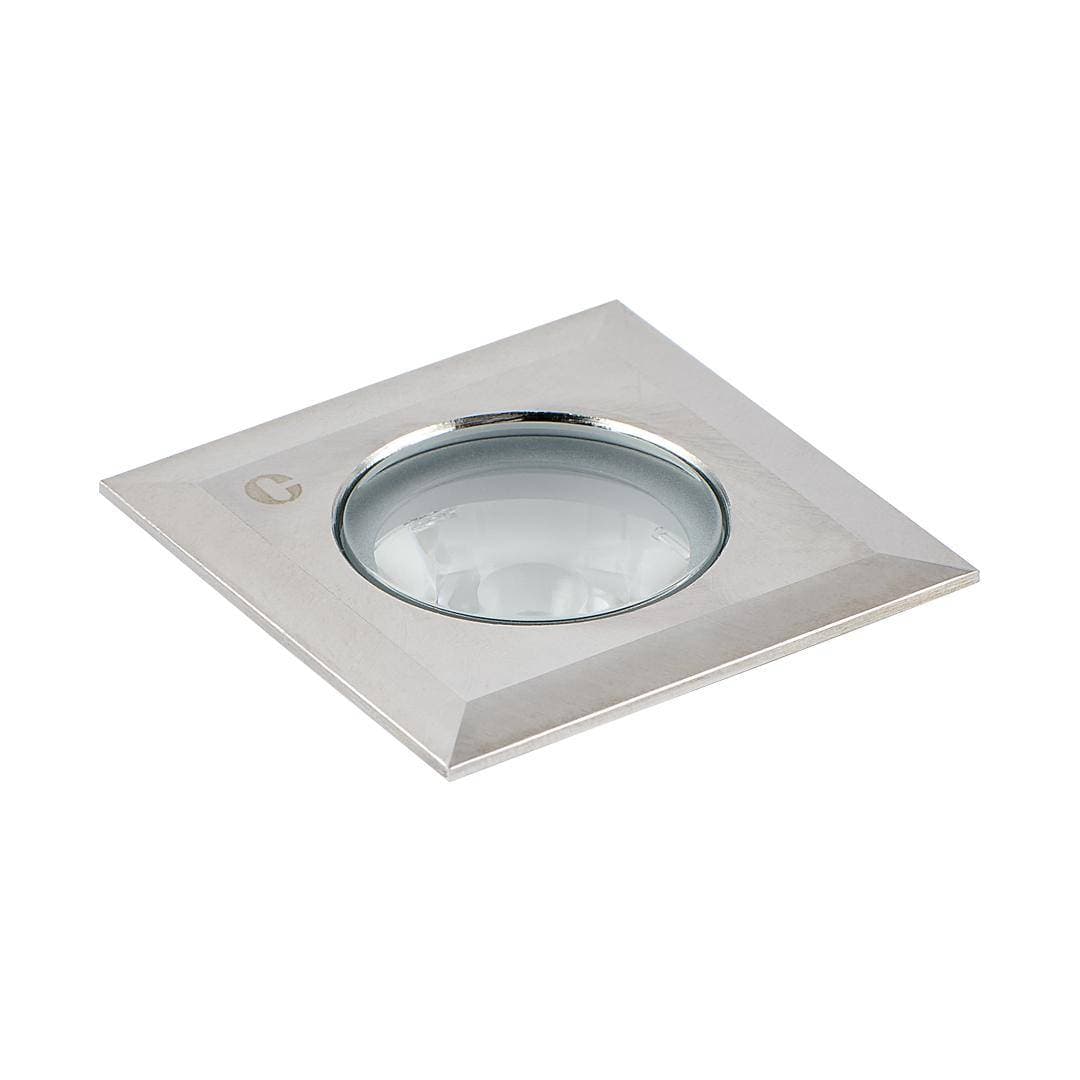

GL019 Square

IP68 perfect for internal or external applications
Coastal protected
IK06 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
Low voltage ground light
SDCM3 ensuring uniform light appearance and consistency
CRI 80 providing true colour appearance
Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
Compact yet powerful fitting
Robust cable for outdoor use
Available in an array of colours

Beam Angle

CCT Range

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability	Dimmable Option
GL019SQSS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019SQSS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019SQSS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None

Beam Angle

CCT Range

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability	Dimmable Option
GL019SQSS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019SQSS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019SQSS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
