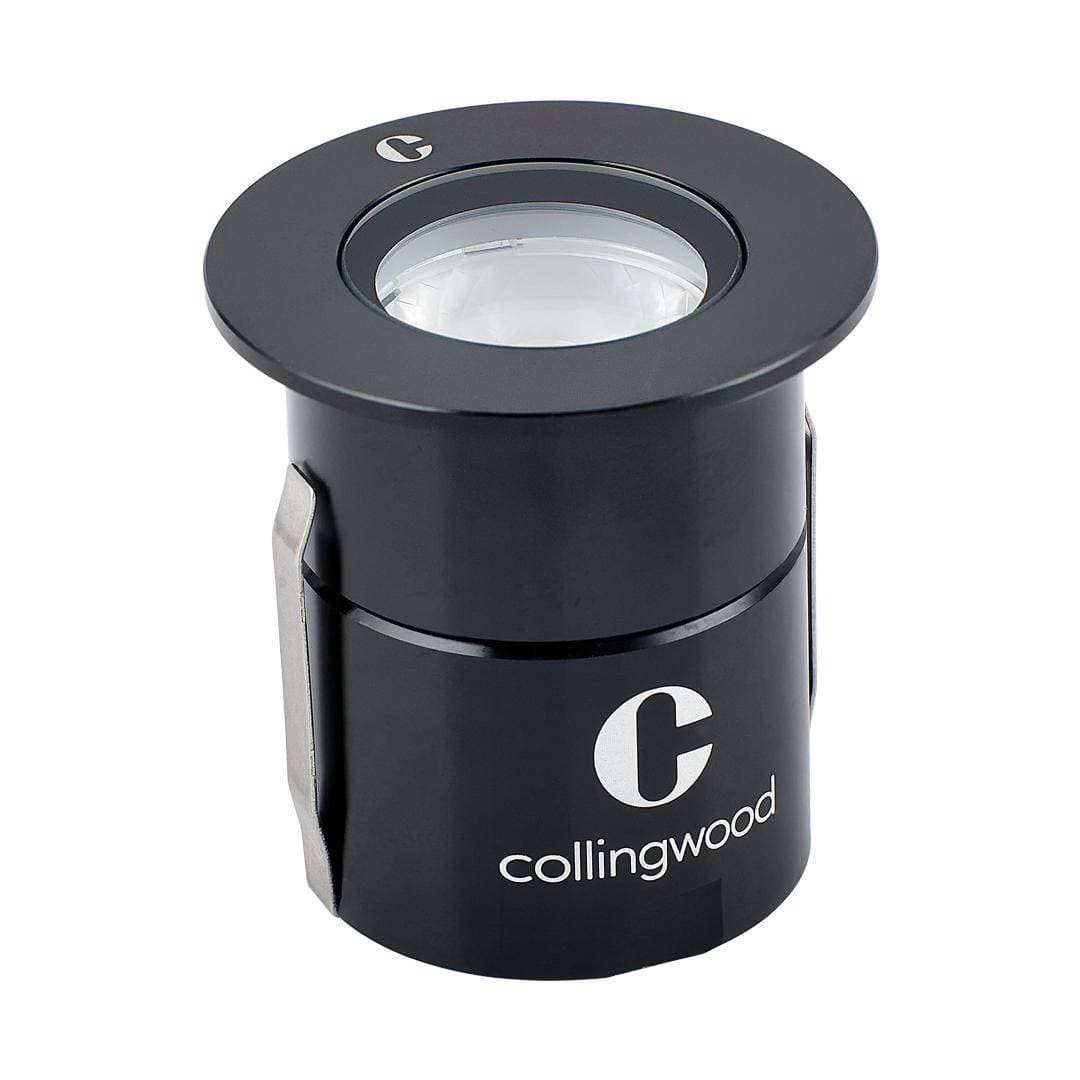

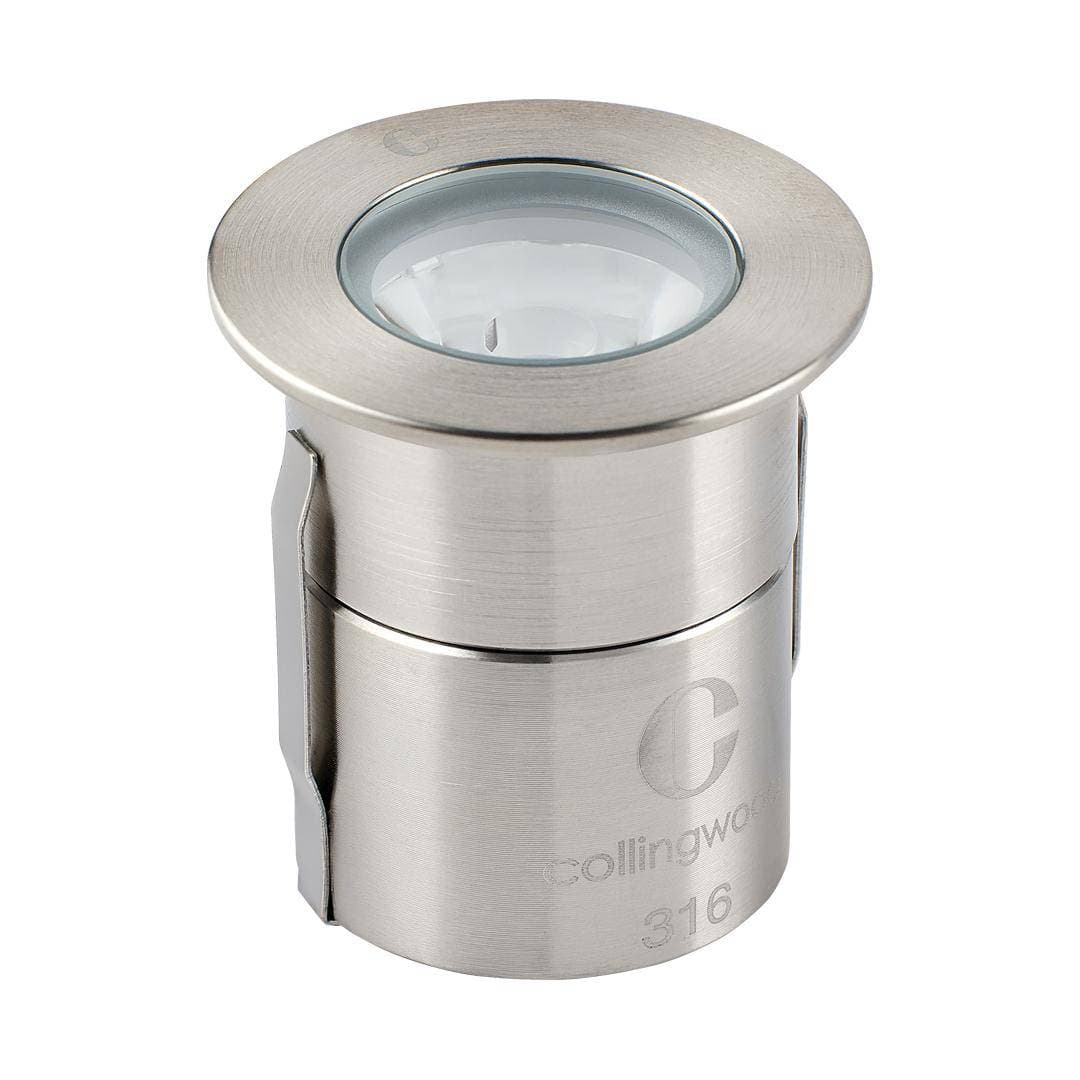

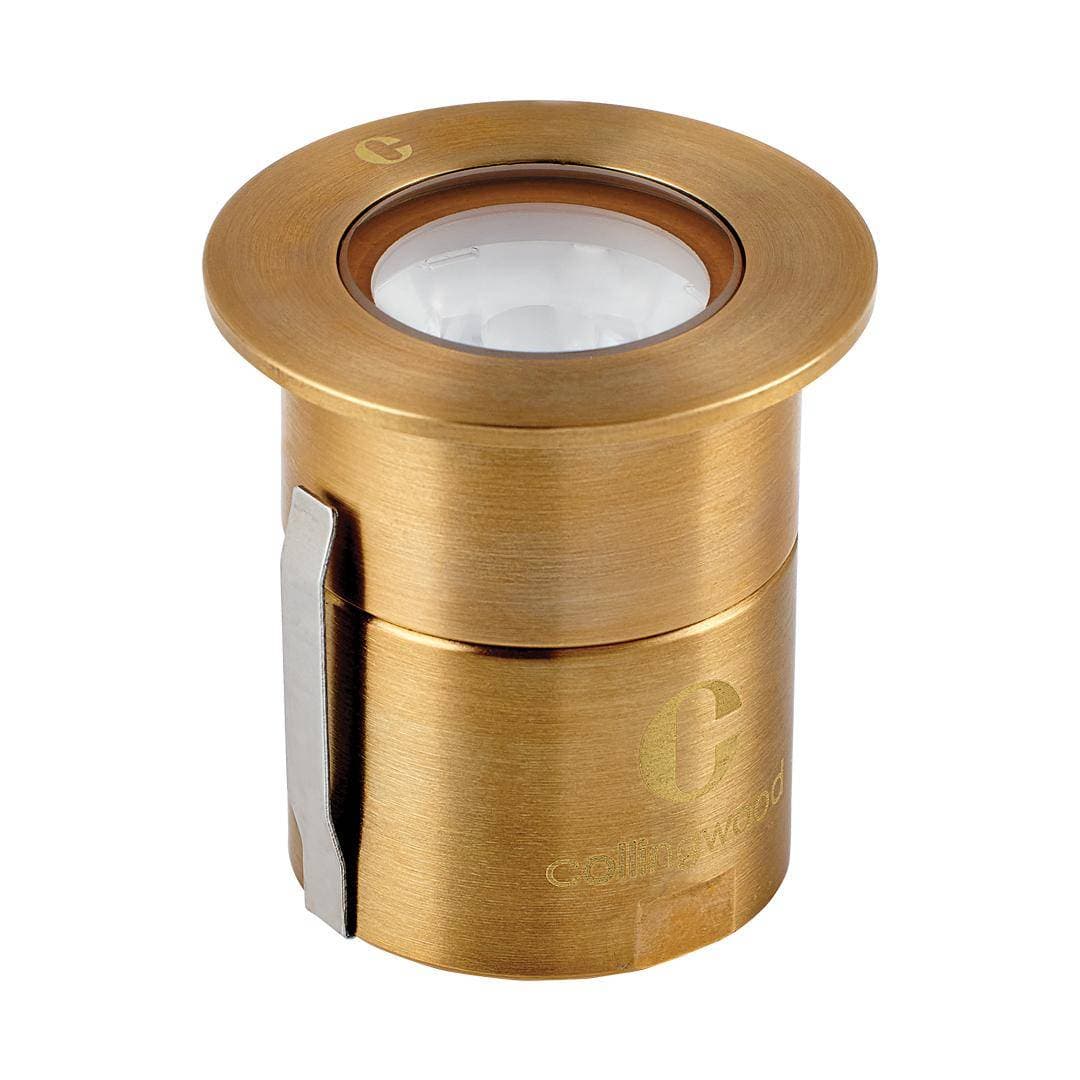

GL019 Round

The newly upgraded GL019 modular ground light range includes a variety of options such as round, square, frosted, low glare, half moon, and ultra low glare to accommodate any installation or project. This LED-powered ground light is both discreet and powerful, making it ideal for decking areas, entrance halls, and pathways. Indoors or outdoors, the IP68 Stainless Steel finish ground light will provide flawless performance for many years of maintenance-free operation.

IP68 perfect for internal or external applications
Coastal protected
IK06 impact protection - walk over (Stainless Steel only)
Supplied complete with installation tube
Low voltage ground light
SDCM3 ensuring uniform light appearance and consistency
CRI 80 providing true colour appearance
Available in a new 2200K setting to create a warm and cosy environment with minimal disruption to natural habitat
Compact yet powerful fitting
Robust cable for outdoor use
Available in an array of colours

Walk Over / Drive Over

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability	Dimmable Option
GL019RSS27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RAB27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Antique brass	Brass	40	40	Not adjustable	None

Walk Over / Drive Over

Beam Angle

CCT Range

Colour / Finish

Wattage / Lumens

Code	CRI	IP Rating	Cut Out	Beam Angle	Base Shape	Wattage Range	CCT Range	Lumens Range	Colour / Finish	Body Material	Width	Length	Adjustability	Dimmable Option
GL019RSS27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS40S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RSS40F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	4000K	60 - 234	Stainless Steel 316	Stainless Steel 316	40	40	Not adjustable	None
GL019RAB27S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB30S	CRI>80	IP68	33mm	12°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB27F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	2700K	51 - 169	Antique brass	Brass	40	40	Not adjustable	None
GL019RAB30F	CRI>80	IP68	33mm	38°	Round	0.4W / 0.7W / 1W / 1.5W / 2.2W	3000K	54 - 210	Antique brass	Brass	40	40	Not adjustable	None
