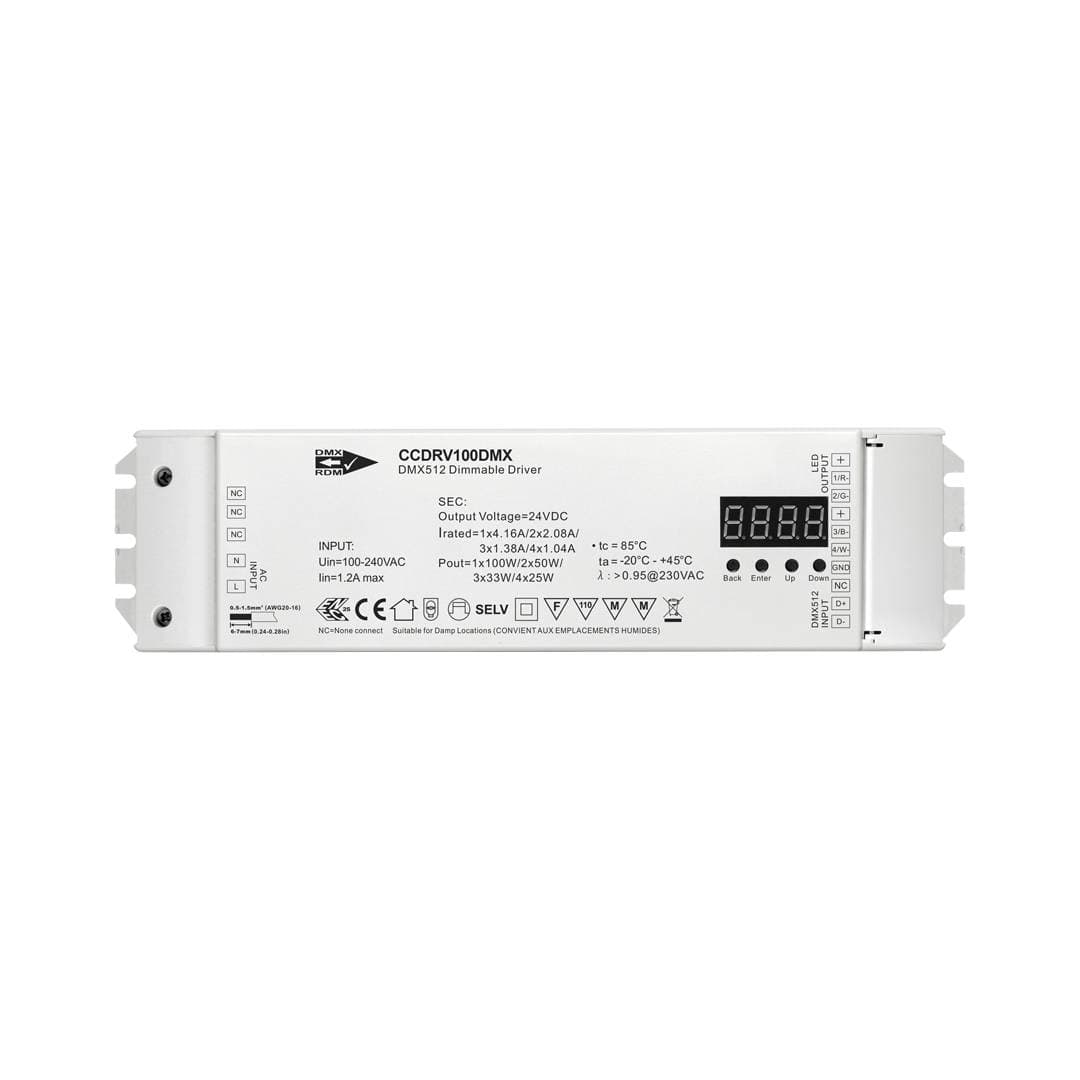

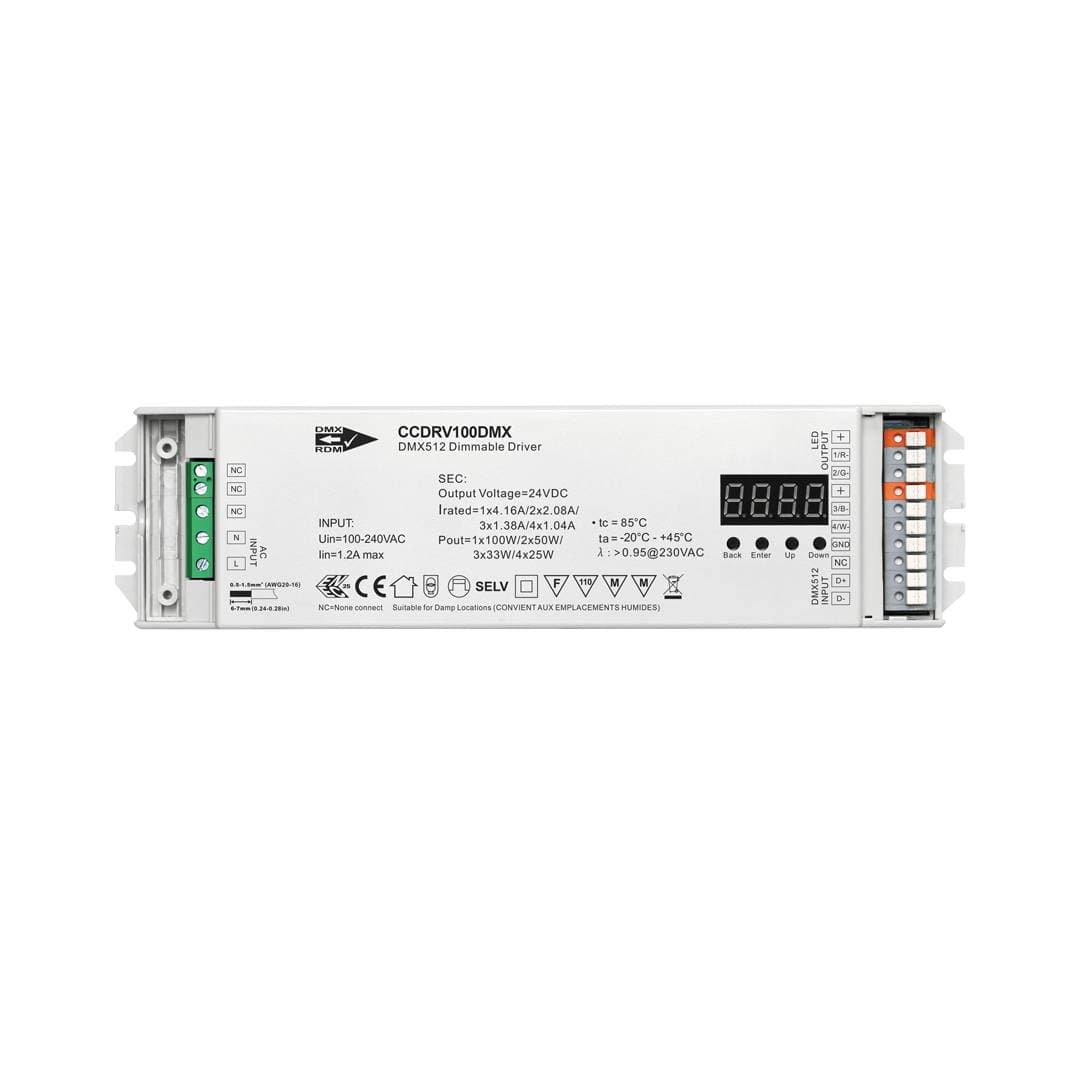

CCDRV100DMX

The all-in-one driver for RGBW/RGB systems makes it easier to control and power your LED colour change project's. This versatile driver delivers constant 24V DC power to your RGB or RGBW lights and supports DMX signal reception for advanced control. It has four individual channels for red, green, blue, and optional white, providing maximum colour flexibility. Multiple control inputs enable easy integration with your preferred control system.

All-in-one Driver for RGBW/RGB Systems
24v DC Output
Receives DMX signal
4 channel 24V DC Constant Voltage Output
Multiple control inputs
Max. 4.16A/CH, CH1+CH2+CH3+CH4=4.16A

Product Data

Code	Warranty	IP Rating	Input	Electric Class	Colour / Finish	Wattage Range	Dimmable Option	Downloads
CCDRV100DMX	5 years	IP20	220-240V AC	II	White	100W Max.	None
