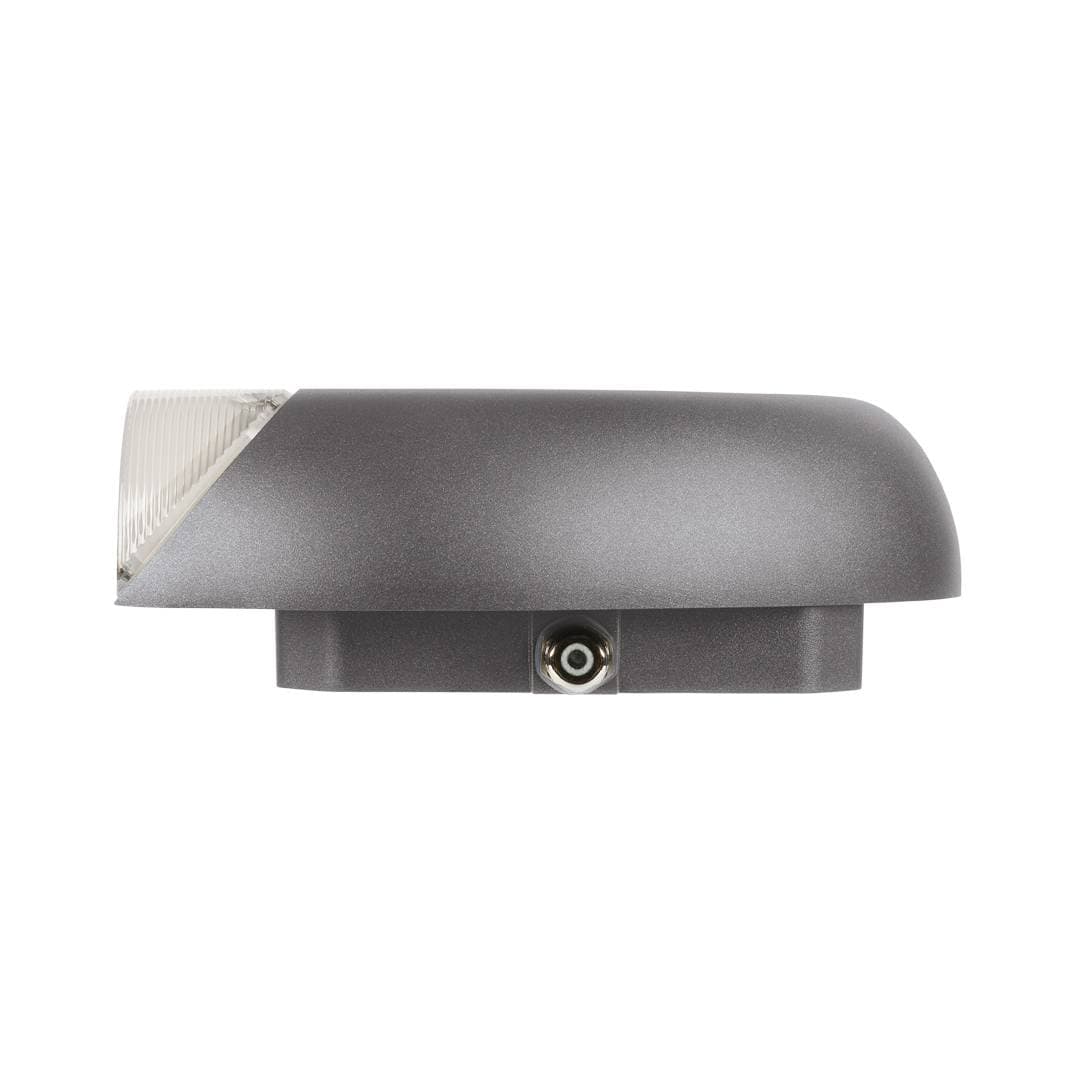

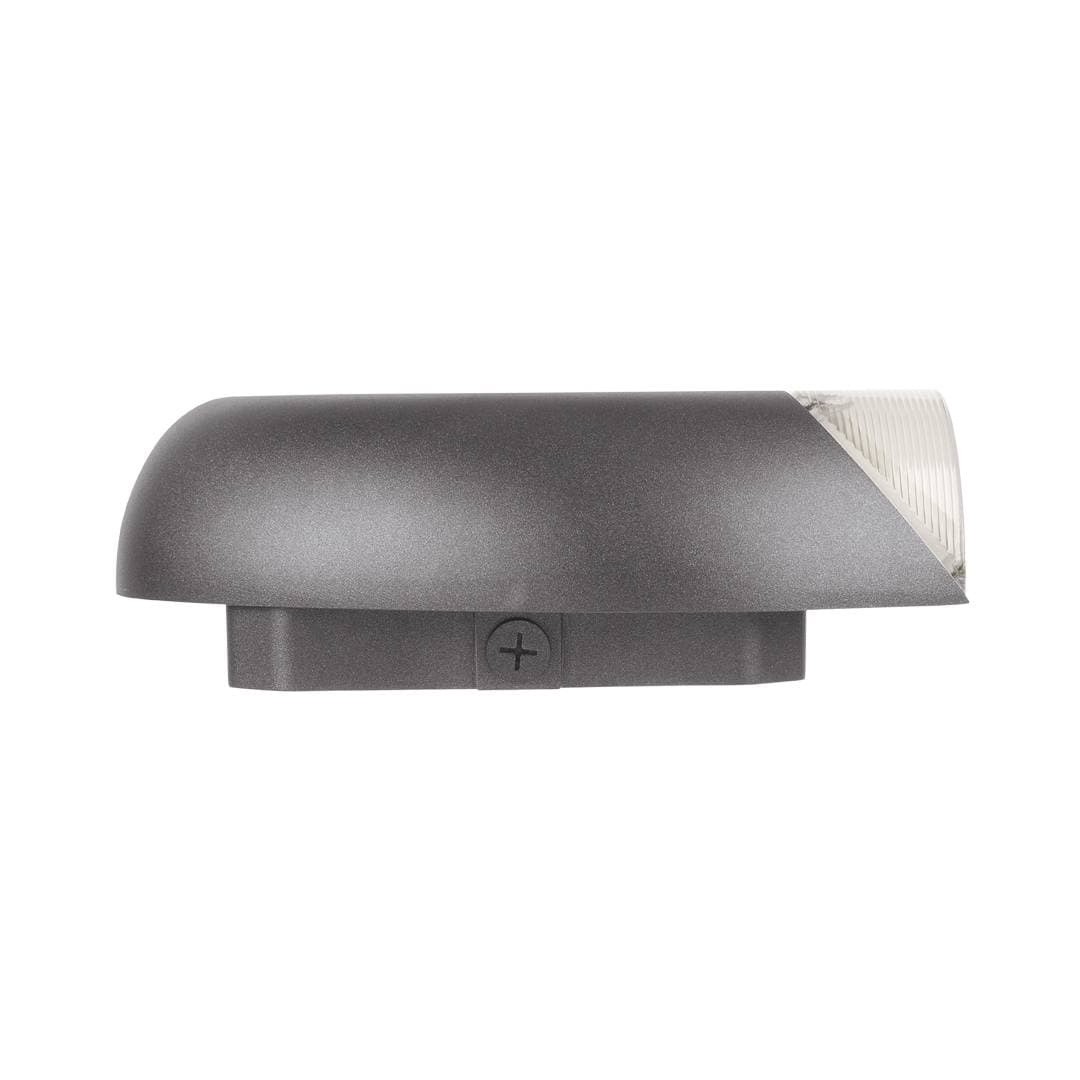

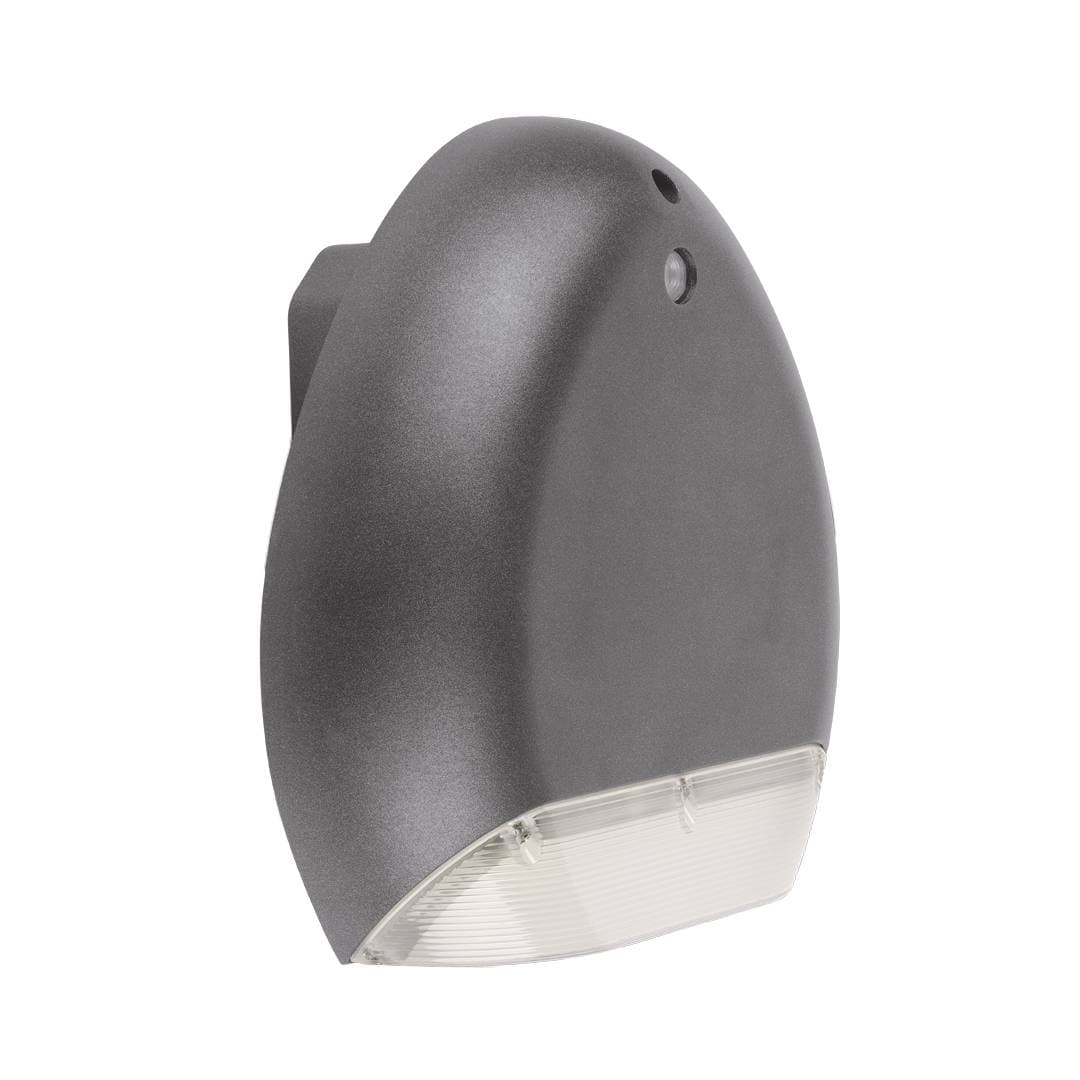

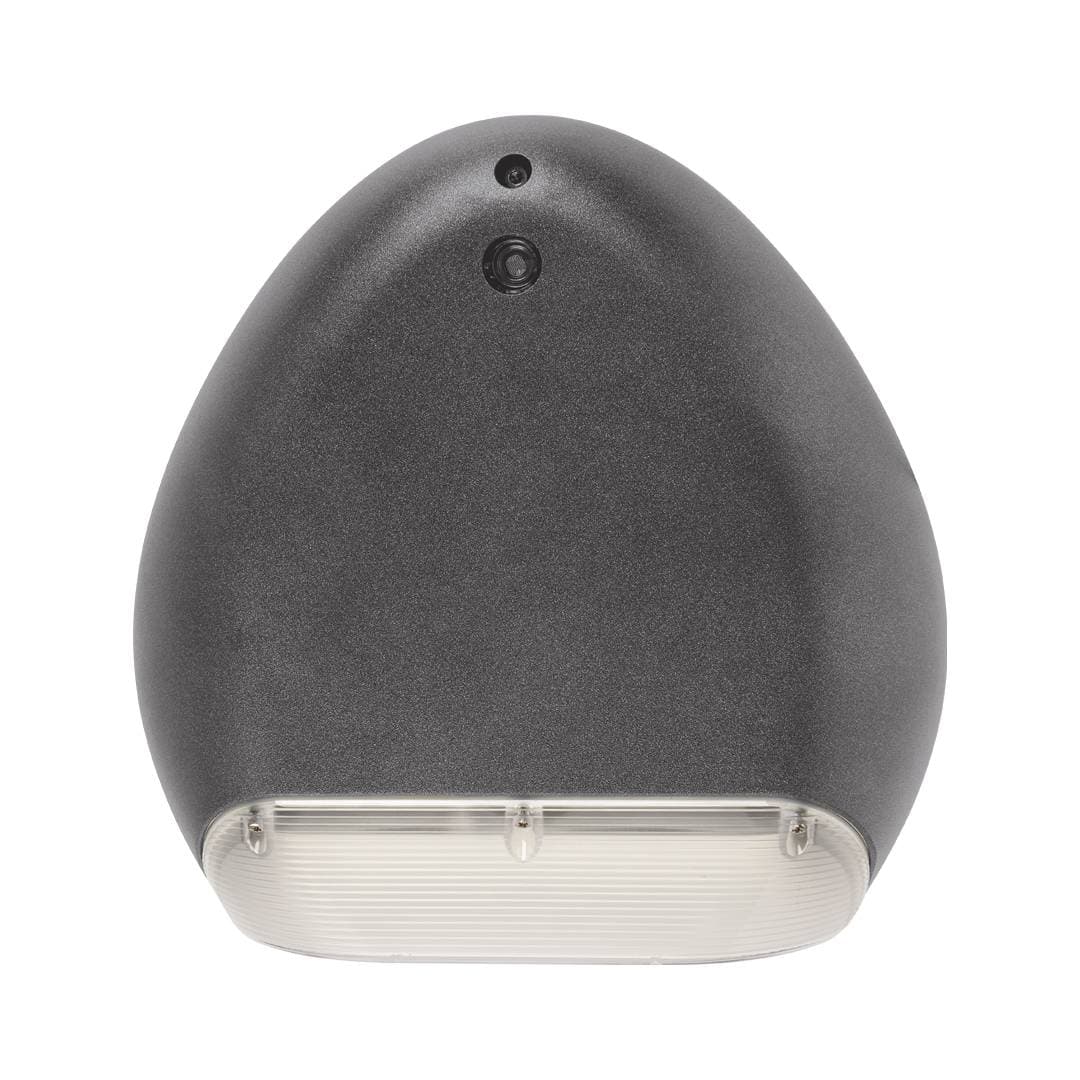

Arc Wallpack

CCT switchable between 3000K, 4000K & 5000K
Up to 165lm/W efficacy
Integral photocell as standard
Designed to illuminate a pathway efficiently and safely, whilst preserving the habitat
Highly energy efficient with up to 165 luminaire lumens per watt for low total cost over luminaire’s lifetime
Anti-glare optical control designed to reduce upward sky glow
Set to 3000K as standard (CCT switchable) to minimise low blue light content
Integral photocell to switch the light ON at dusk and OFF at dawn
Slim 97mm profile integrates discreetly to the building architecture
Removeable backplate to aid fast installation
Part of the ‘Collingwood in colour’ collection anthracite family.

Emergency Option

Code	CRI	IP Rating	Sensor Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Emergency Option	Dimmable Option	Downloads
ARA1N	CRI>80	IP66	Photocell	ADC12 Aluminium Alloy\|PC\|Stainless Steel 304	Wall	98*114°	Anthracite	10W	3000K / 4000K / 5000K	1650	293	289	None	None
ARA1NE	CRI>80	IP66	Photocell	ADC12 Aluminium Alloy\|PC\|Stainless Steel 304	Wall	98*114°	Anthracite	10W	3000K / 4000K / 5000K	1650	293	289	Manual-Test	None

Accessories

Find the perfect product you are looking for.

Arc Spare Emergency Kit

Emergency Option

Code	CRI	IP Rating	Sensor Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Width	Length	Emergency Option	Dimmable Option	Downloads
ARA1N	CRI>80	IP66	Photocell	ADC12 Aluminium Alloy\|PC\|Stainless Steel 304	Wall	98*114°	Anthracite	10W	3000K / 4000K / 5000K	1650	293	289	None	None
ARA1NE	CRI>80	IP66	Photocell	ADC12 Aluminium Alloy\|PC\|Stainless Steel 304	Wall	98*114°	Anthracite	10W	3000K / 4000K / 5000K	1650	293	289	Manual-Test	None
