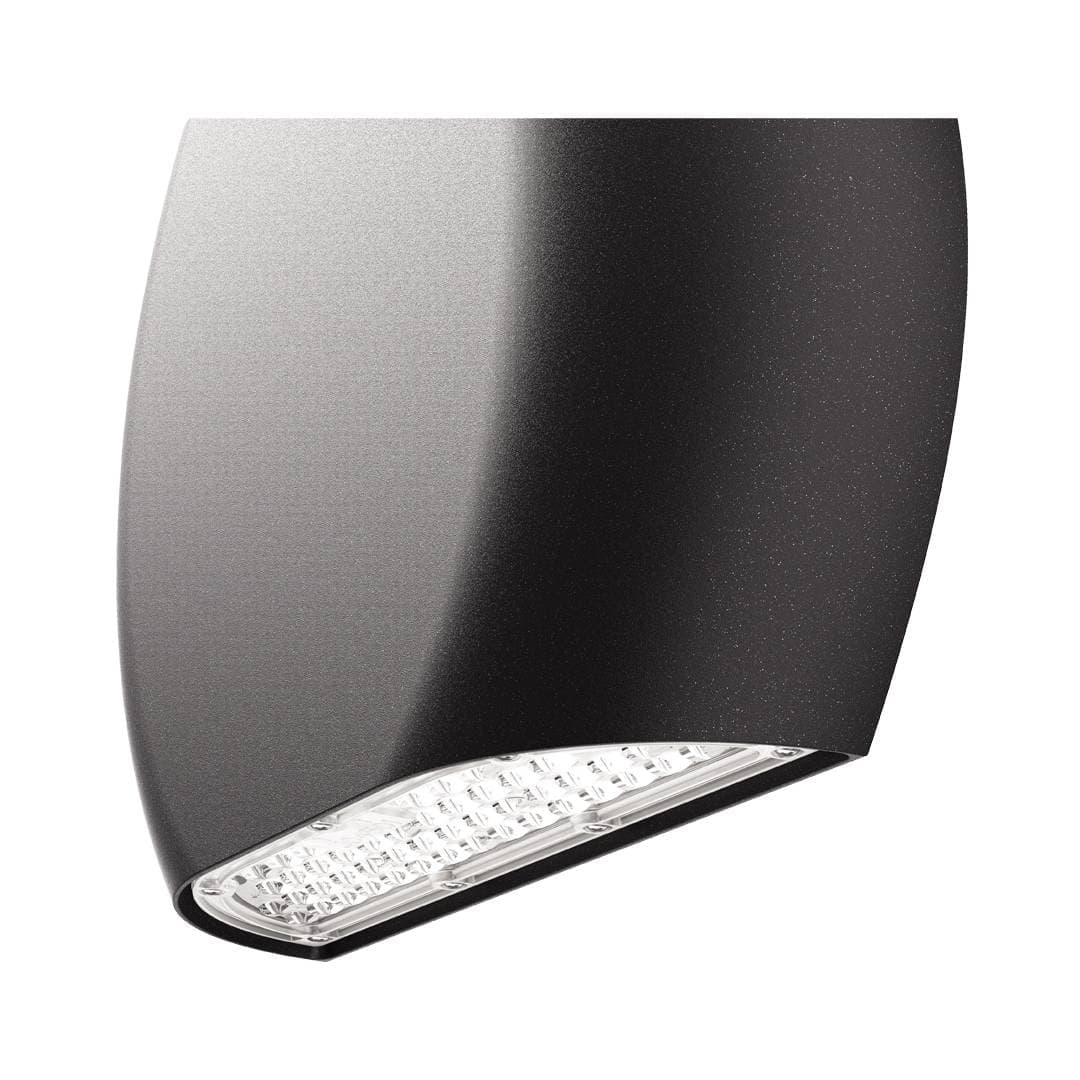

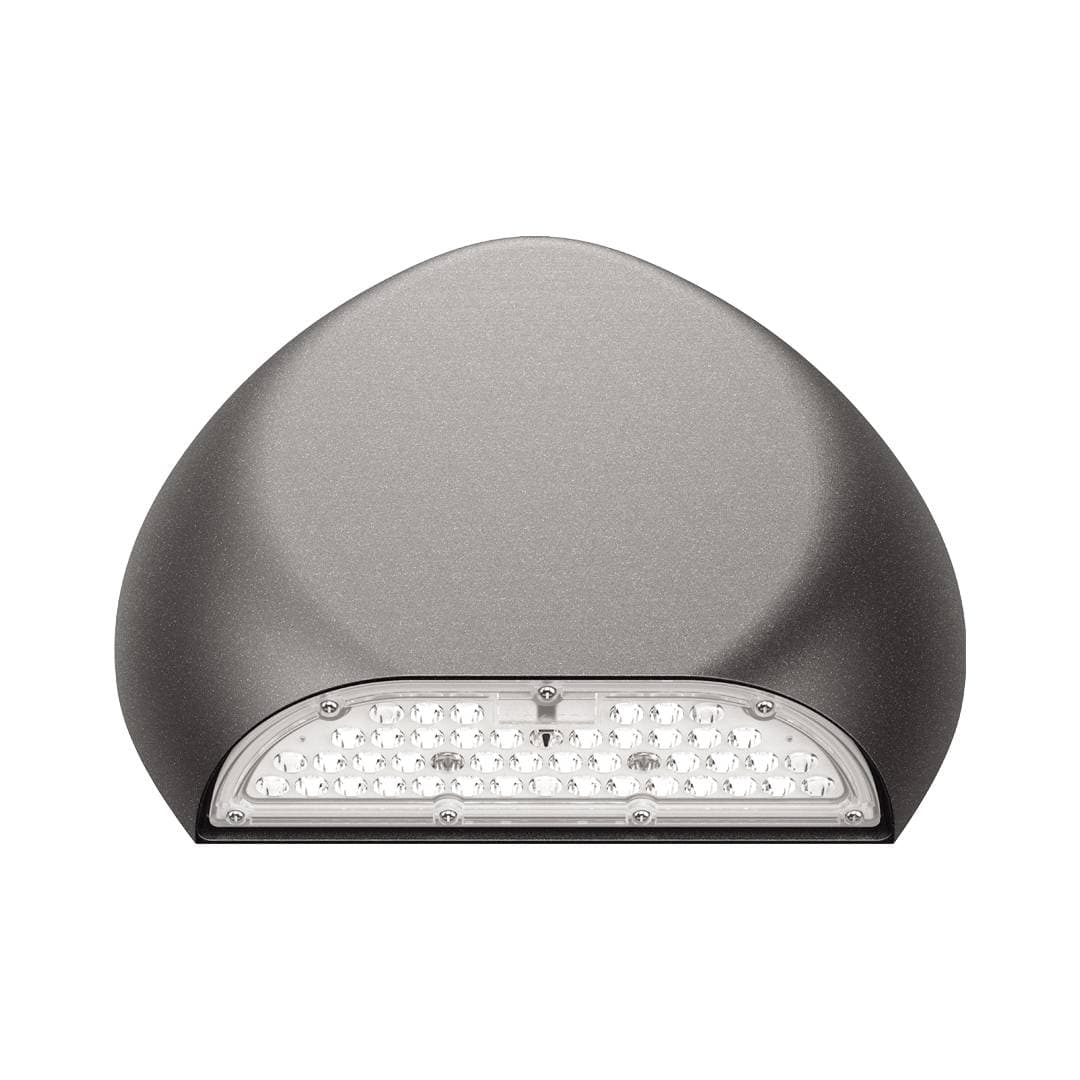

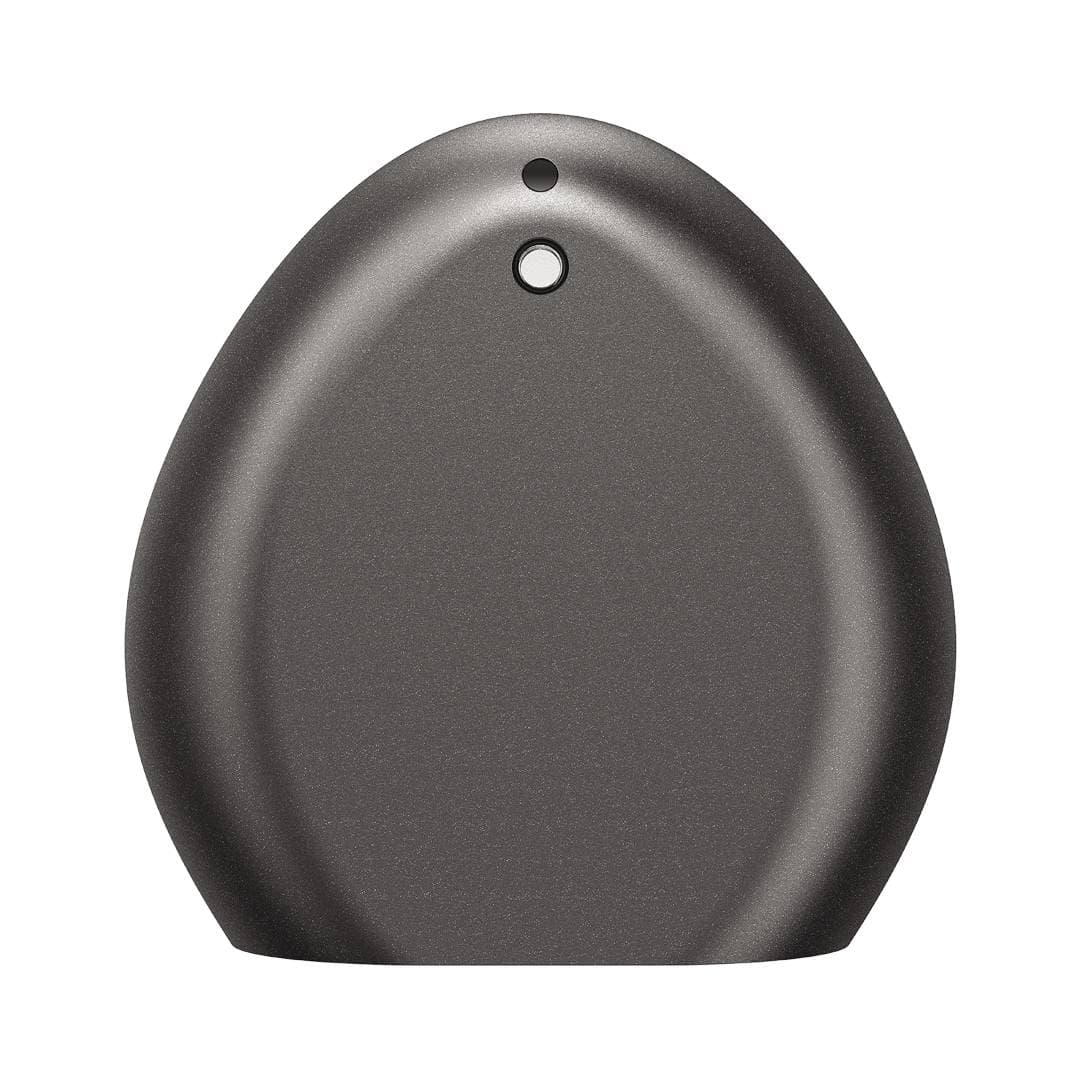

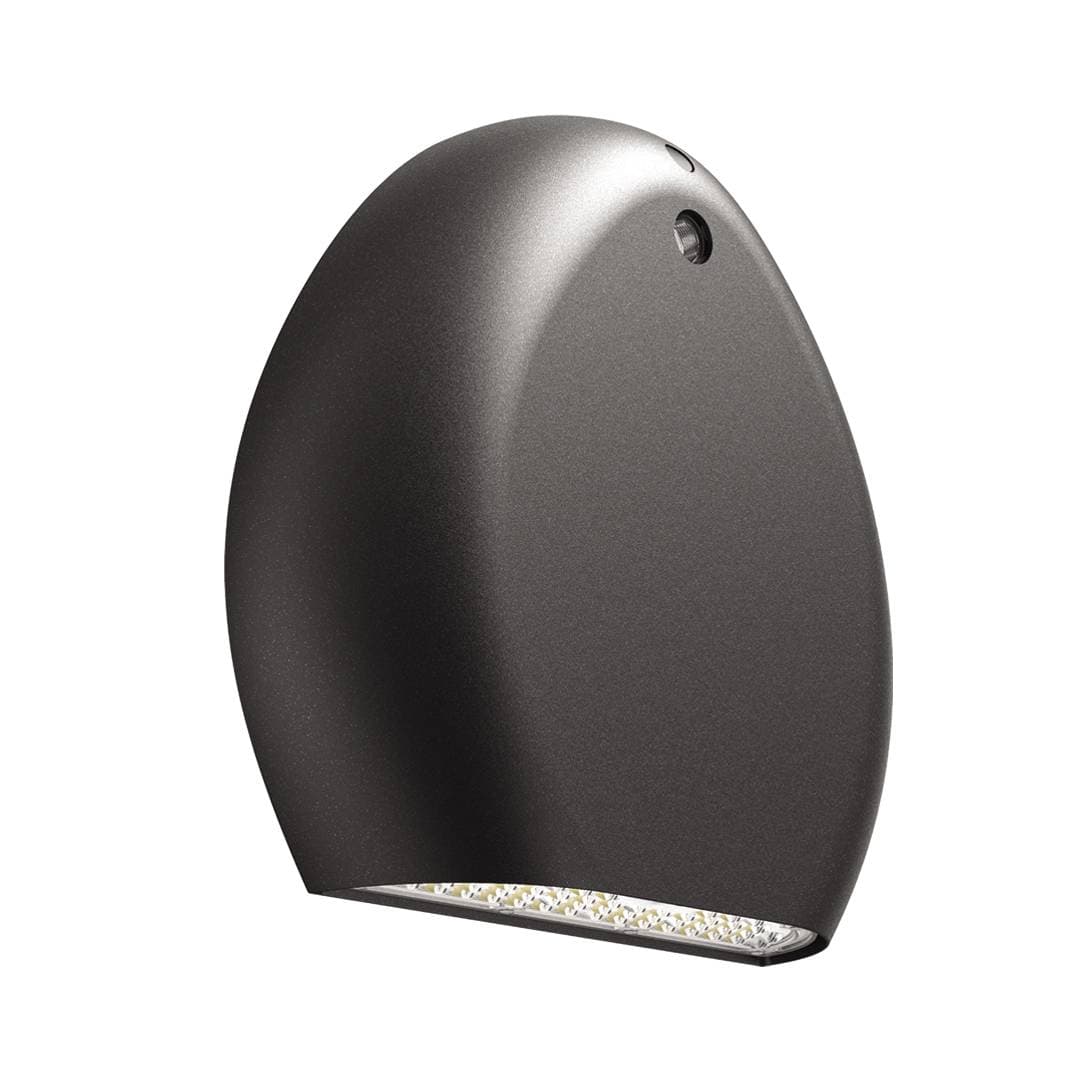

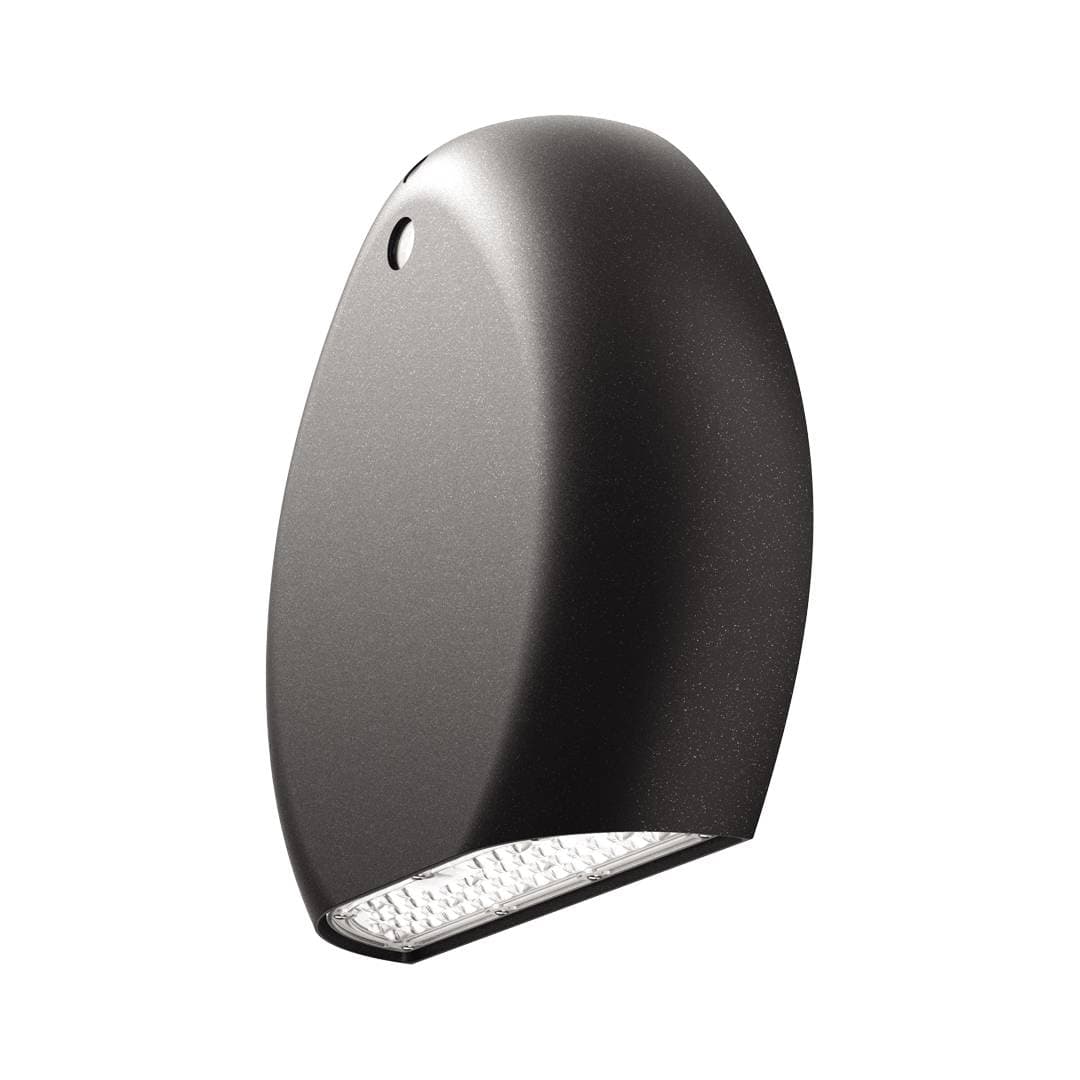

Arc Pro CSP

CCT switchable between 2700K & 3000K (default)
Wattage Switchable between 6,8,10,12, & 15W
Integral photocell as standard
Custom Optical lens design providing excellent forward throw
0% ULOR (Upward Light Output Ratio) for avoid light pollution
Suitable for coast - C5-M corrosion classification (ISO 9223 : 2012)
Designed to illuminate a pathway efficiently and safely, whilst preserving the habitat
Integral photocell to switch the light ON at dusk and OFF at dawn

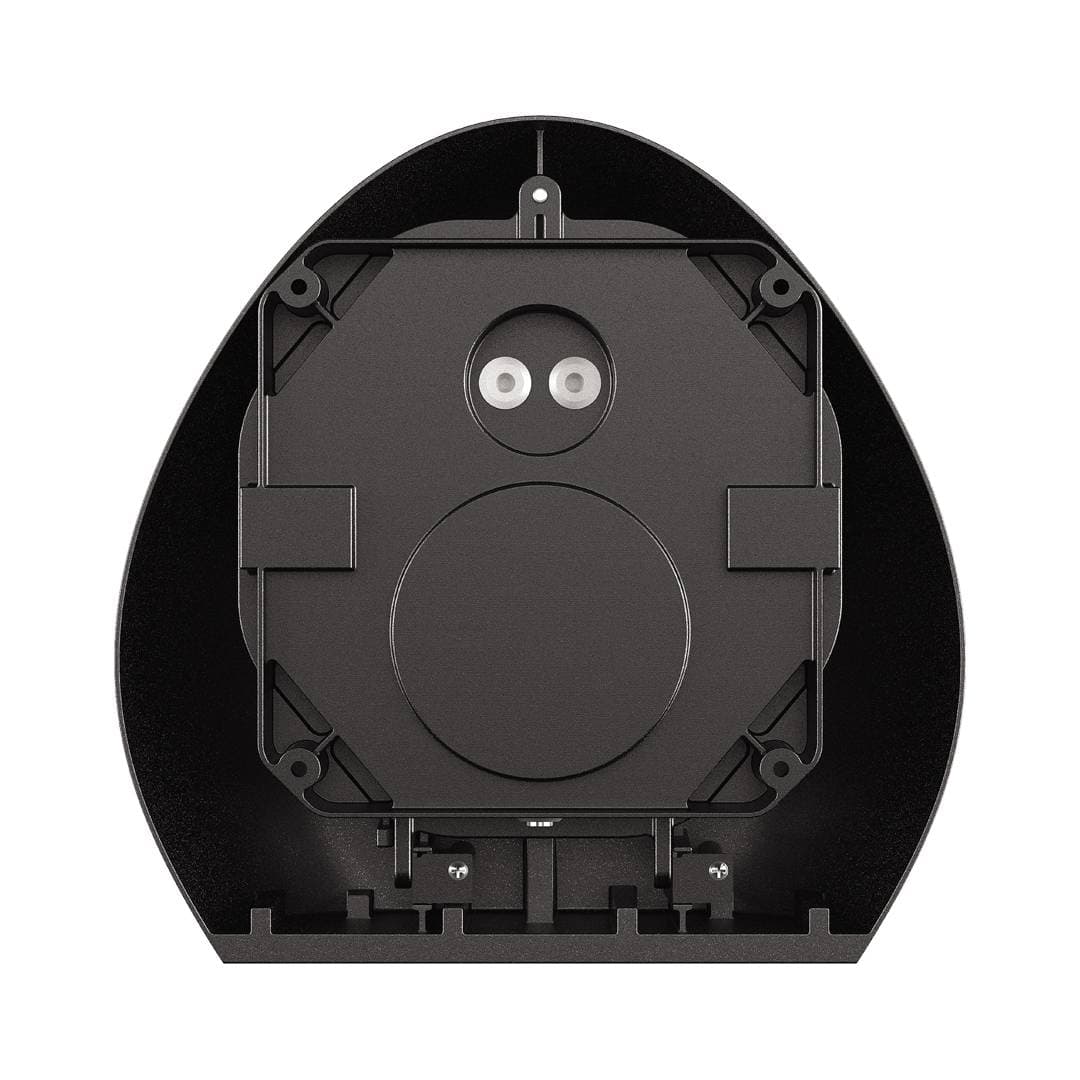

Removeable backplate to aid fast installation
Lumen output in emergency mode is 300lm for both 2700K & 3000K

Emergency Option

Code	CRI	IP Rating	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Emergency Option	Width	Length	Downloads
ARPB1N	CRI>80	IP66	Photocell	None	Double Powder Coated ADC12 Aluminium Alloy\|PC\|Stainless Steel 316	Wall	140° x 70°	Black	6-8-10-12-15W	2700K / 3000K	850-1100-1400-1650-2000	None	293	292
ARPB1NE	CRI>80	IP66	Photocell	None	Double Powder Coated ADC12 Aluminium Alloy\|PC\|Stainless Steel 316	Wall	140° x 70°	Black	6-8-10-12-15W	2700K / 3000K	850-1100-1400-1650-2000	Manual-Test	293	292

Emergency Option

Code	CRI	IP Rating	Sensor Option	Dimmable Option	Body Material	Mounting Type	Beam Angle	Colour / Finish	Wattage Range	CCT Range	Lumens Range	Emergency Option	Width	Length	Downloads
ARPB1N	CRI>80	IP66	Photocell	None	Double Powder Coated ADC12 Aluminium Alloy\|PC\|Stainless Steel 316	Wall	140° x 70°	Black	6-8-10-12-15W	2700K / 3000K	850-1100-1400-1650-2000	None	293	292
ARPB1NE	CRI>80	IP66	Photocell	None	Double Powder Coated ADC12 Aluminium Alloy\|PC\|Stainless Steel 316	Wall	140° x 70°	Black	6-8-10-12-15W	2700K / 3000K	850-1100-1400-1650-2000	Manual-Test	293	292
